Komatsu WA470-5 Wheel Loader Head Cover(#322166-) Parts
Komatsu WA470-5 head cover(#322166-) parts for machine serial 70001-UP (OVERSEAS VERSION). View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: SAA6D125E-3A-8W S/N 310314-UP / Engine / Head Cover(#322166-).
Checking current purchase options...

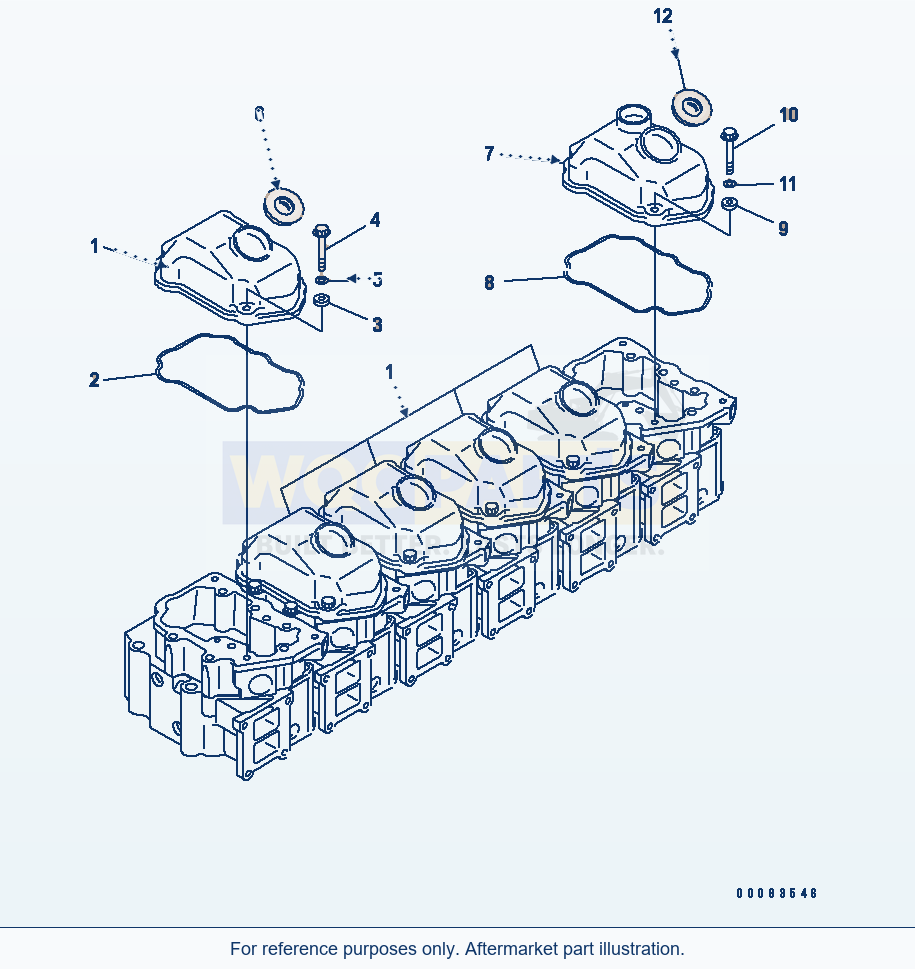

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 14 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 2 | COVER ASS'YSN: 322166-UP | 5 | Request quote | |||
| 1 | COVER,HEAD, NO.1,2,3,4,5SN: 322166-UP | 1 | Request quote | |||
| 2 | GASKET (K1)SN: 322166-UP, KIT-FLAG: S | 1 | View product ↗ | |||
| 3 | RUBBER (K1)SN: 322166-UP, KIT-FLAG: S | 10 | View product ↗ | |||
| 4 | BOLTSN: 322166-UP | 10 | Request quote | |||
| 5 | WASHERSN: 322166-UP | 10 | View product ↗ | |||
| 6 | SEAL (K1)SN: 322166-UP, KIT-FLAG: S | 5 | View product ↗ | |||
| 10 | COVER ASS'YSN: 322166-UP | 1 | Request quote | |||
| 7 | COVER,HEAD, NO.6SN: 310001-UP | 1 | Request quote | |||
| 8 | GASKET (K1)SN: 322166-UP, KIT-FLAG: S | 1 | View product ↗ | |||
| 9 | RUBBER (K1)SN: 322166-UP, KIT-FLAG: S | 2 | View product ↗ | |||
| 10 | BOLTSN: 322166-UP | 2 | Request quote | |||
| 11 | WASHERSN: 322166-UP | 2 | View product ↗ | |||
| 12 | SEAL (K1)SN: 322166-UP, KIT-FLAG: S | 1 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA470-5 Wheel Loader Head Cover(#322166-) Parts
Use the Komatsu WA470-5 Wheel Loader Head Cover(#322166-) Parts listing to identify aftermarket replacement parts within the engine section. This wheel loader application is listed for machine serial 70001-UP (OVERSEAS VERSION); the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 14 listed part occurrences, including cover ass'y (reference 6156-11-8500), cover,head, no.1,2,3,4,5 (reference 6156-11-8110) and gasket (k1) (reference 6156-11-8810). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
The source engine application is SAA6D125E-3A-8W (engine serial 310314-UP). Match that engine identification as well as the machine serial range; the general machine model is not a substitute for engine-specific applicability.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
