Komatsu WA470-5 Starting Motor Mounting (7.5Kw)(#310001-) Parts
Komatsu WA470-5 starting motor mounting (7.5kw)(#310001-) parts for machine serial 70001-UP (OVERSEAS VERSION). View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: SAA6D125E-3A-8W S/N 310314-UP / Engine / Starting Motor Mounting (7.5Kw)(#310001-).
Checking current purchase options...

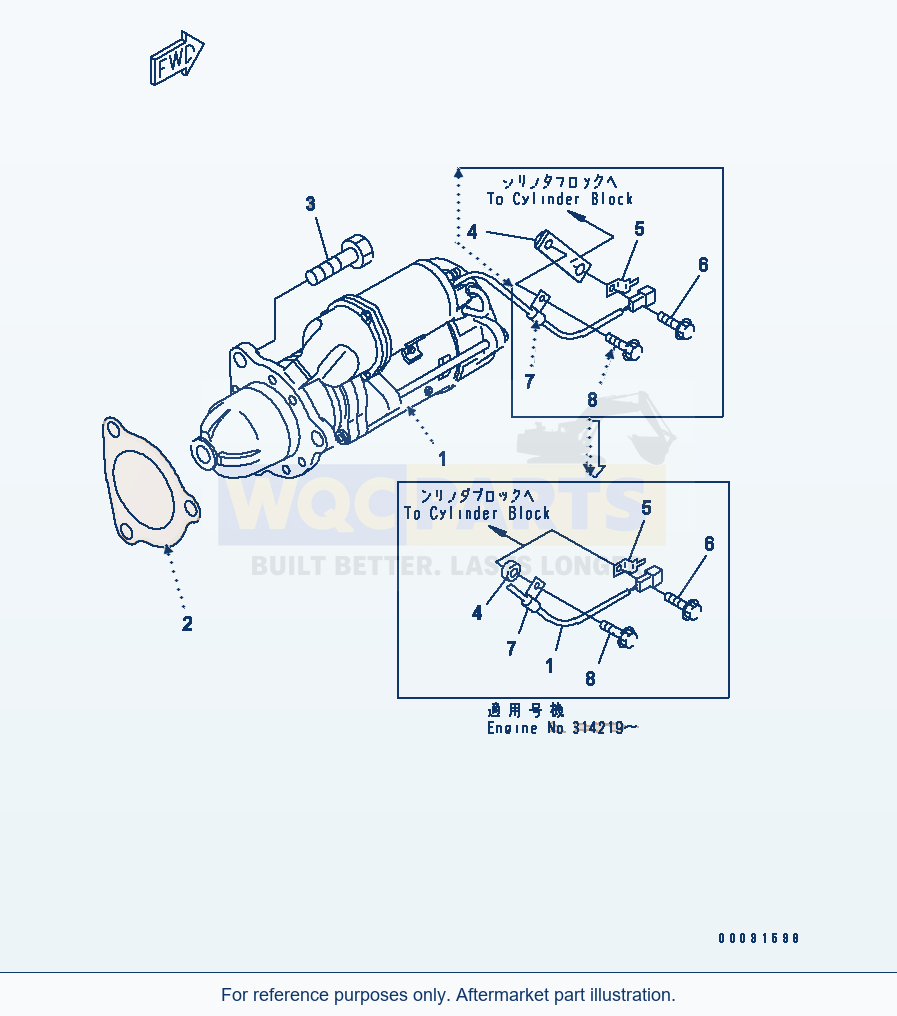

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 12 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | STARTING MOTOR ASS'Y,(7.5KW) (SEE FIG.A6210-C3F8)SN: 310962-UP | 1 | View product ↗ | |||
| 1 | STARTING MOTOR ASS'Y,(7.5KW) (SEE FIG.A6210-B3F8)SN: 310001-310961 | The part specified in the line above can be used instead of this part | 1 | View product ↗ | |||
| 1 | STARTING MOTOR ASS'Y,(7.5KW) (SEE FIG.A6210-B3F8)SN: (310001-310251) | This shows a discontinued part. The part specified in the above line is supplied instead. | 1 | View product ↗ | |||
| 2 | GASKET (K2)SN: 310001-UP, KIT-FLAG: S | 1 | View product ↗ | |||
| 3 | BOLTSN: 310001-UP | 3 | Request quote | |||
| 4 | BOSSSN: 314219-UP | 1 | Request quote | |||
| 4 | PLATESN: 310001-314218 | The part specified in the line above can be used instead of this part | 1 | Request quote | |||
| 5 | CLIPSN: 310001-UP | 1 | Request quote | |||
| 6 | BOLTSN: 310001-UP | 1 | Request quote | |||
| 7 | CLIPSN: 310001-UP | 1 | Request quote | |||
| 8 | BOLTSN: 314219-UP | 1 | View product ↗ | |||
| 8 | BOLTSN: 310001-314218 | The part specified in the line above can be used instead of this part | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA470-5 Starting Motor Mounting (7.5Kw)(#310001-) Parts
Use the Komatsu WA470-5 Starting Motor Mounting (7.5Kw)(#310001-) Parts listing to identify aftermarket replacement parts within the engine section. This wheel loader application is listed for machine serial 70001-UP (OVERSEAS VERSION); the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 12 listed part occurrences, including starting motor ass'y,(7.5kw) (see fig.a6210-c3f8) (reference 600-813-6632), starting motor ass'y,(7.5kw) (see fig.a6210-b3f8) (reference 600-813-6631) and starting motor ass'y,(7.5kw) (see fig.a6210-b3f8) (reference 600-813-6630). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
The source engine application is SAA6D125E-3A-8W (engine serial 310314-UP). Match that engine identification as well as the machine serial range; the general machine model is not a substitute for engine-specific applicability.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
