Komatsu WA470-5 Marks And Plates (English)(#80634-) Parts
Komatsu WA470-5 marks and plates (english)(#80634-) parts for machine serial 70001-UP (OVERSEAS VERSION). View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Marks And Plates / Marks And Plates (English)(#80634-).
Checking current purchase options...

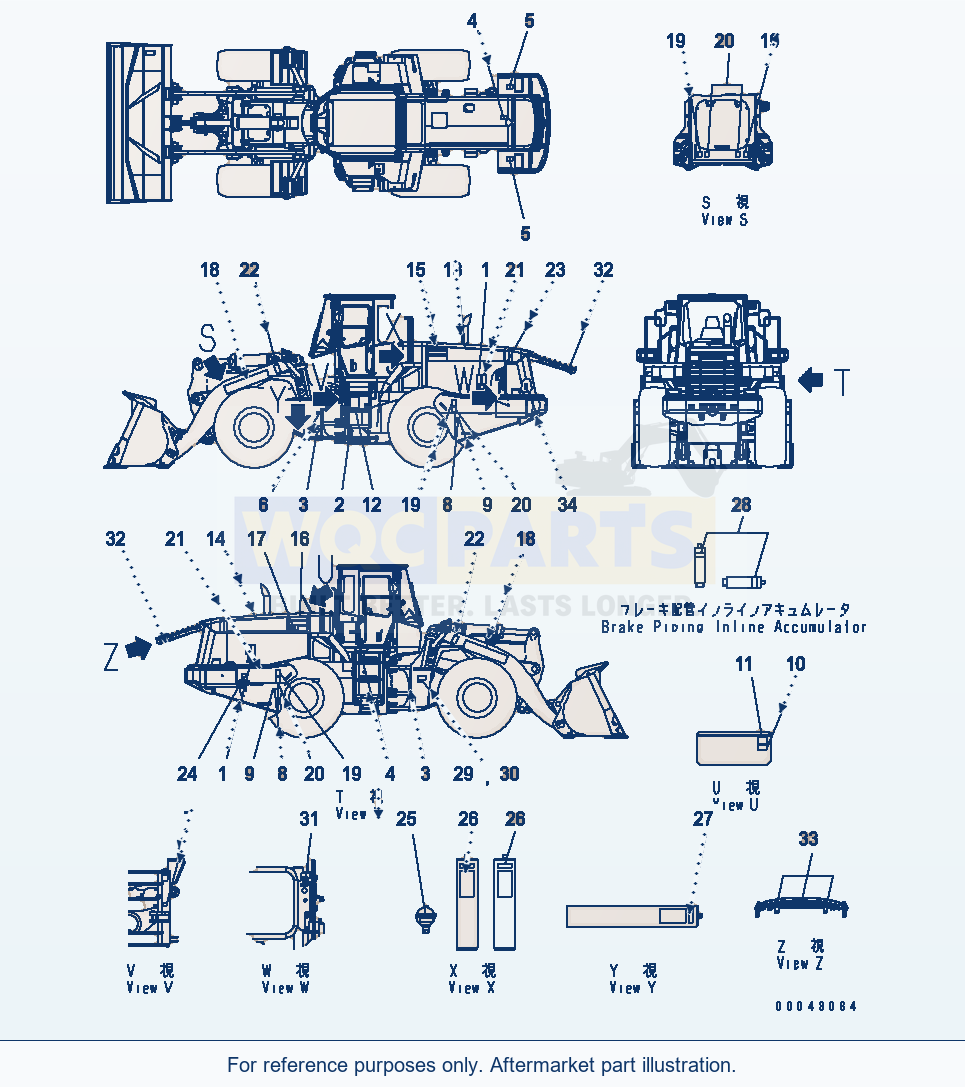

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 25 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | PLATE KITSN: 70001-UP | 1 | Request quote | |||
| 8 | PLATESN: 70001-UP | 1 | Request quote | |||
| 12 | OIL CHARTSN: 70001-UP | 1 | Request quote | |||
| 13 | PLATE,WA470 (L.H.)SN: 70001-UP | 1 | Request quote | |||
| 14 | PLATE,WA470 (R.H.)SN: 70001-UP | 1 | Request quote | |||
| 15 | PLATE, MARK,L.H.SN: 70001-UP | 1 | Request quote | |||
| 16 | PLATE, MARK,R.H.SN: 70001-UP | 1 | Request quote | |||
| 17 | PLATE,AIR CLEANER LOCKSN: 70001-UP | 1 | Request quote | |||
| 18 | PLATE, MARK,KOMATSUSN: 70001-UP | 2 | Request quote | |||
| 19 | MARK,HANDLINGSN: 80634-UP | 4 | Request quote | |||
| 20 | MARK,HANDLINGSN: 80634-UP | 4 | Request quote | |||
| 21 | PLATE, SAFETY,KEEP A SAFE DISTANCESN: 70001-UP | 2 | Request quote | |||
| 22 | PLATE, SAFETY,KEEP OUTSN: 70001-UP | 2 | Request quote | |||
| 23 | PLATE, OPERATING,AFTER COOLER ROCKSN: 70001-UP | 1 | Request quote | |||
| 24 | PLATE, CAUTIONSN: 70118-UP | 1 | Request quote | |||
| 25 | PLATE, SAFETY,PPC ACCUMULATORSN: 70001-UP | 1 | Request quote | |||
| 26 | PLATE, SAFETY,BRAKE ACCUMURATORSN: 70001-UP | 2 | Request quote | |||
| 27 | PLATE, SAFETY,ECSS ACCUMULATORSN: 70001-UP | 1 | Request quote | |||
| 28 | PLATE, SAFETY,BRAKE ACCUMULATORSN: 70001-UP | 2 | Request quote | |||
| 29 | PLATE, NAME,(LIMITED SUPPLY)SN: 70175-UP | This part cannot be supplied as an individual part. It is supplied as an assembly. It however is supplied as an individual part by authorized distributors only. | 1 | Request quote | |||
| 30 | SCREWSN: 70001-UP | 4 | Request quote | |||
| 31 | PLATE, OPERATING,HYDRAULIC COOLER LOCKSN: 70001-UP | 1 | Request quote | |||
| 32 | PLATE, CAUTIONSN: 70001-UP | 2 | Request quote | |||
| 33 | PLATE, CAUTIONSN: 70001-UP | 3 | Request quote | |||
| 34 | PLATE, SAFETY,SAFETYSN: 70001-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 1 | Description: PLATE, SAFETY,REVOLUTION | QTY: 2 | OPTIONS: SN: 70001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 2 | Description: PLATE, SAFETY,SAFETY BAR | QTY: 1 | OPTIONS: SN: 70001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 3 | Description: PLATE, SAFETY,KEEP OUT OF WORKING AREA | QTY: 2 | OPTIONS: SN: 70001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 4 | Description: PLATE, SAFETY,HYDRAULIC TANK CAP | QTY: 2 | OPTIONS: SN: 70001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 5 | Description: PLATE, SAFETY,BATTERY | QTY: 2 | OPTIONS: SN: 70001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 6 | Description: PLATE,CYLINDER BOTTOM PIN | QTY: 1 | OPTIONS: SN: 70001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 7 | Description: PLATE,REAR AXLE PIVOT PIN | QTY: 1 | OPTIONS: SN: 70001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 8 | Description: PLATE,RADIATOR DRAIN | QTY: 1 | OPTIONS: SN: 70001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 9 | Description: PLATE,ENGINE OIL DRAIN | QTY: 1 | OPTIONS: SN: 70001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 10 | Description: PLATE,EMERGENCY BRAKE RELIESE | QTY: 1 | OPTIONS: SN: 70001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 11 | Description: PLATE,EMERGENCY BRAKE RELIESE | QTY: 1 | OPTIONS: SN: 70001-UP
Using Komatsu WA470-5 Marks And Plates (English)(#80634-) Parts
Use the Komatsu WA470-5 Marks And Plates (English)(#80634-) Parts listing to identify aftermarket replacement parts within the marks and plates section. This wheel loader application is listed for machine serial 70001-UP (OVERSEAS VERSION); the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 25 listed part occurrences, including plate kit (reference 426-93-21570), plate (reference 421-93-23351) and oil chart (reference 421-93-23571). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For identification and caution plates, compare the precise plate description and listed application. Do not substitute a plate solely because its shape or mounting position looks similar.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
