WA470-5 KOMTRAX GPRS Floor Parts Diagram 1/3 (81612-UP)

Use this assembly diagram and parts list to identify part numbers for WA470-5, 81612-UP; KOMTRAX (GPRS); source book 70001-UP. Check the source applicability and configuration, then use independently verified product matches where available or prepare a quote request.

WA470-5 | 81612-UP; KOMTRAX (GPRS); source book 70001-UP | Operator's Compartment and Control System / FLOOR (KOMTRAX GPRS) (1/3)(#81612-) (K4200-70E0)

Select the relevant source rows and enter requested quantities to prepare a quote request. Confirm machine and engine applicability before ordering. Nothing is sent automatically.

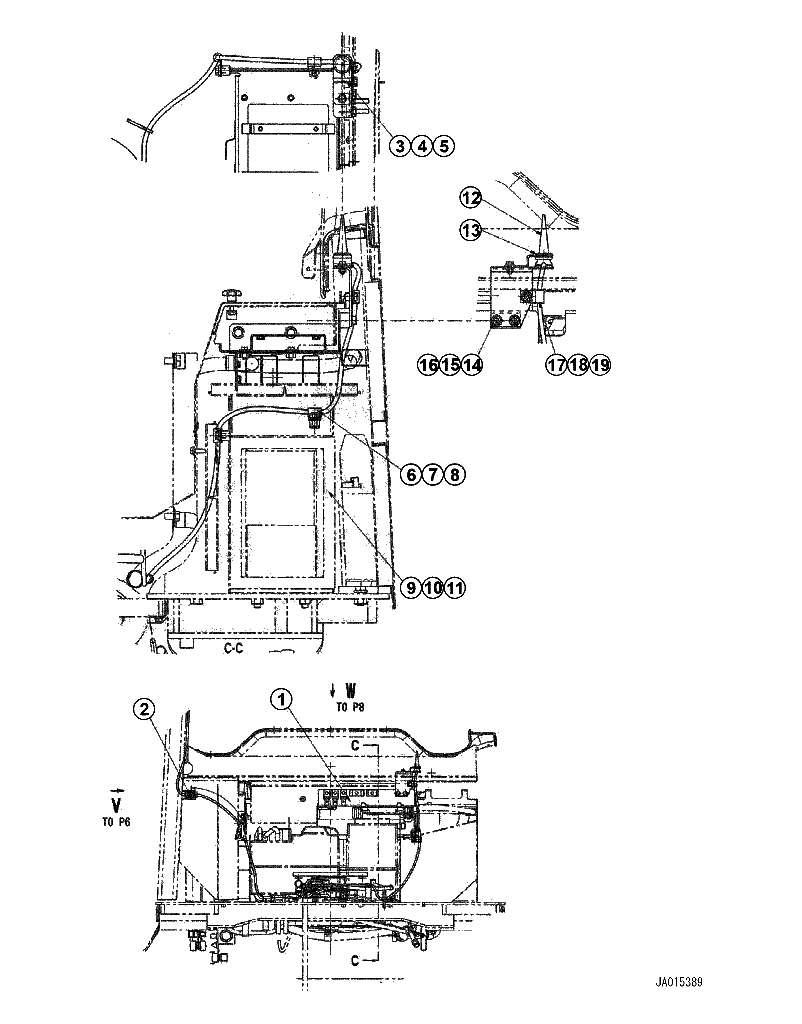

Assembly diagram

WHEEL LOADERS / WA470-5 S/N 70001-UP (KOMTRAX(GPRS)) / OPERATOR'S COMPARTMENT AND CONTROL SYSTEM / FLOOR (KOMTRAX GPRS) (1/3)(#81612-) (K4200-70E0)

Assembly parts

19 source rows

On smaller screens, scroll the parts table sideways to view all columns.

Sort Order	Part Number	Description	QTY	OPTIONS	Selection and details
1	421-54-33640	BRACKET	1	SN: 81612-UP	Request quote1 \| 421-54-33640 \| BRACKET \| SN: 81612-UP \| \|
2	08034-40521	BAND	1	SN: 81612-UP	Request quote2 \| 08034-40521 \| BAND \| SN: 81612-UP \| \|
3	20Y-53-14311	PLATE	1	SN: 81612-UP	Request quote3 \| 20Y-53-14311 \| PLATE \| SN: 81612-UP \| \|
4	01010-80616	BOLT	1	SN: 81612-UP	Request quote4 \| 01010-80616 \| BOLT \| SN: 81612-UP \| \|
5	01643-30623	WASHER	1	SN: 81612-UP	Request quote5 \| 01643-30623 \| WASHER \| SN: 81612-UP \| \|
6	04434-50810	CLIP	2	SN: 81612-UP	Request quote6 \| 04434-50810 \| CLIP \| SN: 81612-UP \| \|
7	01010-80816	BOLT	2	SN: 81612-UP	Request quote7 \| 01010-80816 \| BOLT \| SN: 81612-UP \| \|
8	01643-30823	WASHER	2	SN: 81612-UP	Request quote8 \| 01643-30823 \| WASHER \| SN: 81612-UP \| \|
9	421-07-33640	DUCT	1	SN: 81612-UP	Request quote9 \| 421-07-33640 \| DUCT \| SN: 81612-UP \| \|
10	01010-80616	BOLT	1	SN: 81612-UP	Request quote10 \| 01010-80616 \| BOLT \| SN: 81612-UP \| \|
11	01643-30623	WASHER	1	SN: 81612-UP	Request quote11 \| 01643-30623 \| WASHER \| SN: 81612-UP \| \|
12	423-06-47470	ANTENNA ASS'Y	1	SN: 81612-UP	Request quote12 \| 423-06-47470 \| ANTENNA ASS'Y \| SN: 81612-UP \| \|
13	08037-01610	GROMMET	1	SN: 81612-UP	Request quote13 \| 08037-01610 \| GROMMET \| SN: 81612-UP \| \|
14	421-54-33691	BRACKET	1	SN: 81612-UP	Request quote14 \| 421-54-33691 \| BRACKET \| SN: 81612-UP \| \|
15	01010-80816	BOLT	2	SN: 81612-UP	Request quote15 \| 01010-80816 \| BOLT \| SN: 81612-UP \| \|
16	01643-30823	WASHER	2	SN: 81612-UP	Request quote16 \| 01643-30823 \| WASHER \| SN: 81612-UP \| \|
17	04434-50810	CLIP	1	SN: 81612-UP	Request quote17 \| 04434-50810 \| CLIP \| SN: 81612-UP \| \|
18	01010-80816	BOLT	1	SN: 81612-UP	Request quote18 \| 01010-80816 \| BOLT \| SN: 81612-UP \| \|
19	01643-30823	WASHER	1	SN: 81612-UP	Request quote19 \| 01643-30823 \| WASHER \| SN: 81612-UP \| \|
