WA470-5 KOMTRAX GPRS Floor Parts Diagram 2/3 (81612-UP)
Use this assembly diagram and parts list to identify part numbers for WA470-5, 81612-UP; KOMTRAX (GPRS); source book 70001-UP. Check the source applicability and configuration, then use independently verified product matches where available or prepare a quote request.
WA470-5 | 81612-UP; KOMTRAX (GPRS); source book 70001-UP | Operator's Compartment and Control System / FLOOR (KOMTRAX GPRS) (2/3)(#81612-) (K4200-71E0)
Select the relevant source rows and enter requested quantities to prepare a quote request. Confirm machine and engine applicability before ordering. Nothing is sent automatically.

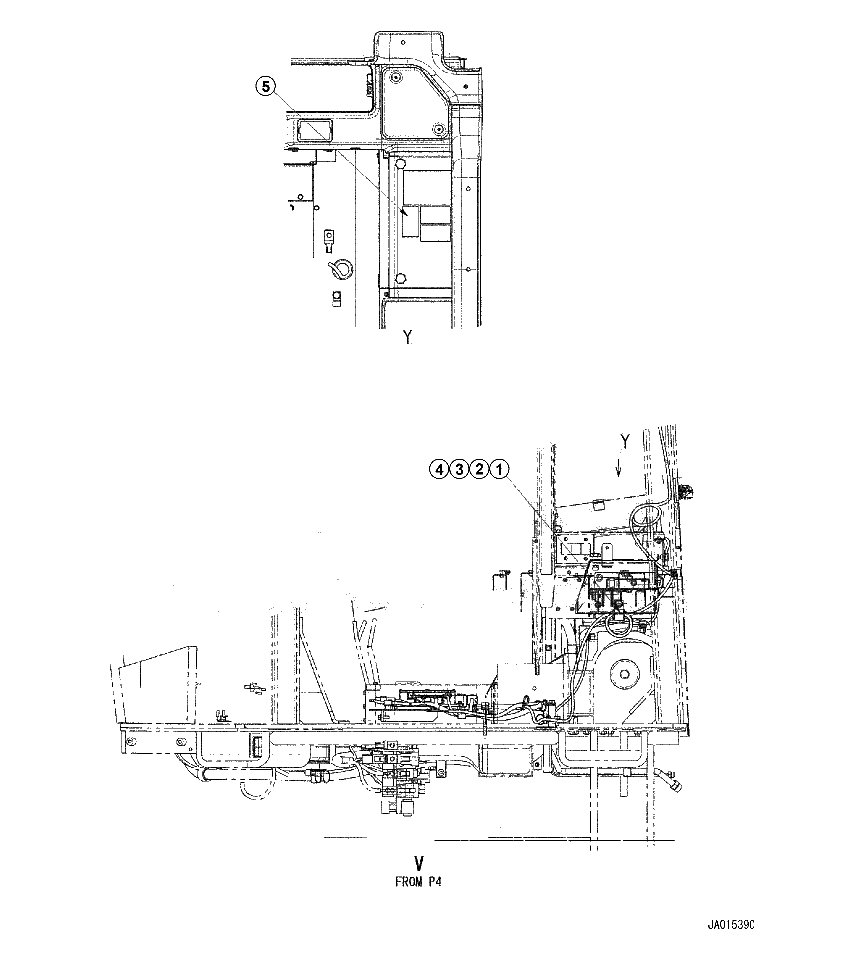

Assembly diagram
WHEEL LOADERS / WA470-5 S/N 70001-UP (KOMTRAX(GPRS)) / OPERATOR'S COMPARTMENT AND CONTROL SYSTEM / FLOOR (KOMTRAX GPRS) (2/3)(#81612-) (K4200-71E0)
Assembly parts
5 source rows
On smaller screens, scroll the parts table sideways to view all columns.
| Sort Order | Part Number | Description | QTY | OPTIONS | Ref0 | Ref1 | Selection and details |
|---|---|---|---|---|---|---|---|
| 1 | 04434-52511 | CLIP | 1 | SN: 81612-UP | Request quote | ||
| 2 | 07095-20318 | CUSHION | 1 | SN: 81612-UP | Request quote | ||
| 3 | 01010-81020 | BOLT | 1 | SN: 81612-UP | Request quote | ||
| 4 | 01643-31032 | WASHER | 1 | SN: 81612-UP | Request quote | ||
| 5 | 09845-00480 | PLATE, SAFETY | 1 | SN: 81612-UP | Request quote |
