WA470-5 KOMTRAX GPRS Floor Parts Diagram 3/3 (81612-UP)

Use this assembly diagram and parts list to identify part numbers for WA470-5, 81612-UP; KOMTRAX (GPRS); source book 70001-UP. Check the source applicability and configuration, then use independently verified product matches where available or prepare a quote request.

WA470-5 | 81612-UP; KOMTRAX (GPRS); source book 70001-UP | Operator's Compartment and Control System / FLOOR (KOMTRAX GPRS) (3/3)(#81612-) (K4200-72E0)

Select the relevant source rows and enter requested quantities to prepare a quote request. Confirm machine and engine applicability before ordering. Nothing is sent automatically.

Assembly diagram

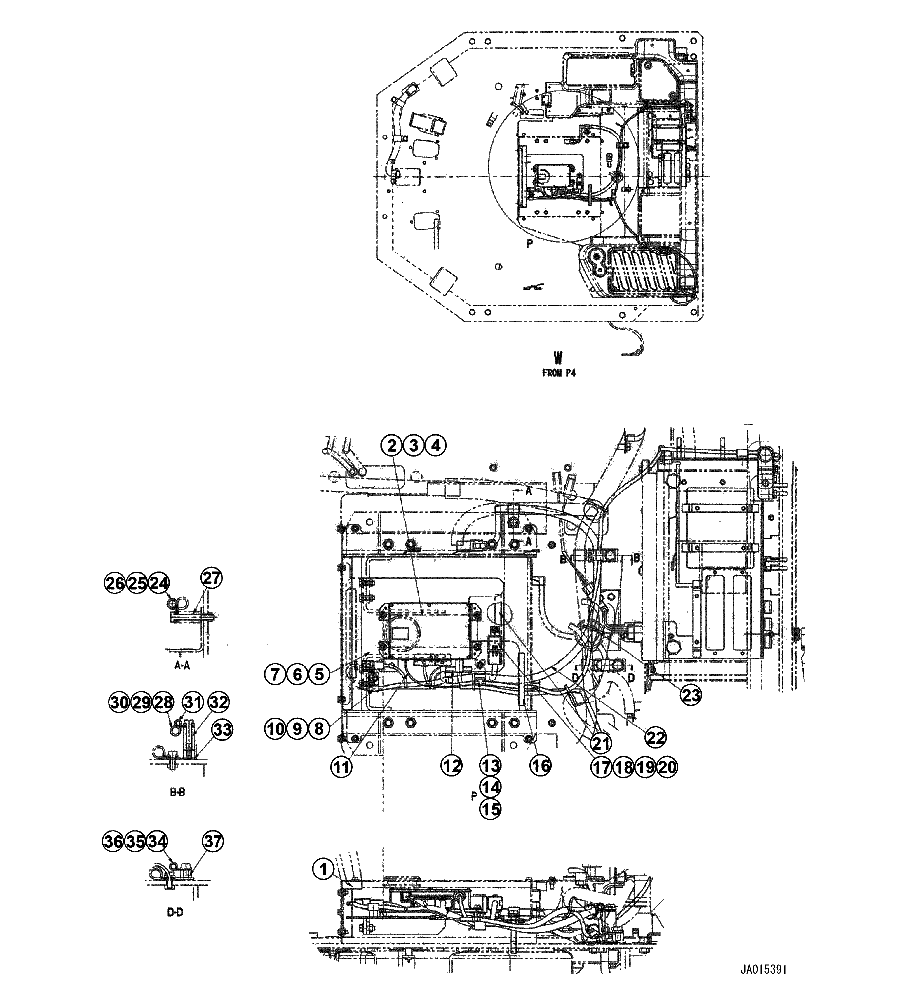

WHEEL LOADERS / WA470-5 S/N 70001-UP (KOMTRAX(GPRS)) / OPERATOR'S COMPARTMENT AND CONTROL SYSTEM / FLOOR (KOMTRAX GPRS) (3/3)(#81612-) (K4200-72E0)

Assembly parts

37 source rows

On smaller screens, scroll the parts table sideways to view all columns.

Sort Order	Part Number	Description	QTY	OPTIONS	Selection and details
1	421-54-33650	SHEET	1	SN: 81612-UP	Request quote1 \| 421-54-33650 \| SHEET \| SN: 81612-UP \| \|
2	7826-25-5302	CONTROLLER	1	SN: 81612-UP	Request quote2 \| 7826-25-5302 \| CONTROLLER \| SN: 81612-UP \| \|
3	01010-80620	BOLT	4	SN: 81612-UP	Request quote3 \| 01010-80620 \| BOLT \| SN: 81612-UP \| \|
4	01643-30623	WASHER	4	SN: 81612-UP	Request quote4 \| 01643-30623 \| WASHER \| SN: 81612-UP \| \|
5	421-54-33681	BRACKET	1	SN: 81612-UP	Request quote5 \| 421-54-33681 \| BRACKET \| SN: 81612-UP \| \|
6	01010-80825	BOLT	4	SN: 81612-UP	Request quote6 \| 01010-80825 \| BOLT \| SN: 81612-UP \| \|
7	01643-30823	WASHER	4	SN: 81612-UP	Request quote7 \| 01643-30823 \| WASHER \| SN: 81612-UP \| \|
8	04434-50810	CLIP	1	SN: 81612-UP	Request quote8 \| 04434-50810 \| CLIP \| SN: 81612-UP \| \|
9	01010-80816	BOLT	1	SN: 81612-UP	Request quote9 \| 01010-80816 \| BOLT \| SN: 81612-UP \| \|
10	01643-30823	WASHER	1	SN: 81612-UP	Request quote10 \| 01643-30823 \| WASHER \| SN: 81612-UP \| \|
11	427-06-23421	CABLE	1	SN: 81612-UP	Request quote11 \| 427-06-23421 \| CABLE \| SN: 81612-UP \| \|
12	418-54-45560	FINISHER	1	SN: 81612-UP	Request quote12 \| 418-54-45560 \| FINISHER \| SN: 81612-UP \| \|
13	04434-51410	CLIP	1	SN: 81612-UP	Request quote13 \| 04434-51410 \| CLIP \| SN: 81612-UP \| \|
14	01010-80816	BOLT	1	SN: 81612-UP	Request quote14 \| 01010-80816 \| BOLT \| SN: 81612-UP \| \|
15	01643-30823	WASHER	1	SN: 81612-UP	Request quote15 \| 01643-30823 \| WASHER \| SN: 81612-UP \| \|
16	418-54-45560	FINISHER	1	SN: 81612-UP	Request quote16 \| 418-54-45560 \| FINISHER \| SN: 81612-UP \| \|
17	569-06-61960	RELAY	1	SN: 81612-UP	Request quote17 \| 569-06-61960 \| RELAY \| SN: 81612-UP \| \|
18	287-06-16420	BRACKET	1	SN: 81612-UP	Request quote18 \| 287-06-16420 \| BRACKET \| SN: 81612-UP \| \|
19	01010-80612	BOLT	1	SN: 81612-UP	Request quote19 \| 01010-80612 \| BOLT \| SN: 81612-UP \| \|
20	01643-30623	WASHER	1	SN: 81612-UP	Request quote20 \| 01643-30623 \| WASHER \| SN: 81612-UP \| \|
21	418-54-22190	CUSHION	1	SN: 81612-UP	Request quote21 \| 418-54-22190 \| CUSHION \| SN: 81612-UP \| \|
22	421-06-31590	WIRING HARNESS	1	SN: 81612-UP	Request quote22 \| 421-06-31590 \| WIRING HARNESS \| SN: 81612-UP \| \|
23	08034-40521	BAND	2	SN: 81612-UP	Request quote23 \| 08034-40521 \| BAND \| SN: 81612-UP \| \|
24	04434-51410	CLIP	1	SN: 81612-UP	Request quote24 \| 04434-51410 \| CLIP \| SN: 81612-UP \| \|
25	01010-81080	BOLT	1	SN: 81612-UP	Request quote25 \| 01010-81080 \| BOLT \| SN: 81612-UP \| \|
26	01643-31032	WASHER	1	SN: 81612-UP	Request quote26 \| 01643-31032 \| WASHER \| SN: 81612-UP \| \|
27	431-07-12540	SPACER	1	SN: 81612-UP	Request quote27 \| 431-07-12540 \| SPACER \| SN: 81612-UP \| \|
28	04434-51410	CLIP	1	SN: 81612-UP	Request quote28 \| 04434-51410 \| CLIP \| SN: 81612-UP \| \|
29	01010-81065	BOLT	1	SN: 81612-UP	Request quote29 \| 01010-81065 \| BOLT \| SN: 81612-UP \| \|
30	01643-31032	WASHER	1	SN: 81612-UP	Request quote30 \| 01643-31032 \| WASHER \| SN: 81612-UP \| \|
31	04434-50810	CLIP	1	SN: 81612-UP	Request quote31 \| 04434-50810 \| CLIP \| SN: 81612-UP \| \|
32	431-07-12540	SPACER	1	SN: 81612-UP	Request quote32 \| 431-07-12540 \| SPACER \| SN: 81612-UP \| \|
33	426-06-11570	BRACKET	1	SN: 81612-UP	Request quote33 \| 426-06-11570 \| BRACKET \| SN: 81612-UP \| \|
34	04434-51010	CLIP	1	SN: 81612-UP	Request quote34 \| 04434-51010 \| CLIP \| SN: 81612-UP \| \|
35	01010-81020	BOLT	1	SN: 81612-UP	Request quote35 \| 01010-81020 \| BOLT \| SN: 81612-UP \| \|
36	01643-31032	WASHER	1	SN: 81612-UP	Request quote36 \| 01643-31032 \| WASHER \| SN: 81612-UP \| \|
37	426-06-11570	BRACKET	1	SN: 81612-UP	Request quote37 \| 426-06-11570 \| BRACKET \| SN: 81612-UP \| \|
