Komatsu WA470-5 Wheel Loader Joy Stick Steering Valve Parts
Komatsu WA470-5 joy stick steering valve parts for machine serial 70001-UP (OVERSEAS VERSION). View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Operator'S Compartment And Control System / Joy Stick Steering Valve.
Checking current purchase options...

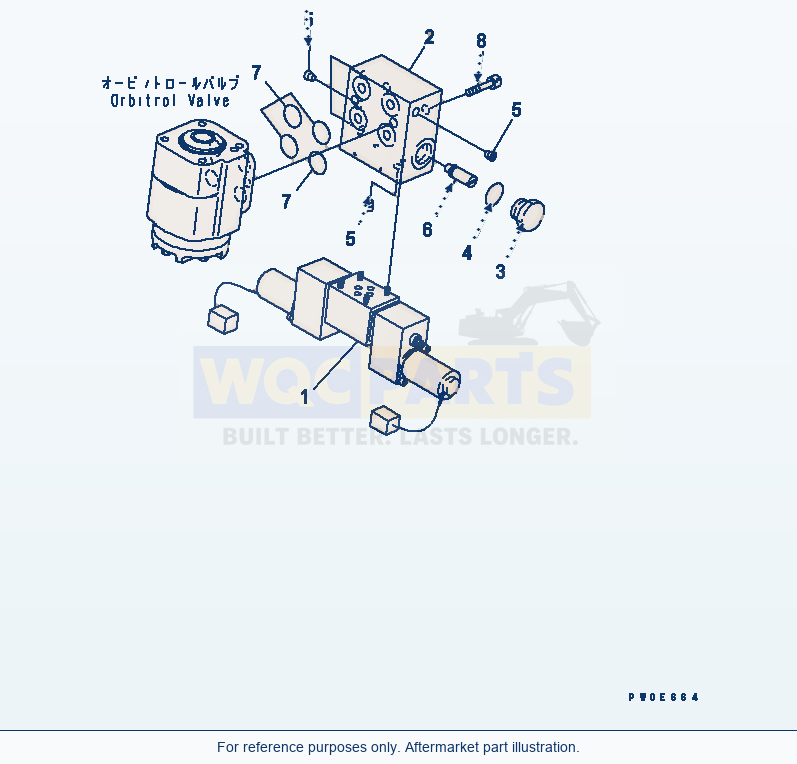

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 10 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | VALVE ASS'YSN: 70001-UP | 1 | Request quote | |||
| 1 | SOLENOIDSN: 70001-UP | This part cannot be supplied as an individual part. It is supplied as an assembly. It however is supplied as an individual part by authorized distributors only. | 1 | Request quote | |||
| 5 | BLOCK ASS'YSN: 70001-UP | 1 | Request quote | |||
| 2 | BLOCKSN: 70001-UP | 1 | Request quote | |||
| 3 | PLUGSN: 70001-UP | 1 | Request quote | |||
| 4 | O-RINGSN: 70001-UP | 1 | View product ↗ | |||
| 5 | PLUGSN: 70001-UP | 5 | View product ↗ | |||
| 6 | FILTERSN: 70001-UP | 1 | Request quote | |||
| 7 | O-RINGSN: 70001-UP | 4 | Request quote | |||
| 8 | BOLTSN: 70001-UP | 2 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA470-5 Wheel Loader Joy Stick Steering Valve Parts
Use the Komatsu WA470-5 Wheel Loader Joy Stick Steering Valve Parts listing to identify aftermarket replacement parts within the operator's compartment and control system section. This wheel loader application is listed for machine serial 70001-UP (OVERSEAS VERSION); the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 10 listed part occurrences, including valve ass'y (reference 421-S33-3911), solenoid (reference UC11006568830) and block ass'y (reference 421-S33-3921). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For operator-compartment and control parts, compare the cab arrangement and equipment options identified on the assembly page. Retain any handedness and connection details when selecting a part or requesting assistance.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
