Komatsu WA470-5 Rops Cab (Cab Accessory) (Except Japan) Parts
Komatsu WA470-5 rops cab (cab accessory) (except japan) parts for machine serial 70001-UP (OVERSEAS VERSION). View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Operator'S Compartment And Control System / Rops Cab (Cab Accessory) (Except Japan).
Checking current purchase options...

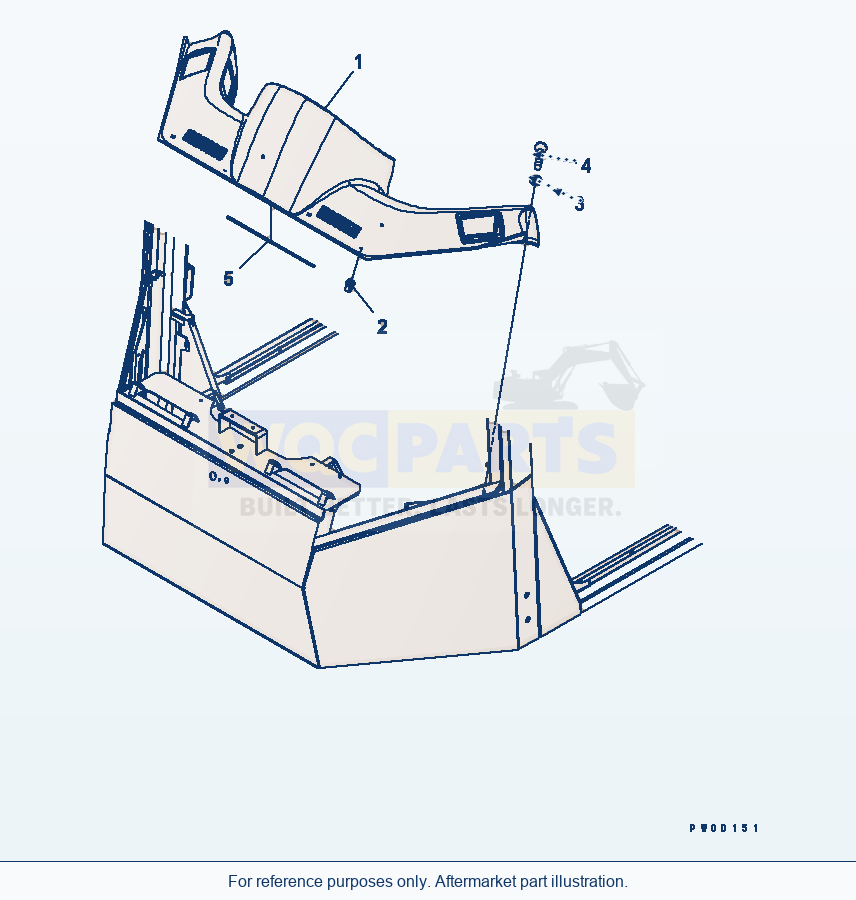

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 98 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 25 | ROPS CAB ASS'Y,(A+E+G+J)SN: 81390-UP | 1 | Request quote | |||
| 26 | ROPS CAB ASS'Y,(A+E+G+J)SN: 81020-81389 | 1 | Request quote | |||
| 27 | ROPS CAB ASS'Y,(A+E+G+J)SN: 80591-81019 | 1 | Request quote | |||
| 28 | ROPS CAB ASS'Y,(A+E+G+J)SN: 70001-80590 | 1 | Request quote | |||
| 29 | ROPS CAB ASS'Y,(B+C+L)SN: 81583-UP | 1 | Request quote | |||
| 30 | ROPS CAB ASS'Y,(B+C+L)SN: 81390-81582 | 1 | Request quote | |||
| 31 | ROPS CAB ASS'Y,(B+C+L)SN: 81020-81389 | 1 | Request quote | |||
| 32 | ROPS CAB ASS'Y,(B+C+L)SN: 80591-81019 | 1 | Request quote | |||
| 33 | ROPS CAB ASS'Y,(B+C+L)SN: 70001-80590 | 1 | Request quote | |||
| 34 | ROPS CAB ASS'Y,(B+C+E+L)SN: 81390-UP | 1 | Request quote | |||
| 35 | ROPS CAB ASS'Y,(B+C+E+L)SN: 81020-81389 | 1 | Request quote | |||
| 36 | ROPS CAB ASS'Y,(B+C+E+L)SN: 80591-81019 | 1 | Request quote | |||
| 37 | ROPS CAB ASS'Y,(B+C+E+L)SN: 70001-80590 | 1 | Request quote | |||
| 38 | ROPS CAB ASS'Y,(C+G+J)SN: 81583-UP | 1 | Request quote | |||
| 39 | ROPS CAB ASS'Y,(C+G+J)SN: 81390-81582 | 1 | Request quote | |||
| 40 | ROPS CAB ASS'Y,(C+G+J)SN: 81020-81389 | 1 | Request quote | |||
| 41 | ROPS CAB ASS'Y,(C+G+J)SN: 80591-81019 | 1 | Request quote | |||
| 42 | ROPS CAB ASS'Y,(C+G+J)SN: 70001-80590 | 1 | Request quote | |||
| 43 | ROPS CAB ASS'Y,(C+E+G+J+L)SN: 81390-UP | 1 | Request quote | |||
| 44 | ROPS CAB ASS'Y,(C+E+J+L)SN: 81020-81389 | 1 | Request quote | |||
| 45 | ROPS CAB ASS'Y,(C+E+J+L)SN: 80591-81019 | 1 | Request quote | |||
| 46 | ROPS CAB ASS'Y,(C+E+J+L)SN: 70001-80590 | 1 | Request quote | |||
| 47 | ROPS CAB ASS'Y,(A+F)SN: 81583-UP | 1 | Request quote | |||
| 48 | ROPS CAB ASS'Y,(A+F)SN: 81020-81582 | 1 | Request quote | |||
| 49 | ROPS CAB ASS'Y,(A+F)SN: 80591-81019 | 1 | Request quote | |||
| 50 | ROPS CAB ASS'Y,(A+F)SN: 70001-80590 | 1 | Request quote | |||
| 51 | ROPS CAB ASS'Y,(A+G+J)SN: 81583-UP | 1 | Request quote | |||
| 52 | ROPS CAB ASS'Y,(A+G+J)SN: 81390-81582 | 1 | Request quote | |||
| 53 | ROPS CAB ASS'Y,(A+G+J)SN: 81020-81389 | 1 | Request quote | |||
| 54 | ROPS CAB ASS'Y,(A+G+J)SN: 80591-81019 | 1 | Request quote | |||
| 55 | ROPS CAB ASS'Y,(A+G+J)SN: 70001-80590 | 1 | Request quote | |||
| 56 | ROPS CAB ASS'Y,(B+G+L)SN: 81583-UP | 1 | Request quote | |||
| 57 | ROPS CAB ASS'Y,(B+G+L)SN: 81390-81582 | 1 | Request quote | |||
| 58 | ROPS CAB ASS'Y,(B+G+L)SN: 81020-81389 | 1 | Request quote | |||
| 59 | ROPS CAB ASS'Y,(B+G+L)SN: 80591-81019 | 1 | Request quote | |||
| 60 | ROPS CAB ASS'Y,(B+G+L)SN: 70001-80590 | 1 | Request quote | |||
| 61 | ROPS CAB ASS'Y,(F+G)SN: 81583-UP | 1 | Request quote | |||
| 62 | ROPS CAB ASS'Y,(F+G)SN: 81020-81582 | 1 | Request quote | |||
| 63 | ROPS CAB ASS'Y,(F+G)SN: 80591-81019 | 1 | Request quote | |||
| 64 | ROPS CAB ASS'Y,(F+G)SN: 70001-80590 | 1 | Request quote | |||
| 65 | ROPS CAB ASS'Y,(B+G)SN: 81583-UP | 1 | Request quote | |||
| 66 | ROPS CAB ASS'Y,(B+G)SN: 81390-81582 | 1 | Request quote | |||
| 67 | ROPS CAB ASS'Y,(B+G)SN: 81020-81389 | 1 | Request quote | |||
| 68 | ROPS CAB ASS'Y,(B+G)SN: 80591-81019 | 1 | Request quote | |||
| 69 | ROPS CAB ASS'Y,(B+G)SN: 70001-80590 | 1 | Request quote | |||
| 70 | ROPS CAB ASS'Y,(A+B+C+G)SN: 81583-UP | 1 | Request quote | |||
| 71 | ROPS CAB ASS'Y,(A+B+C+G)SN: 81390-81582 | 1 | Request quote | |||
| 72 | ROPS CAB ASS'Y,(A+B+C+G)SN: 81020-81389 | 1 | Request quote | |||
| 73 | ROPS CAB ASS'Y,(A+B+C+G)SN: 80591-81019 | 1 | Request quote | |||
| 74 | ROPS CAB ASS'Y,(A+B+C+G)SN: 70001-80590 | 1 | Request quote | |||
| 75 | ROPS CAB ASS'Y,(G+J)SN: 81583-UP | 1 | Request quote | |||
| 76 | ROPS CAB ASS'Y,(G+J)SN: 81390-81582 | 1 | Request quote | |||
| 77 | ROPS CAB ASS'Y,(G+J)SN: 81020-81389 | 1 | Request quote | |||
| 78 | ROPS CAB ASS'Y,(G+J)SN: 80591-81019 | 1 | Request quote | |||
| 79 | ROPS CAB ASS'Y,(G+J)SN: 70001-80590 | 1 | Request quote | |||
| 80 | ROPS CAB ASS'YSN: 70001-UP | 1 | Request quote | |||
| 82 | ROPS CAB ASS'Y,(A)SN: 81583-UP | 1 | Request quote | |||
| 83 | ROPS CAB ASS'Y,(A)SN: 81020-81582 | 1 | Request quote | |||
| 84 | ROPS CAB ASS'Y,(A)SN: 80591-81019 | 1 | Request quote | |||
| 85 | ROPS CAB ASS'Y,(A)SN: 70001-80590 | 1 | Request quote | |||
| 87 | ROPS CAB ASS'Y,(A+B+C+G+H)SN: 81583-UP | 1 | Request quote | |||
| 88 | ROPS CAB ASS'Y,(A+B+C+G+H)SN: 81390-81582 | 1 | Request quote | |||
| 89 | ROPS CAB ASS'Y,(A+B+C+G+H)SN: 81020-81389 | 1 | Request quote | |||
| 90 | ROPS CAB ASS'Y,(A+B+C+G+H)SN: 80591-81019 | 1 | Request quote | |||
| 91 | ROPS CAB ASS'Y,(A+B+C+G+H)SN: 70001-80590 | 1 | Request quote | |||
| 93 | ROPS CAB ASS'Y,(H)SN: 81583-UP | 1 | Request quote | |||
| 94 | ROPS CAB ASS'Y,(H)SN: 81020-81582 | 1 | Request quote | |||
| 95 | ROPS CAB ASS'Y,(H)SN: 80591-81019 | 1 | Request quote | |||
| 96 | ROPS CAB ASS'Y,(H)SN: 70001-80590 | 1 | Request quote | |||
| 97 | ROPS CAB ASS'Y,(A+B+G)SN: 81583-UP | 1 | Request quote | |||
| 98 | ROPS CAB ASS'Y,(A+B+G)SN: 81390-81582 | 1 | Request quote | |||
| 99 | ROPS CAB ASS'Y,(A+B+G)SN: 81020-81389 | 1 | Request quote | |||
| 100 | ROPS CAB ASS'Y,(A+B+G)SN: 80591-81019 | 1 | Request quote | |||
| 101 | ROPS CAB ASS'Y,(A+B+G)SN: 70001-80590 | 1 | Request quote | |||
| 102 | ROPS CAB ASS'Y,(A+B+F+G)SN: 81583-UP | 1 | Request quote | |||
| 103 | ROPS CAB ASS'Y,(A+B+F+G)SN: 81390-81582 | 1 | Request quote | |||
| 104 | ROPS CAB ASS'Y,(A+B+F+G)SN: 81020-81389 | 1 | Request quote | |||
| 105 | ROPS CAB ASS'Y,(A+B+F+G)SN: 80591-81019 | 1 | Request quote | |||
| 106 | ROPS CAB ASS'Y,(A+B+F+G)SN: 70001-80590 | 1 | Request quote | |||
| 107 | ROPS CAB ASS'YSN: 81583-UP | 1 | Request quote | |||
| 108 | ROPS CAB ASS'YSN: 70001-81582 | 1 | Request quote | |||
| 110 | ROPS CAB ASS'YSN: 81583-UP | 1 | Request quote | |||
| 111 | ROPS CAB ASS'YSN: 70001-81582 | The part specified in the line above can be used instead of this part | 1 | Request quote | |||
| 112 | ROPS CAB ASS'Y,(F)SN: 81583-UP | 1 | Request quote | |||
| 113 | ROPS CAB ASS'Y,(F)SN: 70001-81582 | The part specified in the line above can be used instead of this part | 1 | Request quote | |||
| 114 | ROPS CAB ASS'Y,(B)SN: 81583-UP | 1 | Request quote | |||
| 115 | ROPS CAB ASS'Y,(B)SN: 70001-81582 | The part specified in the line above can be used instead of this part | 1 | Request quote | |||
| 116 | ROPS CAB ASS'Y,(L)SN: 81583-UP | 1 | Request quote | |||
| 117 | ROPS CAB ASS'Y,(L)SN: 70001-81582 | The part specified in the line above can be used instead of this part | 1 | Request quote | |||
| 118 | ROPS CAB ASS'Y,(B+F)SN: 81583-UP | 1 | Request quote | |||
| 119 | ROPS CAB ASS'Y,(B+F)SN: 70001-81582 | The part specified in the line above can be used instead of this part | 1 | Request quote | |||
| 121 | ROPS CAB ASS'Y,(C)SN: 81583-UP | 1 | Request quote | |||
| 122 | ROPS CAB ASS'Y,(C)SN: 70001-81582 | The part specified in the line above can be used instead of this part | 1 | Request quote | |||
| 1 | COVER,FRONTSN: 70001-UP | 1 | Request quote | |||
| 2 | CLIPSN: 70001-UP | 4 | Request quote | |||
| 3 | WASHERSN: 70001-UP | 4 | Request quote | |||
| 4 | SCREWSN: 70001-UP | 4 | Request quote | |||
| 5 | CUSHIONSN: 70001-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-25A0.
THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-24A2.
THESE ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-25B6
THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-24C6.
THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K0210-01C8 TO K0210-24C8.
THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0210-01C8 TO K0210-24D1.
THESE ASSEMBLY CONSIST OF SOME FIGS. BE CAREFUL WHEN ORDERING THE PARTS.
A = AIR CONDITIONER
B = AM,FM RADIO
C = E.C.S.S
D = KOMTRAX
E = LOAD METER
F = YELLOW LAMP
G = HEAT GLASS
H = A/C SIDE BLOW
J = RADIO, CASSETTE
K = AUTO AIR CONDIT.
L = HEATER
