Komatsu WA470-5 Wheel Loader Rops Cab (Heater) Parts
Komatsu WA470-5 rops cab (heater) parts for machine serial 70001-UP (OVERSEAS VERSION). View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Operator'S Compartment And Control System / Rops Cab (Heater).
Checking current purchase options...

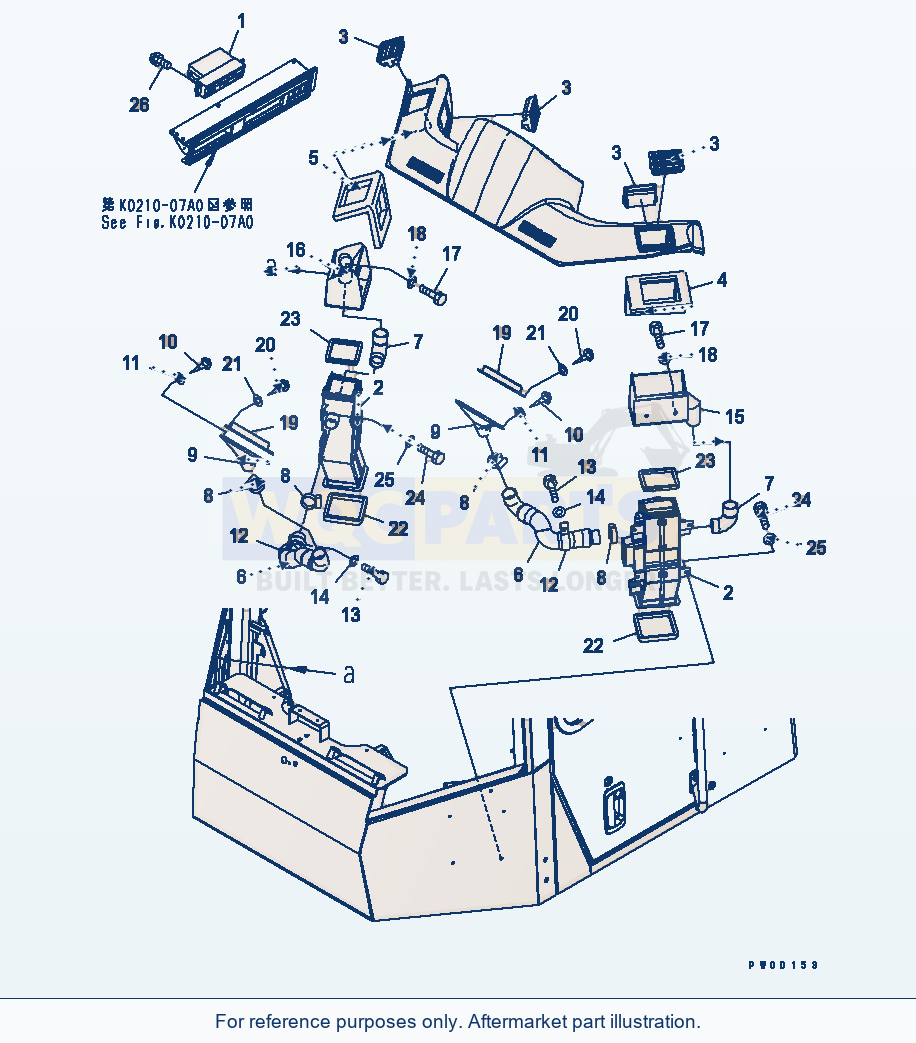

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 51 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 6 | ROPS CAB ASS'Y,(B+C+L)SN: 81583-UP | 1 | Request quote | |||
| 7 | ROPS CAB ASS'Y,(B+C+L)SN: 81390-81582 | 1 | Request quote | |||
| 8 | ROPS CAB ASS'Y,(B+C+L)SN: 81020-81389 | 1 | Request quote | |||
| 9 | ROPS CAB ASS'Y,(B+C+L)SN: 80591-81019 | 1 | Request quote | |||
| 10 | ROPS CAB ASS'Y,(B+C+L)SN: 70001-80590 | 1 | Request quote | |||
| 11 | ROPS CAB ASS'Y,(B+C+E+L)SN: 81390-UP | 1 | Request quote | |||
| 12 | ROPS CAB ASS'Y,(B+C+E+L)SN: 81020-81389 | 1 | Request quote | |||
| 13 | ROPS CAB ASS'Y,(B+C+E+L)SN: 80591-81019 | 1 | Request quote | |||
| 14 | ROPS CAB ASS'Y,(B+C+E+L)SN: 70001-80590 | 1 | Request quote | |||
| 15 | ROPS CAB ASS'Y,(C+G+J)SN: 81583-UP | 1 | Request quote | |||
| 16 | ROPS CAB ASS'Y,(C+G+J)SN: 81390-81582 | 1 | Request quote | |||
| 17 | ROPS CAB ASS'Y,(C+G+J)SN: 81020-81389 | 1 | Request quote | |||
| 18 | ROPS CAB ASS'Y,(C+G+J)SN: 80591-81019 | 1 | Request quote | |||
| 19 | ROPS CAB ASS'Y,(C+G+J)SN: 70001-80590 | 1 | Request quote | |||
| 20 | ROPS CAB ASS'Y,(C+E+G+J+L)SN: 81390-UP | 1 | Request quote | |||
| 21 | ROPS CAB ASS'Y,(C+E+J+L)SN: 81020-81389 | 1 | Request quote | |||
| 22 | ROPS CAB ASS'Y,(C+E+J+L)SN: 80591-81019 | 1 | Request quote | |||
| 23 | ROPS CAB ASS'Y,(C+E+J+L)SN: 70001-80590 | 1 | Request quote | |||
| 24 | ROPS CAB ASS'Y,(B+G+L)SN: 81583-UP | 1 | Request quote | |||
| 25 | ROPS CAB ASS'Y,(B+G+L)SN: 81390-81582 | 1 | Request quote | |||
| 26 | ROPS CAB ASS'Y,(B+G+L)SN: 81020-81389 | 1 | Request quote | |||
| 27 | ROPS CAB ASS'Y,(B+G+L)SN: 80591-81019 | 1 | Request quote | |||
| 28 | ROPS CAB ASS'Y,(B+G+L)SN: 70001-80590 | 1 | Request quote | |||
| 30 | ROPS CAB ASS'Y,(L)SN: 81583-UP | 1 | Request quote | |||
| 31 | ROPS CAB ASS'Y,(L)SN: 70001-81582 | The part specified in the line above can be used instead of this part | 1 | Request quote | |||
| 1 | CONTROLLERSN: 70001-UP | 1 | Request quote | |||
| 2 | DUCT ASS'Y,(SEE FIG. K0210-51A0)SN: 70001-UP | 2 | Request quote | |||
| 3 | GRILLESN: 70001-UP | 4 | Request quote | |||
| 4 | SHEET,L.H.SN: 70001-UP | 1 | Request quote | |||
| 5 | SHEET,R.H.SN: 70001-UP | 1 | Request quote | |||
| 6 | HOSE,AIRSN: 70001-UP | 2 | Request quote | |||
| 7 | CONNECTORSN: 70001-UP | 2 | Request quote | |||
| 8 | CLAMPSN: 70001-UP | 4 | View product ↗ | |||
| 9 | NOZZLESN: 70001-UP | 2 | Request quote | |||
| 10 | SCREWSN: 70001-UP | 4 | Request quote | |||
| 11 | WASHERSN: 70001-UP | 4 | Request quote | |||
| 12 | CLIPSN: 70001-UP | 2 | Request quote | |||
| 13 | BOLTSN: 70001-UP | 2 | Request quote | |||
| 14 | WASHERSN: 70001-UP | 2 | View product ↗ | |||
| 15 | DUCT,L.H.SN: 70001-UP | 1 | Request quote | |||
| 16 | DUCT,R.H.SN: 70001-UP | 1 | Request quote | |||
| 17 | BOLTSN: 70001-UP | 4 | View product ↗ | |||
| 18 | WASHERSN: 70001-UP | 4 | View product ↗ | |||
| 19 | PLATESN: 70001-UP | 2 | Request quote | |||
| 20 | SCREWSN: 70001-UP | 4 | Request quote | |||
| 21 | WASHERSN: 70001-UP | 4 | Request quote | |||
| 22 | SHEETSN: 70001-UP | 2 | Request quote | |||
| 23 | SHEETSN: 70001-UP | 2 | Request quote | |||
| 24 | BOLTSN: 70001-UP | 8 | View product ↗ | |||
| 25 | WASHERSN: 70001-UP | 8 | View product ↗ | |||
| 26 | SCREWSN: 70001-UP | 4 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-25A0.
THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0210-01C8 TO K0210-24C8.
THESE ASSEMBLY CONSIST OF SOME FIGS. BE CAREFUL WHEN ORDERING THE PARTS.
B = AM,FM RADIO
C = E.C.S.S
E = LOAD METER
G = HEAT GLASS
J = RADIO, CASSETTE
L = HEATER
