Komatsu WA470-5 Transmission Main Valve(#70001-80525) Parts
Komatsu WA470-5 transmission main valve(#70001-80525) parts for machine serial 70001-UP (OVERSEAS VERSION). View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Power Train / Transmission Main Valve(#70001-80525).
Checking current purchase options...

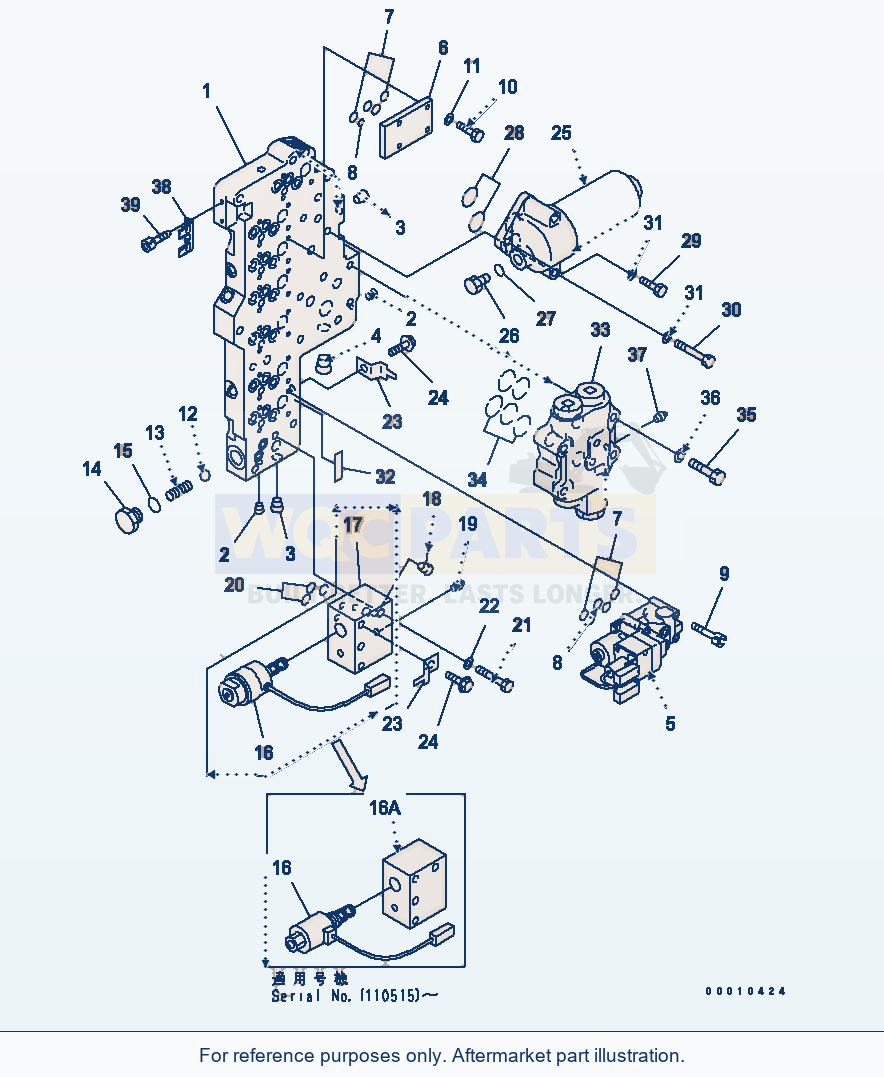

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 54 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 2 | TORQFLOW ASS'YSN: 70001-@ | 1 | Request quote | |||
| 3 | TORQFLOW ASS'YSN: (70001-(110482)) | This shows a discontinued part. The part specified in the above line is supplied instead. | 1 | Request quote | |||
| 6 | VALVE ASS'Y,MAINSN: (10139)-00080525 | 1 | Request quote | |||
| 7 | VALVE ASS'Y,MAINSN: ((10139)-0070176) | This shows a discontinued part. The part specified in the above line is supplied instead. | 1 | Request quote | |||
| 8 | VALVE ASS'Y,MAINSN: 70001-(10138) | 1 | Request quote | |||
| 1 | VALVE SEATSN: 70001-80525 | The part specified in the DESCRIPTION column can be used instead of this part if it is used as a set. | 1 | Request quote | |||
| 2 | PLUGSN: 70001-@ | 3 | View product ↗ | |||
| 3 | PLUGSN: 70001-@ | 15 | View product ↗ | |||
| 4 | PLUGSN: 70001-@ | 2 | View product ↗ | |||
| 5 | VALVE ASS'Y,ECMVSN: (10143)-@ | 6 | Request quote | |||
| 5 | ECMV ASS'YSN: (10139)-(10142) | The part specified in the line above can be used instead of this part | 6 | Request quote | |||
| 5 | ECMV ASS'YSN: 70001-(10138) | 6 | Request quote | |||
| 6 | COVERSN: 70001-@ | 1 | Request quote | |||
| 7 | O-RING (K2)SN: 70001-@ | 28 | Request quote | |||
| 8 | O-RING (K2)SN: 70001-@ | 7 | View product ↗ | |||
| 9 | BOLTSN: 70001-@ | 24 | Request quote | |||
| 10 | BOLTSN: 70001-@ | 4 | Request quote | |||
| 11 | WASHERSN: 70001-@ | 4 | View product ↗ | |||
| 12 | BALLSN: 70001-@ | 1 | View product ↗ | |||
| 13 | SPRINGSN: 70001-@ | 1 | Request quote | |||
| 14 | PLUGSN: 70001-@ | 1 | Request quote | |||
| 15 | O-RING (K2)SN: 70001-@ | 1 | View product ↗ | |||
| 27 | SOLENOID VALVE ASS'YSN: (110515)-@ | 1 | Request quote | |||
| 28 | SOLENOID VALVE ASS'YSN: ((110515)-00070176) | This shows a discontinued part. The part specified in the above line is supplied instead. | 1 | Request quote | |||
| 29 | SOLENOID VALVE ASS'YSN: 70001-(110514) | The part specified in the line above can be used instead of this part | 1 | Request quote | |||
| 16 | SOLENOID VALVESN: (110530)-@ | 1 | Request quote | |||
| 17 | BLOCKSN: (70001-70176) | This shows a discontinued part. The part specified in the above line is supplied instead. | 1 | Request quote | |||
| 18 | PLUGSN: 70001-@ | 1 | View product ↗ | |||
| 19 | PLUGSN: 70001-@ | 1 | Request quote | |||
| 20 | O-RING (K2)SN: 70001-@ | 3 | Request quote | |||
| 21 | BOLTSN: 70001-@ | 1 | Request quote | |||
| 22 | WASHERSN: 70001-@ | 1 | View product ↗ | |||
| 23 | CLIPSN: 70001-@ | 2 | View product ↗ | |||
| 24 | BOLTSN: 70001-@ | 2 | Request quote | |||
| 25 | FILTER ASS'YSN: (110742)-@ | 1 | Request quote | |||
| 25 | FILTERSN: 70001-(110741) | 1 | Request quote | |||
| 25 | ELEMENT ASS'YSN: (110742)-@ | 1 | Request quote | |||
| 25 | ELEMENT ASS'YSN: 70001-(110741) | 1 | Request quote | |||
| 44 | O-RINGSN: 70001-@ | 1 | View product ↗ | |||
| 26 | PLUGSN: 70001-@ | 1 | Request quote | |||
| 27 | O-RING (K2)SN: 70001-@ | 1 | View product ↗ | |||
| 28 | O-RING (K2)SN: 70001-@ | 2 | View product ↗ | |||
| 29 | BOLTSN: 70001-@ | 1 | Request quote | |||
| 30 | BOLTSN: 70001-@ | 1 | Request quote | |||
| 31 | WASHERSN: 70001-@ | 2 | View product ↗ | |||
| 32 | PLATE, NAME,(LIMITED SUPPLY)SN: 70001-@ | This part cannot be supplied as an individual part. It is supplied as an assembly. It however is supplied as an individual part by authorized distributors only. | 1 | Request quote | |||
| 33 | VALVE ASS'Y,MODULATIONSN: (10320)-@ | 1 | Request quote | |||
| 33 | VALVE ASS'Y,MODULATIONSN: 70001-(10319) | The part specified in the line above can be used instead of this part | 1 | Request quote | |||
| 34 | O-RING (K2)SN: 70001-@ | 5 | View product ↗ | |||
| 35 | BOLTSN: 70001-@ | 2 | Request quote | |||
| 36 | WASHERSN: 70001-@ | 2 | View product ↗ | |||
| 37 | PLUGSN: 70001-@ | 1 | View product ↗ | |||
| 38 | BRACKETSN: 70001-@ | 1 | Request quote | |||
| 39 | BOLTSN: 70001-@ | 2 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO.
THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A0 TO F4350-63A0.
(714-07-25310(1),714-07-25181(2))
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 16A | Description: BLOCK | QTY: 1 | OPTIONS: SN: (110530)-@
Using Komatsu WA470-5 Transmission Main Valve(#70001-80525) Parts
Use the Komatsu WA470-5 Transmission Main Valve(#70001-80525) Parts listing to identify aftermarket replacement parts within the power train section. This wheel loader application is listed for machine serial 70001-UP (OVERSEAS VERSION); the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 54 listed part occurrences, including torqflow ass'y (reference 714-07-20001), torqflow ass'y (reference 714-07-20000) and valve ass'y,main (reference 714-12-25003). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
