Komatsu WA470-6 Common Rail Assembly Serial A45001-UP Parts
Komatsu WA470-6 common rail assembly serial a45001-up parts for machine serial A45001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Engine / Common Rail Assembly.
Checking current purchase options...

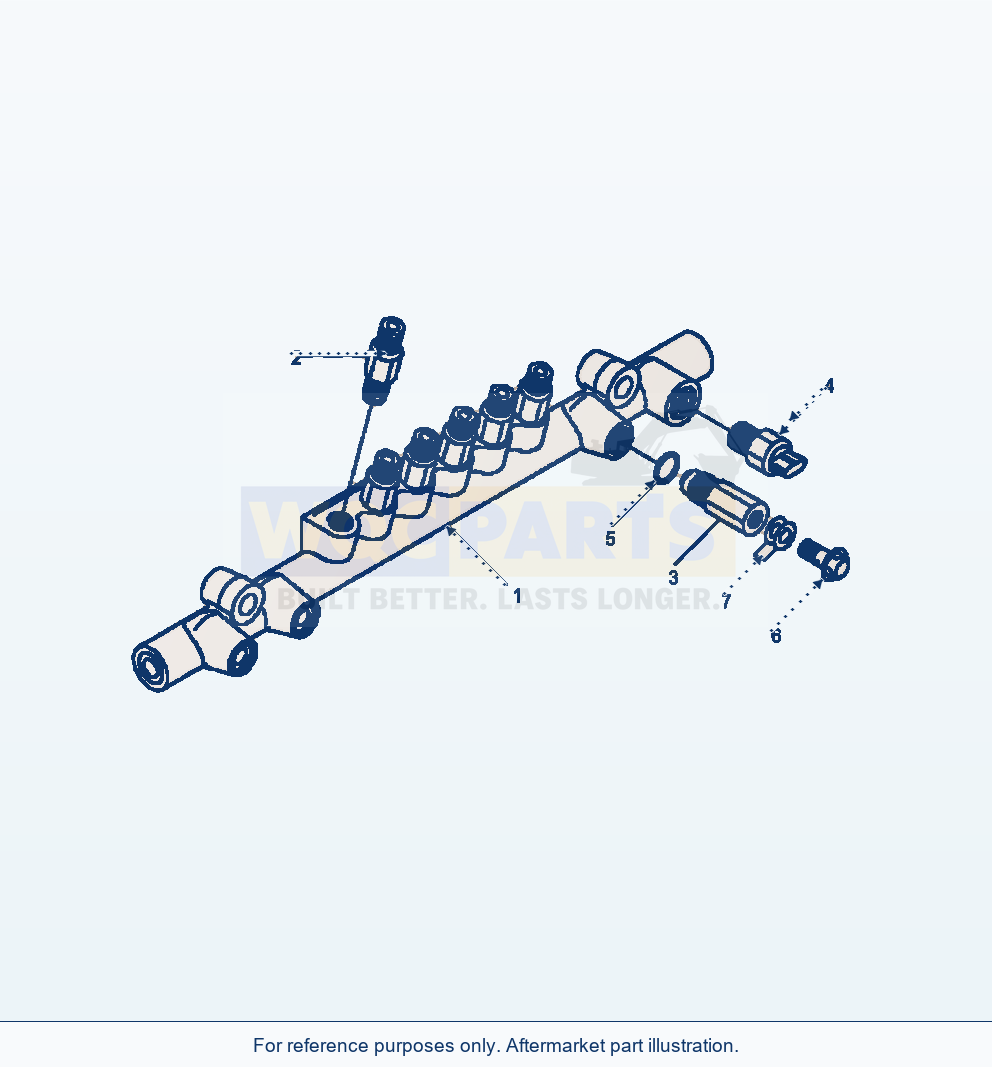

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 9 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | RAIL ASSEMBLY, COMMONF1 | 1 | View product ↗ | |||
| 2 | RAIL ASSEMBLY, COMMONF2 | 1 | Request quote | |||
| 2 | LIMITER, FUEL FLOW | 6 | Request quote | |||
| 3 | LIMITER, FUEL PRESSUREF1 | 1 | Request quote | |||
| 6 | LIMITER, FUEL PRESSUREF2 | 1 | Request quote | |||
| 4 | SENSOR, FUEL PRESSURE | 1 | Request quote | |||
| 5 | RING, PICCO | 1 | Request quote | |||
| 6 | BOLT, JOINT | 1 | Request quote | |||
| 7 | GASKET | 2 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
OR
OR
F1 - USED ON ENGINE - S/N 562923 AND UP
F2 - USED ON ENGINE - S/N 560001 - 562922
Using Komatsu WA470-6 Common Rail Assembly Serial A45001-UP Parts
Use the Komatsu WA470-6 Common Rail Assembly Serial A45001-UP Parts listing to identify aftermarket replacement parts within the engine section. This wheel loader application is listed for machine serial A45001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 9 listed part occurrences, including rail assembly, common (reference 6261-71-1220), rail assembly, common (reference 6261-71-1210) and limiter, fuel flow (reference ND95400-0310). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
