Komatsu WA470-6 Cylinder Head Serial 85001-90215 (ECOT3) Parts
Komatsu WA470-6 cylinder head serial 85001-90215 (ecot3) parts for machine serial 85001-90215 (ECOT3). View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: SAA6D125E-5D-01 S/N 560001-UP / Engine / Cylinder Head.
Checking current purchase options...

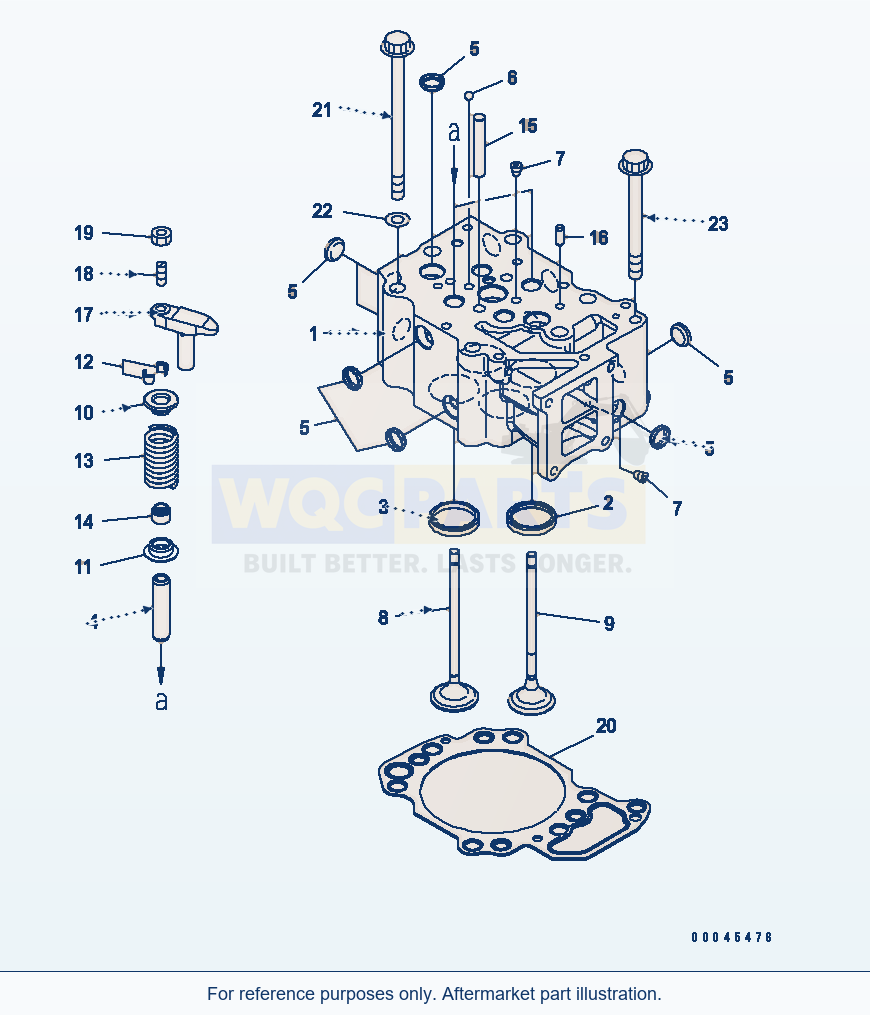

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 43 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 2 | CYLINDER HEAD ASS'YSN: 560001-UP | 6 | Request quote | |||
| 2 | INSERT,EXHAUST VALVE (STD)SN: 560001-UP | 2 | View product ↗ | |||
| 2 | INSERT, 0.25MM,EXHAUST VALVE (OS)SN: 560001-UP | 2 | View product ↗ | |||
| 2 | INSERT, 0.50MM,EXHAUST VALVE (OS)SN: 560001-UP | 2 | Request quote | |||
| 2 | INSERT, 0.75MM,EXHAUST VALVE (OS)SN: 560001-UP | 2 | Request quote | |||
| 2 | INSERT, 1.00MM,EXHAUST VALVE (OS)SN: 560001-UP | 2 | Request quote | |||
| 3 | SEAT,INTAKE VALVE (STD)SN: 560001-UP | 2 | View product ↗ | |||
| 3 | INSERT, 0.25MM,INTAKE VALVE (OS)SN: 560001-UP | 2 | Request quote | |||
| 3 | INSERT, 0.50MM,INTAKE VALVE (OS)SN: 560001-UP | 2 | Request quote | |||
| 3 | INSERT, 0.75MM,INTAKE VALVE (OS)SN: 560001-UP | 2 | Request quote | |||
| 3 | INSERT, 1.00MM,INTAKE VALVE (OS)SN: 560001-UP | 2 | Request quote | |||
| 4 | GUIDE,VALVE (SERVICE ONLY)SN: 560001-UP | 4 | View product ↗ | |||
| 5 | PLUG,EXPANSIONSN: 560001-UP | 11 | View product ↗ | |||
| 6 | BALLSN: 560001-UP | 1 | View product ↗ | |||
| 7 | PLUGSN: 560001-UP | 3 | View product ↗ | |||
| 8 | VALVE,INTAKESN: 560001-UP | 12 | View product ↗ | |||
| 9 | VALVE,EXHAUSTSN: 560001-UP | 12 | View product ↗ | |||
| 10 | SEAT,UPPERSN: 560001-UP | 24 | View product ↗ | |||
| 11 | SEAT,LOWERSN: 560001-UP | 24 | View product ↗ | |||
| 12 | COTTER,VALVESN: 560001-UP | 48 | View product ↗ | |||
| 13 | SPRING,VALVESN: 560001-UP | 24 | Request quote | |||
| 14 | SEAL,VALVE STEMSN: 560001-UP, KIT-FLAG: S | 24 | View product ↗ | |||
| 15 | GUIDE,CROSSHEADSN: 560001-UP | 12 | View product ↗ | |||
| 16 | PINSN: 560001-UP | 12 | View product ↗ | |||
| 28 | CROSSHEAD ASS'YSN: 560001-UP | 12 | Request quote | |||
| 17 | CROSSHEADSN: 560001-UP | 1 | Request quote | |||
| 18 | SCREWSN: 560001-UP | 1 | Request quote | |||
| 19 | NUTSN: 560001-UP | 1 | Request quote | |||
| 20 | GASKET,CYLINDER HEADSN: 560001-UP, KIT-FLAG: S | 6 | View product ↗ | |||
| 20 | GROMMET,OILSN: 560001-UP | 1 | Request quote | |||
| 20 | GROMMET,OILSN: 560001-UP | 1 | View product ↗ | |||
| 20 | GROMMET,WATERSN: 560001-UP | 4 | View product ↗ | |||
| 20 | GROMMET,WATERSN: 560001-UP | 1 | View product ↗ | |||
| 20 | GROMMET,OILSN: 560001-UP | 5 | Request quote | |||
| 20 | GASKET,CYLINDER HEADSN: .-UP | 6 | View product ↗ | |||
| 20 | GROMMET,OILSN: .-UP | 1 | Request quote | |||
| 20 | GROMMET,OILSN: .-UP | 1 | Request quote | |||
| 20 | GROMMET,WATERSN: .-UP | 4 | Request quote | |||
| 20 | GROMMET,WATERSN: .-UP | 1 | Request quote | |||
| 20 | GROMMET,WATERSN: .-UP | 1 | Request quote | |||
| 21 | BOLTSN: 560001-UP | 36 | Request quote | |||
| 22 | WASHERSN: 560001-UP | 36 | Request quote | |||
| 23 | BOLTSN: 560001-UP | 6 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 1 | Description: HEAD,CYLINDER | QTY: 1 | OPTIONS: SN: 560001-UP
STANDARD
OVERSIZE 0.4MM
Using Komatsu WA470-6 Cylinder Head Serial 85001-90215 (ECOT3) Parts
Use the Komatsu WA470-6 Cylinder Head Serial 85001-90215 (ECOT3) Parts listing to identify aftermarket replacement parts within the engine section. This wheel loader application is listed for machine serial 85001-90215 (ECOT3); the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 43 listed part occurrences, including cylinder head ass'y (reference 6251-11-1100), insert,exhaust valve (std) (reference 6150-11-1320) and insert, 0.25mm,exhaust valve (os) (reference 6150-19-1320). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
The source engine application is SAA6D125E-5D-01 (engine serial 560001-UP). Match that engine identification as well as the machine serial range; the general machine model is not a substitute for engine-specific applicability.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
