Komatsu WA470-6 M0 Guard — Ladder (Fix) (Floor Lhs) Parts
Komatsu WA470-6 m0 guard — ladder (fix) (floor lhs) parts for machine serial H50051 - H50879. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: H52001 - Up / M0 Guard / Ladder (Fix) (Floor Lhs).
Checking current purchase options...

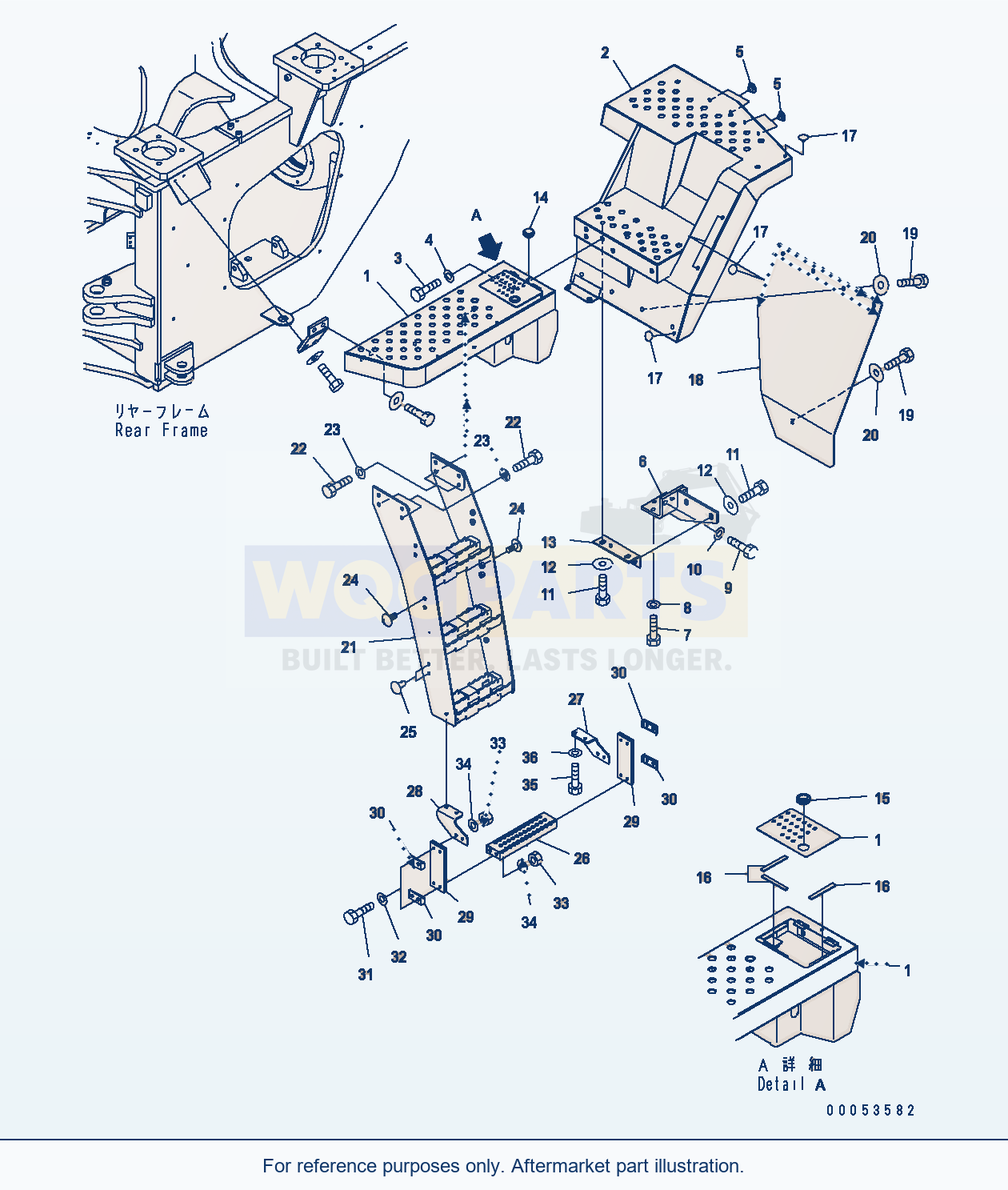

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 39 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | FLOOR, LHSSN: H50051-UP | 1 | Request quote | |||
| 2 | HINGESN: H50051-UP | 2 | Request quote | |||
| 2 | FLOOR, LHSSN: H50051-UP | 1 | Request quote | |||
| 3 | BOLTSN: H50051-UP | 4 | Request quote | |||
| 4 | WASHERSN: H50051-UP | 4 | View product ↗ | |||
| 5 | PLUGSN: H50051-UP | 4 | Request quote | |||
| 6 | BRACKET, LHSSN: H50051-UP | 1 | Request quote | |||
| 7 | BOLTSN: H50051-UP | 4 | Request quote | |||
| 8 | WASHERSN: H50051-UP | 4 | View product ↗ | |||
| 9 | BOLTSN: H50051-UP | 2 | Request quote | |||
| 10 | WASHERSN: H50051-UP | 2 | View product ↗ | |||
| 11 | BOLTSN: H50051-UP | 4 | Request quote | |||
| 12 | WASHERSN: H50051-UP | 4 | Request quote | |||
| 13 | BRACKETSN: H50051-UP | 1 | Request quote | |||
| 14 | CAPSN: H50051-UP | 1 | Request quote | |||
| 15 | GROMMETSN: H50051-UP | 1 | View product ↗ | |||
| 16 | CUSHIONSN: H50051-UP | 3 | Request quote | |||
| 17 | CAPSN: H50051-UP | 4 | Request quote | |||
| 18 | SHEET, LHSSN: H50051-UP | 1 | Request quote | |||
| 19 | BOLTSN: H50051-UP | 5 | Request quote | |||
| 20 | WASHERSN: H50051-UP | 5 | View product ↗ | |||
| 21 | LADDERSN: H50762-UP | 1 | Request quote | |||
| 23 | LADDERSN: H50051-H50761 | 1 | Request quote | |||
| 22 | BOLTSN: H50051-UP | 4 | Request quote | |||
| 23 | WASHERSN: H50051-UP | 4 | View product ↗ | |||
| 24 | CAPSN: H50051-UP | 4 | Request quote | |||
| 25 | PLUGSN: H50051-UP | 2 | Request quote | |||
| 26 | STEPSN: H50051-UP | 1 | Request quote | |||
| 27 | PLATESN: H50051-UP | 1 | Request quote | |||
| 28 | PLATESN: H50051-UP | 1 | Request quote | |||
| 29 | RUBBERSN: H50762-UP | 2 | Request quote | |||
| 32 | RUBBERSN: H50051-H50761 | 2 | Request quote | |||
| 30 | PLATESN: H50051-UP | 4 | Request quote | |||
| 31 | BOLTSN: H50051-UP | 8 | Request quote | |||
| 32 | WASHERSN: H50051-UP | 8 | View product ↗ | |||
| 33 | NUTSN: H50051-UP | 8 | Request quote | |||
| 34 | WASHERSN: H50051-UP | 8 | View product ↗ | |||
| 35 | BOLTSN: H50051-UP | 4 | Request quote | |||
| 36 | WASHERSN: H50051-UP | 4 | View product ↗ |
