Komatsu WA470-6 Wheel Loader M0 Guard — Rear Fender Parts

Komatsu WA470-6 m0 guard — rear fender parts for machine serial H50051 - H50879. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.

Catalog configuration: H52001 - Up / M0 Guard / Rear Fender.

WA470-6Machine serial H50051 - H5087940 part occurrences

Checking current purchase options...

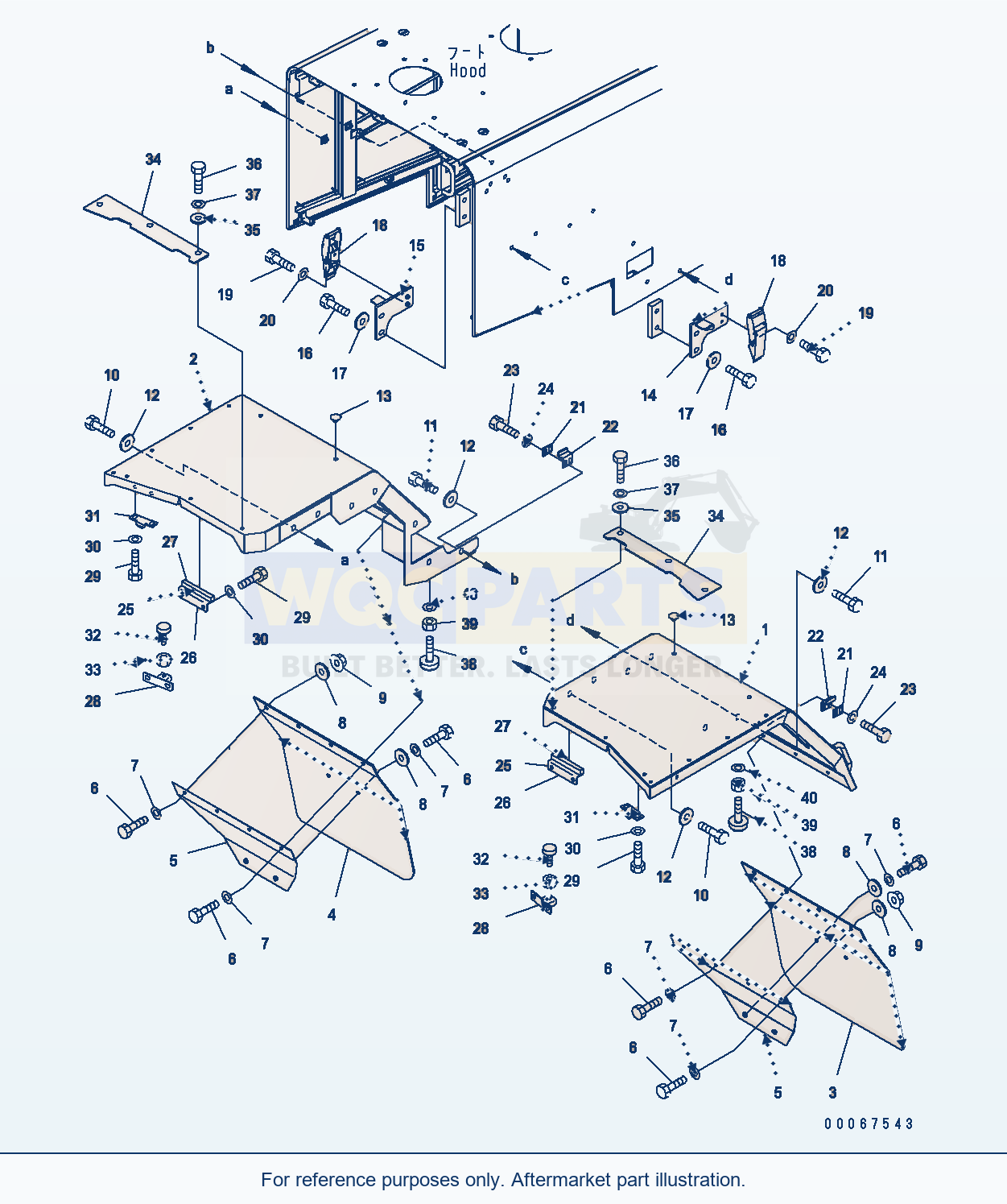

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.

Assembly parts

Showing all 40 part occurrences

Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.

Line	Description	Qty	Purchase options
1	FENDER, LHSSN: H50051-UP	1	Request quote
2	FENDER, RHSSN: H50051-UP	1	Request quote
3	RUBBER, REARSN: H50051-UP	1	Request quote
4	RUBBER, REARSN: H50051-UP	1	Request quote
5	PLATESN: H50051-UP	2	Request quote
6	BOLTSN: H50051-UP	12	Request quote
7	WASHERSN: H50051-UP	12	View product ↗
8	WASHERSN: H50051-UP	6	Request quote
9	NUTSN: H50051-UP	2	Request quote
10	BOLTSN: H50051-UP	12	Request quote
11	BOLTSN: H50051-UP	2	Request quote
12	WASHERSN: H50051-UP	14	View product ↗
13	PLUGSN: H50051-UP	4	Request quote
14	BRACKET, LHSSN: H50051-UP	1	Request quote
15	BRACKET, RHSSN: H50051-UP	1	Request quote
16	BOLTSN: H50051-UP	4	Request quote
17	WASHERSN: H50051-UP	4	Request quote
18	CATCH ASSEMBLYSN: H50051-UP	2	Request quote
19	BOLTSN: H50051-UP	4	Request quote
20	WASHERSN: H50051-UP	4	View product ↗
21	PLATESN: H50051-UP	2	Request quote
22	HOOKSN: H50051-UP	2	Request quote
23	BOLTSN: H50051-UP	4	Request quote
24	WASHERSN: H50051-UP	4	View product ↗
25	BRACKETSN: H50051-UP	2	Request quote
26	BRACKETSN: H50051-UP	2	Request quote
27	CUSHIONSN: H50051-UP	2	Request quote
28	BRACKETSN: H50051-UP	2	Request quote
29	BOLTSN: H50051-UP	12	Request quote
30	WASHERSN: H50051-UP	12	View product ↗
31	BRACKETSN: H50051-UP	2	Request quote
32	STOPPERSN: H50051-UP	2	Request quote
33	NUTSN: H50051-UP	2	View product ↗
34	SHEETSN: H50051-UP	2	Request quote
35	COLLARSN: H50051-UP	6	Request quote
36	BOLTSN: H50051-UP	6	Request quote
37	WASHERSN: H50051-UP	6	View product ↗
38	STOPPERSN: H50051-UP	2	Request quote
39	NUTSN: H50051-UP	2	View product ↗
40	WASHERSN: H50051-UP	4	View product ↗

Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
