Komatsu WA470-6 Operator'S Seat (Kab) (Inner Parts) (|K00320) Parts
Komatsu WA470-6 operator's seat (kab) (inner parts) (|k00320) parts for machine serial DZAD20001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: K0 [Operator'S Compartment And Control System] / Operator'S Seat (Kab) (Inner Parts) (|K00320).
Checking current purchase options...

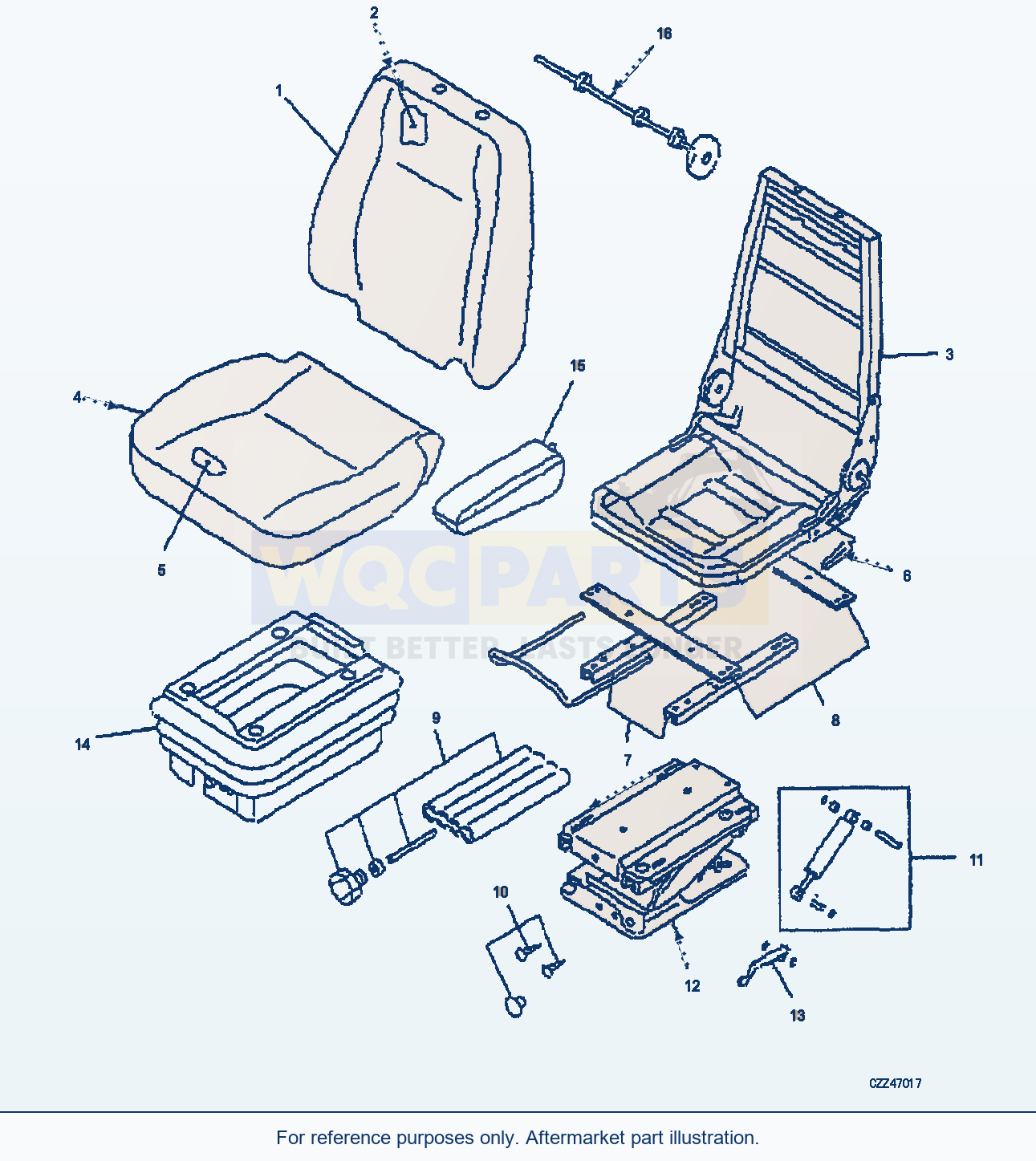

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 18 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | SEAT ASSEMBLYField_1: SEAT ASSEMBLY, Field_2: DZAD0001-. | 1 | Request quote | |||
| 2 | SEAT ASSEMBLYField_1: SEAT ASSEMBLY, Field_2: DZAD0001-, code: B1 | 1 | Request quote | |||
| 1 | BACK COVER KITField_1: BACK COVER KIT, Field_2: DZAD0001- | 1 | Request quote | |||
| 2 | BACK FOAM KITField_1: BACK FOAM KIT, Field_2: DZAD0001- | 1 | Request quote | |||
| 3 | SEAT FRAME KITField_1: SEAT FRAME KIT, Field_2: DZAD0001- | 1 | Request quote | |||
| 4 | SEAT COVER KITField_1: SEAT COVER KIT, Field_2: DZAD0001- | 1 | Request quote | |||
| 5 | SEAT FOAM KITField_1: SEAT FOAM KIT, Field_2: DZAD0001- | 1 | Request quote | |||
| 6 | KNOB KITField_1: KNOB KIT, Field_2: DZAD0001- | 1 | Request quote | |||
| 7 | FORE & AFT ADJUSTMENTField_1: FORE & AFT ADJUSTMENT, Field_2: DZAD0001- | 1 | Request quote | |||
| 8 | CROSS STRAP KITField_1: CROSS STRAP KIT, Field_2: DZAD0001- | 1 | Request quote | |||
| 9 | WEIGHT ADJUSTMENTField_1: WEIGHT ADJUSTMENT, Field_2: DZAD0001- | 1 | Request quote | |||
| 10 | UP STOP/BUMP STOP KITField_1: UP STOP/BUMP STOP KIT, Field_2: DZAD0001- | 1 | Request quote | |||
| 11 | DAMPER KITField_1: DAMPER KIT, Field_2: DZAD0001- | 1 | Request quote | |||
| 12 | SUSPENSION KITField_1: SUSPENSION KIT, Field_2: DZAD0001- | 1 | Request quote | |||
| 13 | RIDE INDICATOR KITField_1: RIDE INDICATOR KIT, Field_2: DZAD0001- | 1 | Request quote | |||
| 14 | SUSPENSION COVER KITField_1: SUSPENSION COVER KIT, Field_2: DZAD0001- | 1 | Request quote | |||
| 15 | ARM REST KIT L.HField_1: ARM REST KIT L.H, Field_2: DZAD0001- | 1 | Request quote | |||
| 16 | MECHANICAL LUMBER KITField_1: MECHANICAL LUMBER KIT, Field_2: DZAD0001- | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA470-6 Operator'S Seat (Kab) (Inner Parts) (|K00320) Parts
Use the Komatsu WA470-6 Operator'S Seat (Kab) (Inner Parts) (|K00320) Parts listing to identify aftermarket replacement parts within the k0 [operator's compartment and control system] section. This wheel loader application is listed for machine serial DZAD20001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 18 listed part occurrences, including seat assembly (reference 418-57-D1121), seat assembly (reference 418-57-D1120) and back cover kit (reference 198470). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For operator-compartment and control parts, compare the cab arrangement and equipment options identified on the assembly page. Retain any handedness and connection details when selecting a part or requesting assistance.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
