K0 [Operator'S Compartment And Control System]

Komatsu WA470-6 Rops Cab (Monocoque) (Door R.H.) (|K00328) Parts

Komatsu WA470-6 rops cab (monocoque) (door r.h.) (|k00328) parts for machine serial DZAD20001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.

Catalog configuration: K0 [Operator'S Compartment And Control System] / Rops Cab (Monocoque) (Door R.H.) (|K00328).

WA470-6Machine serial DZAD20001-UP40 part occurrences

Checking current purchase options...

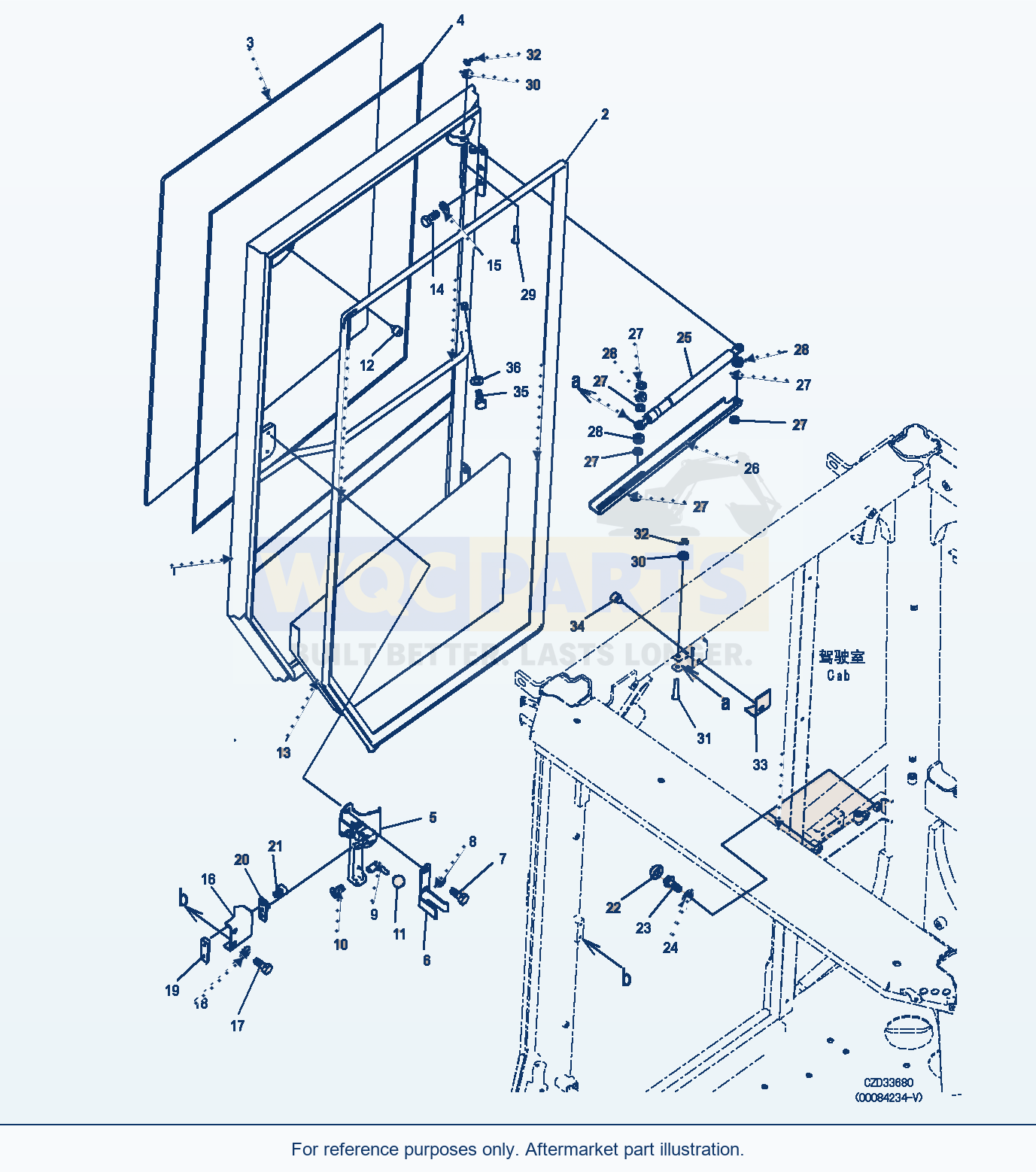

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.

Assembly parts

Showing all 40 part occurrences

Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.

Line	Description	Qty	Purchase options
1	ROPS CAB G.Field_1: ROPS CAB G., Field_2: .-	1	Request quote
2	ROPS CAB G.Field_1: ROPS CAB G., Field_2: .-., code: A2	1	Request quote
3	DOOR ASSY RHField_1: DOOR ASSY RH, Field_2: DZAD0001-	1	Request quote
1	DOOR ASSEMBLYField_1: DOOR ASSEMBLY, Field_2: DZAD0001-	1	Request quote
5	HINGE, WELDEDField_1: HINGE, WELDED, Field_2: DZAD0001-	2	Request quote
2	SEALField_1: SEAL, Field_2: DZAD0001-	1	Request quote
3	GLASSField_1: GLASS, Field_2: DZAD0001-	1	Request quote
4	DAMField_1: DAM, Field_2: DZAD0001-	1	Request quote
5	LOCK ASSEMBLYField_1: LOCK ASSEMBLY, Field_2: DZAD0001-	1	Request quote
6	PLATEField_1: PLATE, Field_2: DZAD0001-	1	Request quote
7	BOLTField_1: BOLT, Field_2: DZAD0001-	2	Request quote
8	WASHERField_1: WASHER, Field_2: DZAD0001-	2	Request quote
9	BRACKETField_1: BRACKET, Field_2: DZAD0001-	1	Request quote
10	SCREW, PHILIPS HEADField_1: SCREW, PHILIPS HEAD, Field_2: DZAD0001-	1	Request quote
11	KNOBField_1: KNOB, Field_2: DZAD0001-	1	Request quote
12	STOPPERField_1: STOPPER, Field_2: DZAD0001-	1	Request quote
13	SHEETField_1: SHEET, Field_2: DZAD0001-	1	Request quote
14	BOLTField_1: BOLT, Field_2: DZAD0001-	6	Request quote
15	WASHERField_1: WASHER, Field_2: DZAD0001-	6	View product ↗
16	BRACKETField_1: BRACKET, Field_2: DZAD0001-	1	Request quote
17	BOLTField_1: BOLT, Field_2: DZAD0001-	2	Request quote
18	WASHERField_1: WASHER, Field_2: DZAD0001-	2	View product ↗
19	PLATEField_1: PLATE, Field_2: DZAD0001-	1	Request quote
20	STRIKERField_1: STRIKER, Field_2: DZAD0001-	1	Request quote
21	SCREWField_1: SCREW, Field_2: DZAD0001-	2	Request quote
22	CAPField_1: CAP, Field_2: DZAD0001-	2	Request quote
23	BOLTField_1: BOLT, Field_2: DZAD0001-	2	View product ↗
24	WASHERField_1: WASHER, Field_2: .-	2	Request quote
29	WASHERField_1: WASHER, Field_2: DZAD0001-., code: A2	2	View product ↗
25	SPRING, GASField_1: SPRING, GAS, Field_2: DZAD0001-	1	Request quote
26	PLATEField_1: PLATE, Field_2: DZAD0001-	1	Request quote
27	WASHERField_1: WASHER, Field_2: DZAD0001-	6	Request quote
28	SPACERField_1: SPACER, Field_2: DZAD0001-	3	Request quote
29	PINField_1: PIN, Field_2: DZAD0001-	1	Request quote
30	WASHERField_1: WASHER, Field_2: DZAD0001-	2	Request quote
31	PINField_1: PIN, Field_2: DZAD0001-	1	Request quote
32	PIN, COTTERField_1: PIN, COTTER, Field_2: DZAD0001-	2	Request quote
33	SHEETField_1: SHEET, Field_2: DZAD0001-	1	Request quote
34	STOPPERField_1: STOPPER, Field_2: DZAD0001-	1	Request quote
35	BOLTField_1: BOLT, Field_2: DZAD0001-	3	Request quote

Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.

Assembly notes

Catalog sitemap

Using Komatsu WA470-6 Rops Cab (Monocoque) (Door R.H.) (|K00328) Parts

Use the Komatsu WA470-6 Rops Cab (Monocoque) (Door R.H.) (|K00328) Parts listing to identify aftermarket replacement parts within the k0 [operator's compartment and control system] section. This wheel loader application is listed for machine serial DZAD20001-UP; the diagram and parts table retain the selected configuration and its source notes.

The parts table contains 40 listed part occurrences, including rops cab g. (reference X81-0601567), rops cab g. (reference X81-0601561) and door assy rh (reference X25-0886041). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.

For operator-compartment and control parts, compare the cab arrangement and equipment options identified on the assembly page. Retain any handedness and connection details when selecting a part or requesting assistance.

Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
