Komatsu WA470-6 Rops Cab (Monocoque) (Mark And Plate) (|K00336) Parts
Komatsu WA470-6 rops cab (monocoque) (mark and plate) (|k00336) parts for machine serial DZAD20001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: K0 [Operator'S Compartment And Control System] / Rops Cab (Monocoque) (Mark And Plate) (|K00336).
Checking current purchase options...

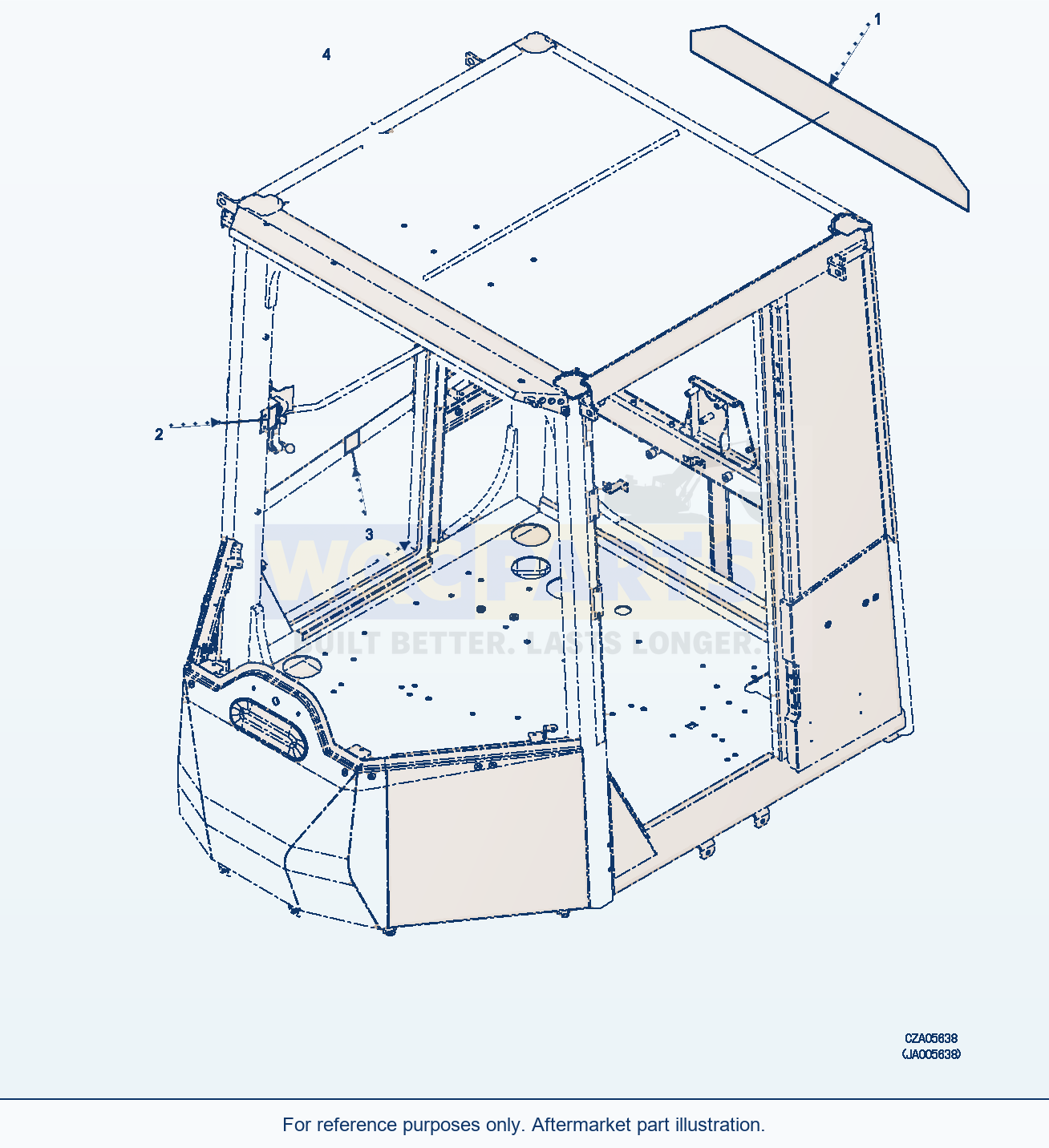

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 5 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | ROPS CAB G.F/KCCMField_1: ROPS CAB G.F/KCCM, Field_2: .- | 1 | Request quote | |||
| 2 | ROPS CAB G.F/KCCMField_1: ROPS CAB G.F/KCCM, Field_2: .-., code: A2 | 1 | Request quote | |||
| 1 | PLATE, KOMATSU LOGOField_1: PLATE, KOMATSU LOGO, Field_2: DZAD0001- | 1 | Request quote | |||
| 2 | DECAL, EMERGENCY EXITField_1: DECAL, EMERGENCY EXIT, Field_2: DZAD0001- | 1 | Request quote | |||
| 3 | PLATE, EMERGENCY ESCAPE DOORField_1: PLATE, EMERGENCY ESCAPE DOOR, Field_2: DZAD0001- | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA470-6 Rops Cab (Monocoque) (Mark And Plate) (|K00336) Parts
Use the Komatsu WA470-6 Rops Cab (Monocoque) (Mark And Plate) (|K00336) Parts listing to identify aftermarket replacement parts within the k0 [operator's compartment and control system] section. This wheel loader application is listed for machine serial DZAD20001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 5 listed part occurrences, including rops cab g.f/kccm (reference X81-0601567), rops cab g.f/kccm (reference X81-0601561) and plate, komatsu logo (reference 417-926-3711). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For operator-compartment and control parts, compare the cab arrangement and equipment options identified on the assembly page. Retain any handedness and connection details when selecting a part or requesting assistance.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
