Komatsu WA470-6 Hood (Rear Grille(Sheet)) (|M00446) Parts
Komatsu WA470-6 hood (rear grille(sheet)) (|m00446) parts for machine serial DZAD20001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: M0 [Guards And Covers] / Hood (Rear Grille(Sheet)) (|M00446).
Checking current purchase options...

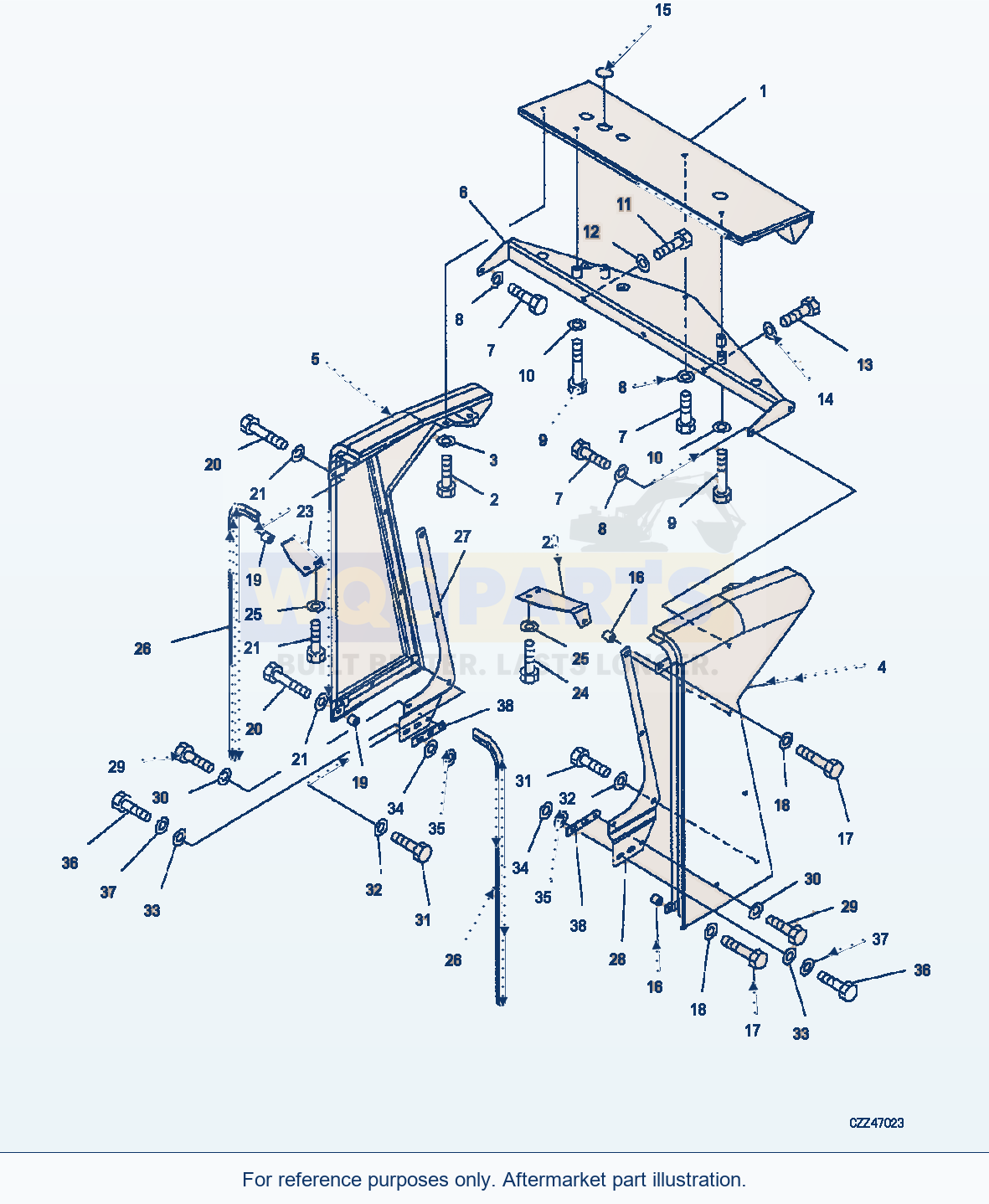

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 40 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | GRILLE TOPField_1: GRILLE TOP, Field_2: DZAD0182- | 1 | Request quote | |||
| 2 | BOLTField_1: BOLT, Field_2: DZAD0182- | 4 | Request quote | |||
| 3 | WASHERField_1: WASHER, Field_2: DZAD0182- | 4 | View product ↗ | |||
| 4 | GRILLE LHField_1: GRILLE LH, Field_2: DZAD0234- | 1 | Request quote | |||
| 5 | GRILLE LHField_1: GRILLE LH, Field_2: DZAD0182-DZAD0233, code: A2 | 1 | Request quote | |||
| 5 | GRILLE RHField_1: GRILLE RH, Field_2: DZAD0234- | 1 | Request quote | |||
| 7 | GRILLE RHField_1: GRILLE RH, Field_2: DZAD0182-DZAD0233, code: A2 | 1 | Request quote | |||
| 6 | BRACKETField_1: BRACKET, Field_2: DZAD0182- | 1 | Request quote | |||
| 7 | BOLTField_1: BOLT, Field_2: DZAD0182- | 5 | Request quote | |||
| 8 | WASHERField_1: WASHER, Field_2: DZAD0182- | 5 | View product ↗ | |||
| 9 | BOLTField_1: BOLT, Field_2: DZAD0182- | 2 | Request quote | |||
| 10 | WASHERField_1: WASHER, Field_2: DZAD0182- | 2 | View product ↗ | |||
| 11 | BOLTField_1: BOLT, Field_2: DZAD0182- | 1 | Request quote | |||
| 12 | WASHERField_1: WASHER, Field_2: DZAD0182- | 1 | View product ↗ | |||
| 13 | BOLTField_1: BOLT, Field_2: DZAD0182- | 2 | Request quote | |||
| 14 | WASHERField_1: WASHER, Field_2: DZAD0182- | 2 | View product ↗ | |||
| 15 | CAPField_1: CAP, Field_2: DZAD0182- | 2 | Request quote | |||
| 16 | SPACERField_1: SPACER, Field_2: DZAD0182- | 2 | Request quote | |||
| 17 | BOLTField_1: BOLT, Field_2: DZAD0182- | 2 | Request quote | |||
| 18 | WASHERField_1: WASHER, Field_2: DZAD0182- | 2 | View product ↗ | |||
| 19 | SPACERField_1: SPACER, Field_2: DZAD0182- | 2 | Request quote | |||
| 20 | BOLTField_1: BOLT, Field_2: DZAD0182- | 2 | Request quote | |||
| 21 | WASHERField_1: WASHER, Field_2: DZAD0182- | 2 | View product ↗ | |||
| 22 | BRACKET LHField_1: BRACKET LH, Field_2: DZAD0182- | 1 | Request quote | |||
| 23 | BRACKET RHField_1: BRACKET RH, Field_2: DZAD0182- | 1 | Request quote | |||
| 24 | BOLTField_1: BOLT, Field_2: DZAD0182- | 4 | Request quote | |||
| 25 | WASHERField_1: WASHER, Field_2: DZAD0182- | 4 | View product ↗ | |||
| 26 | SEAL DOORField_1: SEAL DOOR, Field_2: DZAD0182- | 2 | Request quote | |||
| 27 | PLATE RHField_1: PLATE RH, Field_2: DZAD0182- | 1 | Request quote | |||
| 28 | PLATE LHField_1: PLATE LH, Field_2: DZAD0182- | 1 | Request quote | |||
| 29 | BOLTField_1: BOLT, Field_2: DZAD0182- | 2 | Request quote | |||
| 30 | WASHERField_1: WASHER, Field_2: DZAD0182- | 2 | View product ↗ | |||
| 31 | BOLTField_1: BOLT, Field_2: DZAD0182- | 8 | Request quote | |||
| 32 | WASHERField_1: WASHER, Field_2: DZAD0182- | 8 | View product ↗ | |||
| 33 | WASHERField_1: WASHER, Field_2: DZAD0182- | 4 | View product ↗ | |||
| 34 | WASHERField_1: WASHER, Field_2: DZAD0182- | 4 | View product ↗ | |||
| 35 | WASHERField_1: WASHER, Field_2: DZAD0182- | 4 | View product ↗ | |||
| 36 | BOLTField_1: BOLT, Field_2: DZAD0182- | 4 | Request quote | |||
| 37 | WASHERField_1: WASHER, Field_2: DZAD0182- | 4 | View product ↗ | |||
| 38 | BRACKETField_1: BRACKET, Field_2: DZAD0182- | 2 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA470-6 Hood (Rear Grille(Sheet)) (|M00446) Parts
Use the Komatsu WA470-6 Hood (Rear Grille(Sheet)) (|M00446) Parts listing to identify aftermarket replacement parts within the m0 [guards and covers] section. This wheel loader application is listed for machine serial DZAD20001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 40 listed part occurrences, including grille top (reference 421-54-D1961), grille lh (reference 421-54-D1972) and grille lh (reference 421-54-D1971). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
