Komatsu WA470-6 Rim (Gkn,26.5-25 Tubeless Tires) (|S00481) Parts
Komatsu WA470-6 rim (gkn,26.5-25 tubeless tires) (|s00481) parts for machine serial DZAD20001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: S0 [Suspension, Wheel And Their Related Parts] / Rim (Gkn,26.5-25 Tubeless Tires) (|S00481).
Checking current purchase options...

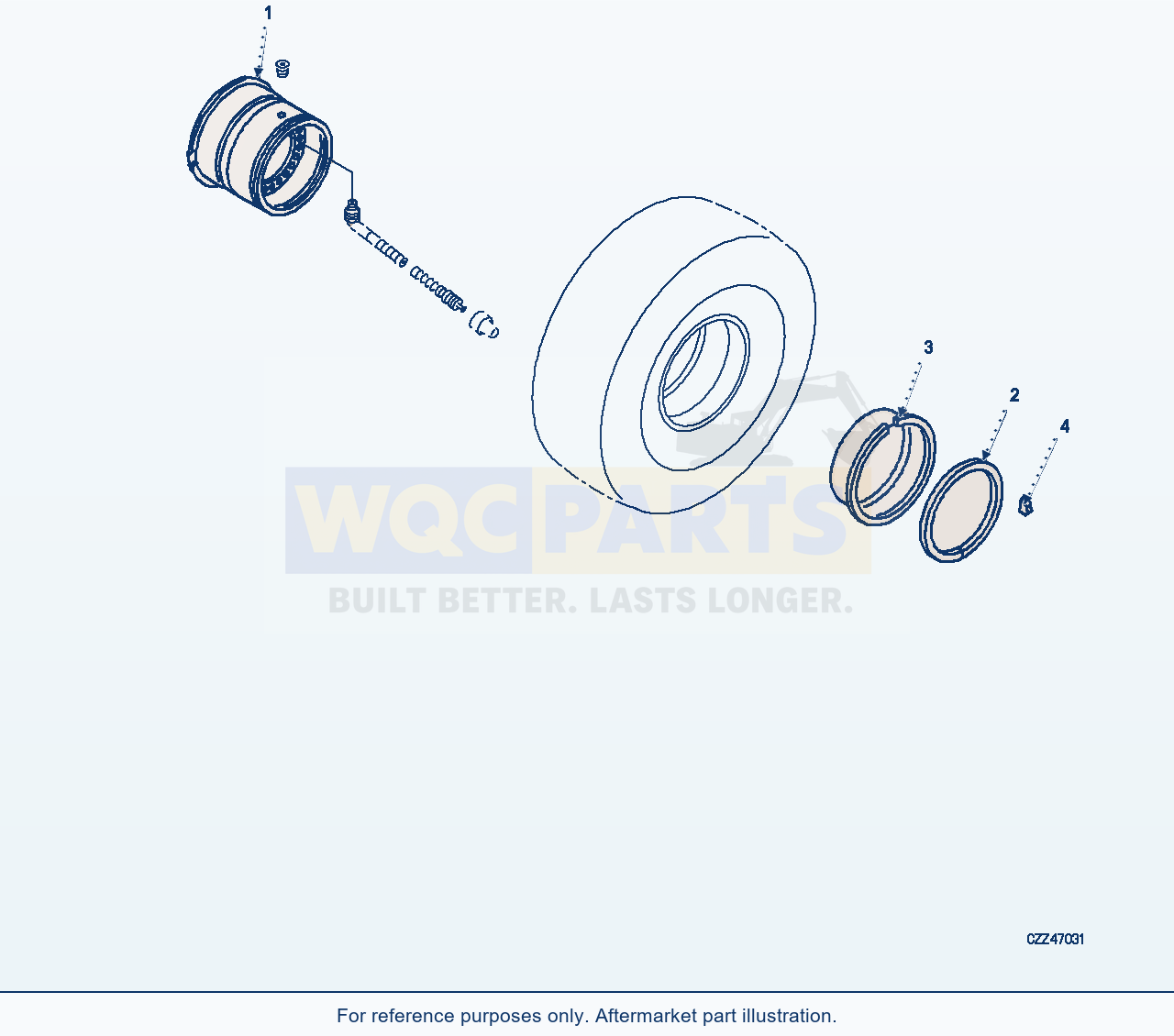

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 5 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | RIM ASS'YField_1: RIM ASS'Y, Field_2: DZAD0249- | 1 | Request quote | |||
| 1 | RIM BASEField_1: RIM BASE, Field_2: DZAD0249- | 1 | Request quote | |||
| 2 | RING LOCKField_1: RING LOCK, Field_2: DZAD0249- | 1 | Request quote | |||
| 3 | FLANGEField_1: FLANGE, Field_2: DZAD0249- | 1 | Request quote | |||
| 4 | DRIVERField_1: DRIVER, Field_2: DZAD0249- | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA470-6 Rim (Gkn,26.5-25 Tubeless Tires) (|S00481) Parts
Use the Komatsu WA470-6 Rim (Gkn,26.5-25 Tubeless Tires) (|S00481) Parts listing to identify aftermarket replacement parts within the s0 [suspension, wheel and their related parts] section. This wheel loader application is listed for machine serial DZAD20001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 5 listed part occurrences, including rim ass'y (reference 421-30-62201), rim base (reference 421-30-62210) and ring lock (reference 56D-30-51420). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
