Komatsu WA470-6A Oil Pan And Suction Tube (#567555-) Parts
Komatsu WA470-6A oil pan and suction tube (#567555-) parts for machine serial 90216-UP (FOR NORTH AMERICA). View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: SAA6D125E-5D S/N 567555-UP (For WA470-6/WA470-6A) / Engine Cylinder Block And Its Related Parts / Oil Pan And Suction Tube / Oil Pan And Suction Tube (#567555-).
Checking current purchase options...

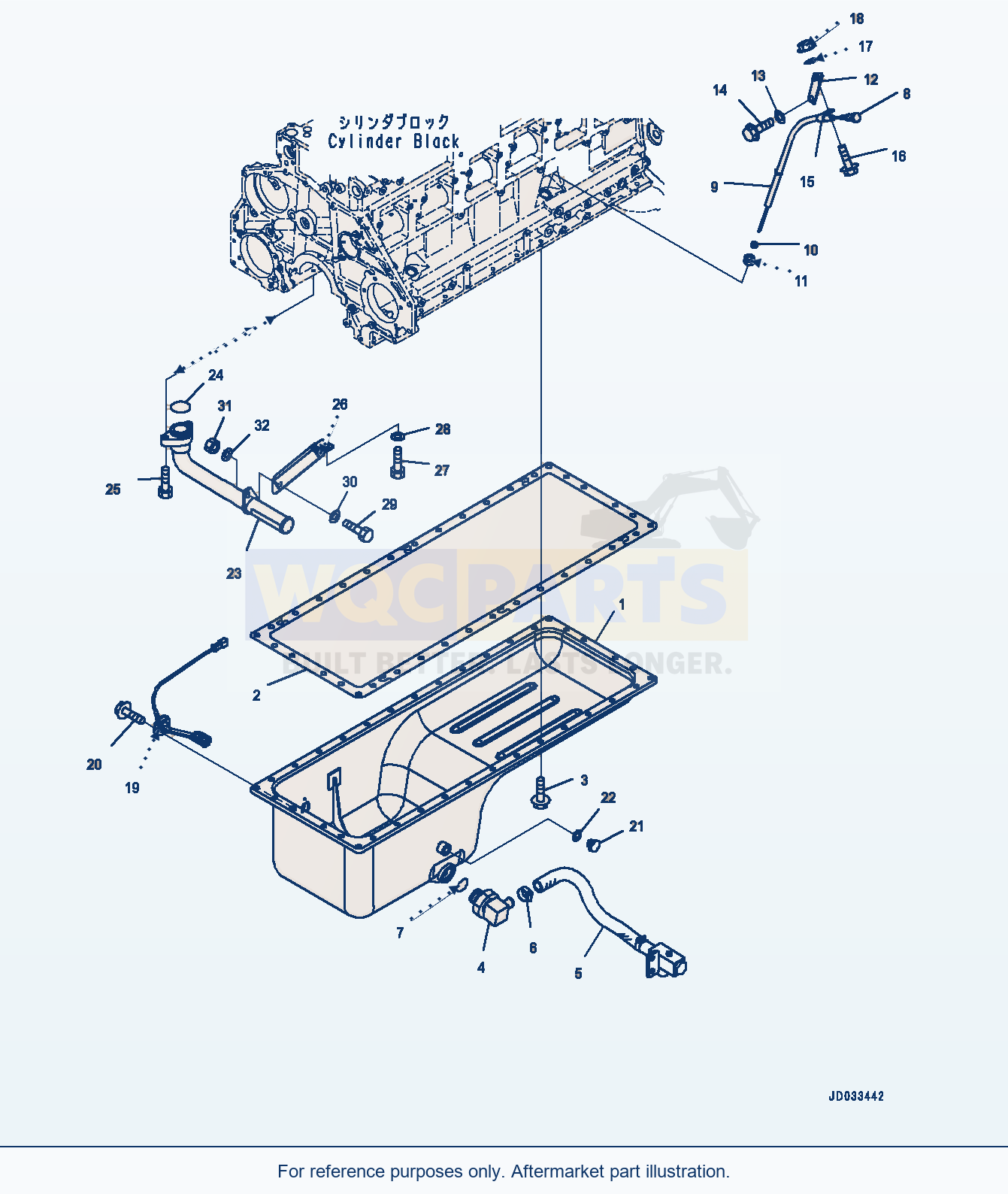

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 34 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | PAN, OILSN: 567555-UP | 1 | Request quote | |||
| 2 | GASKETSN: 567555-UP, KIT-FLAG: S | 1 | View product ↗ | |||
| 3 | BOLTSN: 567555-UP | 36 | View product ↗ | |||
| 3 | HOSE ASSEMBLY, OIL DRAINSN: 567555-UP | 1 | Request quote | |||
| 4 | ELBOW ASSEMBLYSN: 567555-UP | 1 | Request quote | |||
| 5 | HOSE ASSEMBLYSN: 567555-UP | 1 | Request quote | |||
| 6 | CLAMP, HOSESN: 567555-UP | 1 | View product ↗ | |||
| 7 | O-RINGSN: 567555-UP, KIT-FLAG: S | 1 | View product ↗ | |||
| 8 | GAUGESN: 567555-UP | 1 | View product ↗ | |||
| 9 | GUIDE, OIL GAUGESN: 567555-UP | 1 | Request quote | |||
| 10 | COLLARSN: 567555-UP | 1 | Request quote | |||
| 11 | NUTSN: 567555-UP | 1 | Request quote | |||
| 12 | BRACKETSN: 567555-UP | 1 | Request quote | |||
| 13 | WASHERSN: 567555-UP | 1 | View product ↗ | |||
| 14 | BOLTSN: 567555-UP | 1 | View product ↗ | |||
| 15 | CLIPSN: 567555-UP | 1 | Request quote | |||
| 16 | BOLTSN: 567555-UP | 1 | View product ↗ | |||
| 17 | WASHERSN: 567555-UP | 1 | View product ↗ | |||
| 18 | NUTSN: 567555-UP | 1 | View product ↗ | |||
| 19 | SENSOR, OIL LEVELSN: 567555-UP | 1 | View product ↗ | |||
| 19 | O-RINGSN: 567555-UP, KIT-FLAG: S | 1 | View product ↗ | |||
| 20 | BOLTSN: 567555-UP | 3 | Request quote | |||
| 21 | BOLTSN: 567555-UP | 1 | Request quote | |||
| 22 | SEAL, WASHERSN: 567555-UP, KIT-FLAG: S | 1 | View product ↗ | |||
| 23 | STRAINERSN: 567555-UP | 1 | Request quote | |||
| 24 | O-RINGSN: 567555-UP, KIT-FLAG: S | 1 | View product ↗ | |||
| 25 | BOLTSN: 567555-UP | 2 | Request quote | |||
| 26 | BRACKETSN: 567555-UP | 1 | Request quote | |||
| 27 | BOLTSN: 567555-UP | 1 | Request quote | |||
| 28 | WASHERSN: 567555-UP | 1 | View product ↗ | |||
| 29 | BOLTSN: 567555-UP | 1 | Request quote | |||
| 30 | WASHERSN: 567555-UP | 1 | View product ↗ | |||
| 31 | NUTSN: 567555-UP | 1 | View product ↗ | |||
| 32 | WASHERSN: 567555-UP | 1 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA470-6A Oil Pan And Suction Tube (#567555-) Parts
Use the Komatsu WA470-6A Oil Pan And Suction Tube (#567555-) Parts listing to identify aftermarket replacement parts within the engine cylinder block and its related parts section. This wheel loader application is listed for machine serial 90216-UP (FOR NORTH AMERICA); the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 34 listed part occurrences, including pan, oil (reference 6150-21-5550), gasket (reference 6150-21-5813) and hose assembly, oil drain (reference 6251-51-6620). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
The source engine application is SAA6D125E-5D (engine serial 567555-UP). Match that engine identification as well as the machine serial range; the general machine model is not a substitute for engine-specific applicability.
For cylinder-block and related engine components, compare the listed engine serial break and every row-specific option. Use the individual part reference rather than the diagram appearance to distinguish revisions.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
