Komatsu WA470-6A Engine Oil Filter And Piping (#567555-) Parts
Komatsu WA470-6A engine oil filter and piping (#567555-) parts for machine serial 90216-UP (FOR NORTH AMERICA). View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: SAA6D125E-5D S/N 567555-UP (For WA470-6/WA470-6A) / Engine Lubrication System / Engine Oil Filter And Piping / Engine Oil Filter And Piping (#567555-).
Checking current purchase options...

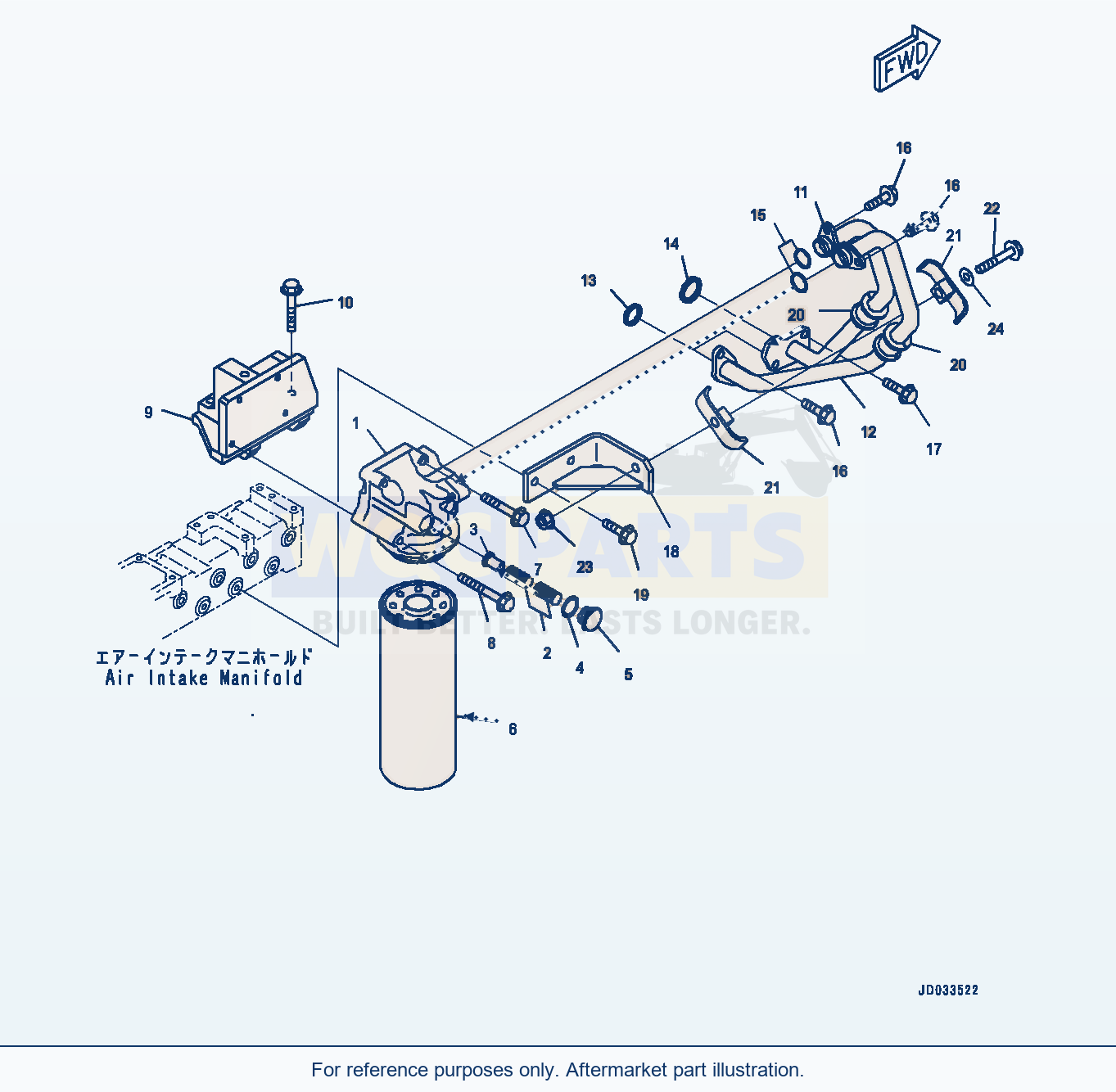

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 25 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | HEAD ASSEMBLY, OIL FILTERSN: 567555-UP | 1 | Request quote | |||
| 1 | HEADSN: 567555-UP | 1 | Request quote | |||
| 2 | SPRINGSN: 567555-UP | 1 | Request quote | |||
| 3 | VALVESN: 567555-UP | 1 | Request quote | |||
| 4 | PACKINGSN: 567555-UP, KIT-FLAG: S | 1 | View product ↗ | |||
| 5 | CAPSN: 567555-UP | 1 | Request quote | |||
| 6 | CARTRIDGESN: 567555-UP | 1 | View product ↗ | |||
| 7 | BOLTSN: 567555-UP | 2 | Request quote | |||
| 8 | BOLTSN: 567555-UP | 2 | Request quote | |||
| 9 | BRACKETSN: 567555-UP | 1 | Request quote | |||
| 10 | BOLTSN: 567555-UP | 1 | Request quote | |||
| 11 | TUBE,INLETSN: 567555-UP | 1 | Request quote | |||
| 12 | TUBE, RETURNSN: 567555-UP | 1 | Request quote | |||
| 13 | GROMMETSN: 567555-UP, KIT-FLAG: S | 2 | View product ↗ | |||
| 14 | GROMMETSN: 567555-UP, KIT-FLAG: S | 1 | View product ↗ | |||
| 15 | O-RINGSN: 567555-UP, KIT-FLAG: S | 2 | Request quote | |||
| 16 | BOLTSN: 567555-UP | 4 | View product ↗ | |||
| 17 | BOLTSN: 567555-UP | 3 | View product ↗ | |||
| 18 | BRACKETSN: 567555-UP | 1 | Request quote | |||
| 19 | BOLTSN: 567555-UP | 2 | View product ↗ | |||
| 20 | CUSHIONSN: 567555-UP | 2 | Request quote | |||
| 21 | CLAMPSN: 567555-UP | 2 | Request quote | |||
| 22 | BOLTSN: 567555-UP | 1 | Request quote | |||
| 23 | NUTSN: 567555-UP | 1 | Request quote | |||
| 24 | WASHERSN: 567555-UP | 1 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA470-6A Engine Oil Filter And Piping (#567555-) Parts
Use the Komatsu WA470-6A Engine Oil Filter And Piping (#567555-) Parts listing to identify aftermarket replacement parts within the engine lubrication system section. This wheel loader application is listed for machine serial 90216-UP (FOR NORTH AMERICA); the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 25 listed part occurrences, including head assembly, oil filter (reference 6217-51-5103), head (reference 6217-51-5112) and spring (reference 600-211-1890). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
The source engine application is SAA6D125E-5D (engine serial 567555-UP). Match that engine identification as well as the machine serial range; the general machine model is not a substitute for engine-specific applicability.
For lubrication-system components, match the engine application and the notes attached to the part number. This catalog identifies parts; it does not replace the service manual for lubricant selection or maintenance procedures.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
