Komatsu WA470-6A Name Plate And Warning Decal (#567555-) Parts
Komatsu WA470-6A name plate and warning decal (#567555-) parts for machine serial 90216-UP (FOR NORTH AMERICA). View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: SAA6D125E-5D S/N 567555-UP (For WA470-6/WA470-6A) / Engine Marks And Plates / Name Plate And Warning Decal / Name Plate And Warning Decal (#567555-).
Checking current purchase options...

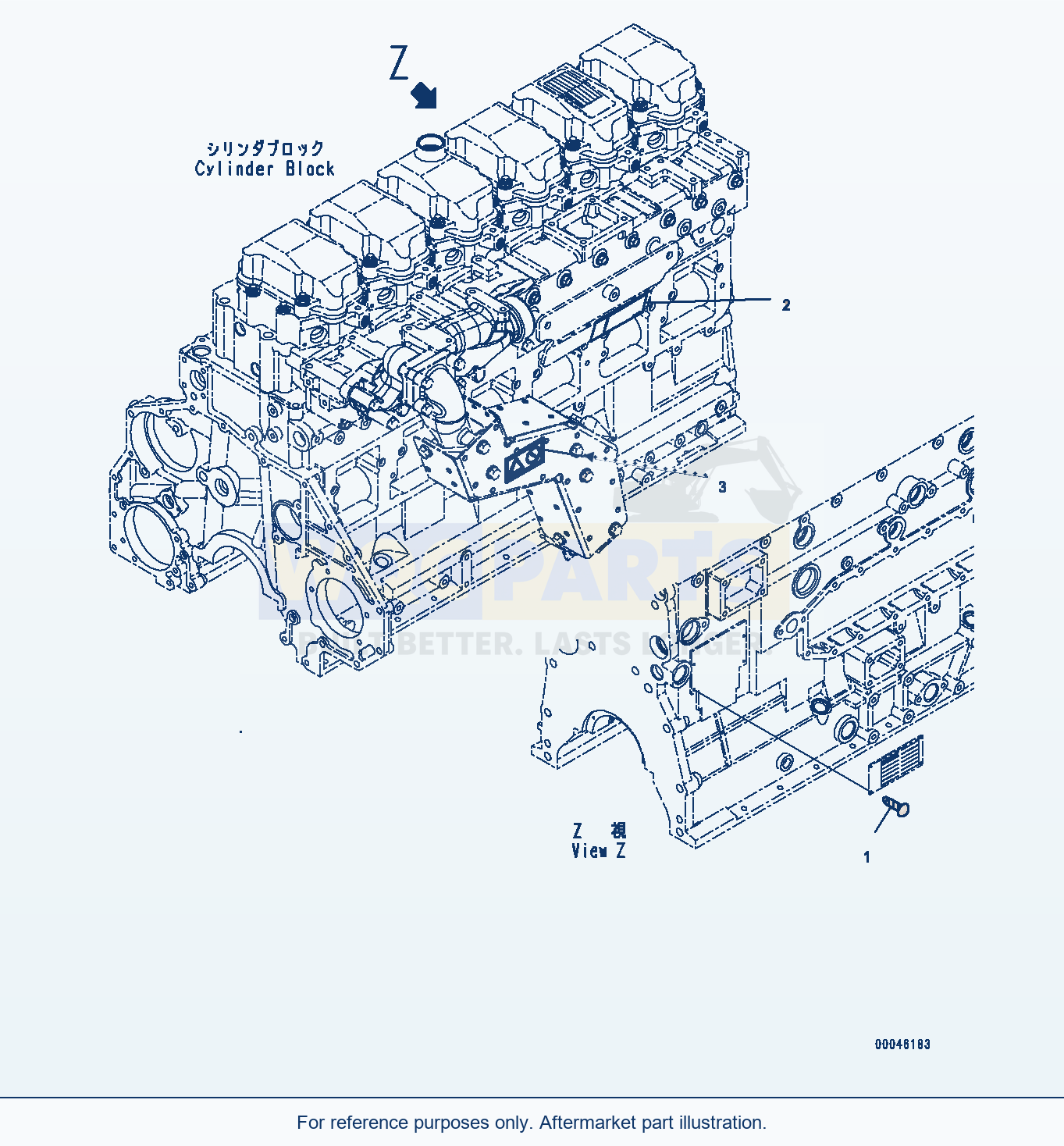

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 3 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | SCREWSN: 567555-UP | 4 | Request quote | |||
| 2 | PLATE, WARNINGSN: 567555-UP | 1 | Request quote | |||
| 3 | PLATE, WARNING, HIGH TEMPERATURESN: 567555-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA470-6A Name Plate And Warning Decal (#567555-) Parts
Use the Komatsu WA470-6A Name Plate And Warning Decal (#567555-) Parts listing to identify aftermarket replacement parts within the engine marks and plates section. This wheel loader application is listed for machine serial 90216-UP (FOR NORTH AMERICA); the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 3 listed part occurrences, including plate, warning (reference 6217-71-9331), plate, warning, high temperature (reference 09817-K088B) and screw (reference 04418-02550). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
The source engine application is SAA6D125E-5D (engine serial 567555-UP). Match that engine identification as well as the machine serial range; the general machine model is not a substitute for engine-specific applicability.
For identification and caution plates, compare the precise plate description and listed application. Do not substitute a plate solely because its shape or mounting position looks similar.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
