Komatsu WA470-7 Wheel Loader Crankshaft Parts
Komatsu WA470-7 crankshaft parts for machine serial A47001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Engine / Crankshaft.
Checking current purchase options...

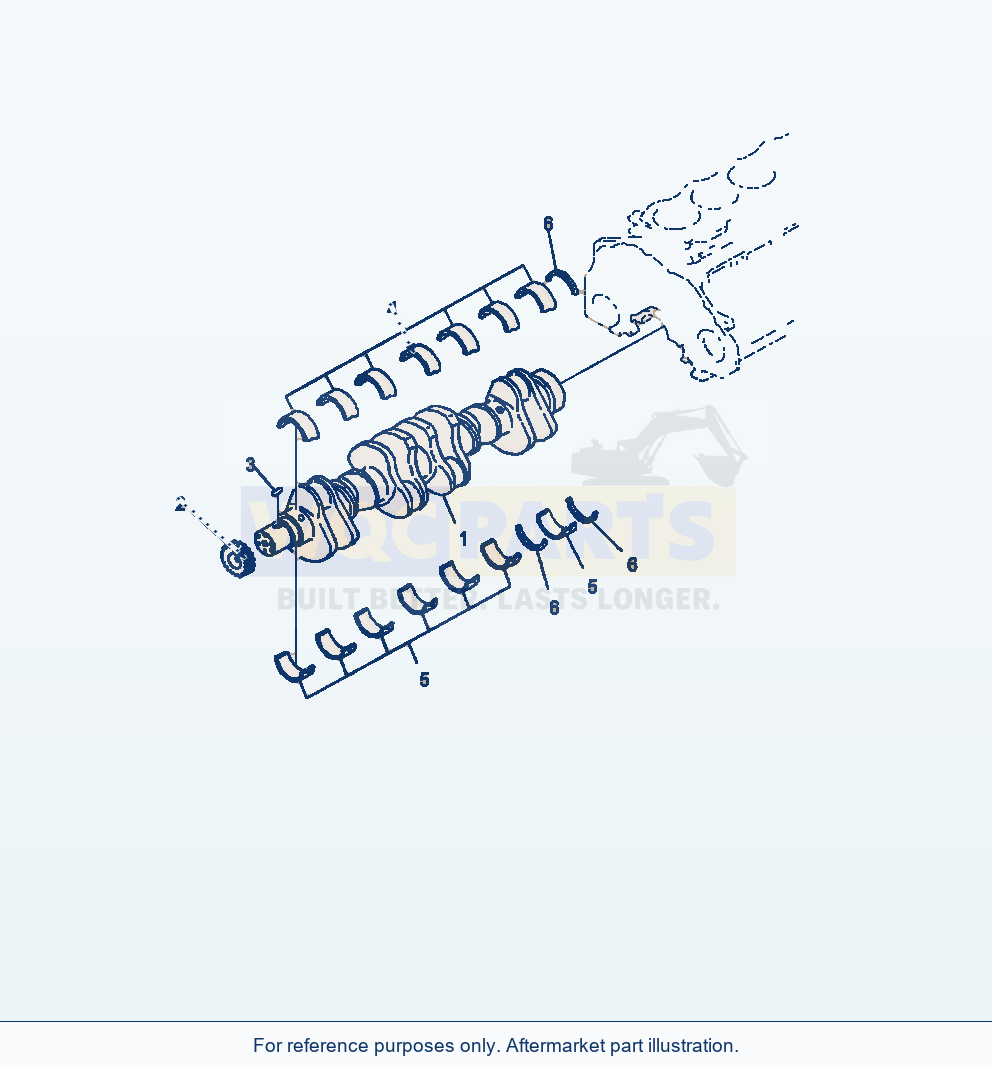

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 13 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | CRANKSHAFT ASSEMBLY | 1 | Request quote | |||
| 2 | GEAR, CRANKSHAFT | 1 | View product ↗ | |||
| 3 | KEY | 1 | Request quote | |||
| 4 | MAIN METAL ASSEMBLY, STANDARD | 7 | View product ↗ | |||
| 5 | MAIN METAL ASSEMBLY, UNDERSIZE 0.25MM | 7 | View product ↗ | |||
| 6 | MAIN METAL ASSEMBLY, UNDERSIZE 0.50MM | 7 | View product ↗ | |||
| 7 | MAIN METAL ASSEMBLY, UNDERSIZE 0.75MM | 7 | View product ↗ | |||
| 8 | MAIN METAL ASSEMBLY, UNDERSIZE 1.00MM | 7 | View product ↗ | |||
| 6 | METAL ASSEMBLY, STANDARD | 1 | View product ↗ | |||
| 20 | METAL ASSEMBLY, OVERSIZE 0.25MM | 1 | View product ↗ | |||
| 21 | METAL ASSEMBLY, OVERSIZE 0.50MM | 1 | View product ↗ | |||
| 22 | METAL ASSEMBLY, OVERSIZE 0.75MM | 1 | Request quote | |||
| 23 | METAL ASSEMBLY, OVERSIZE 1.00MM | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
CRANKSHAFT
METAL, STANDARD,UPPER
METAL, UNDERSIZE 0.25MM,UPPER
METAL, UNDERSIZE 0.50MM,UPPER
METAL, UNDERSIZE 0.75MM,UPPER
METAL, UNDERSIZE 1.00MM,UPPER
METAL, STANDARD,LOWER
METAL, UNDERSIZE 0.25MM,LOWER
METAL, UNDERSIZE 0.50MM,LOWER
METAL, UNDERSIZE 0.75MM,LOWER
METAL, UNDERSIZE 1.00MM,LOWER
METAL, THRUST STANDARD
METAL, THRUST OVERSIZE 0.25MM
METAL, THRUST OVERSIZE 0.50MM
METAL, THRUST OVERSIZE 0.75MM
METAL, THRUST OVERSIZE 1.00MM
Using Komatsu WA470-7 Wheel Loader Crankshaft Parts
Use the Komatsu WA470-7 Wheel Loader Crankshaft Parts listing to identify aftermarket replacement parts within the engine section. This wheel loader application is listed for machine serial A47001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 13 listed part occurrences, including crankshaft assembly (reference 6151-35-1010), gear, crankshaft (reference 6150-35-1120) and key (reference 6150-31-1130). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
