Komatsu WA470-7 Wheel Loader Fuel Controller Parts
Komatsu WA470-7 fuel controller parts for machine serial A47001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Engine / Fuel Controller.
Checking current purchase options...

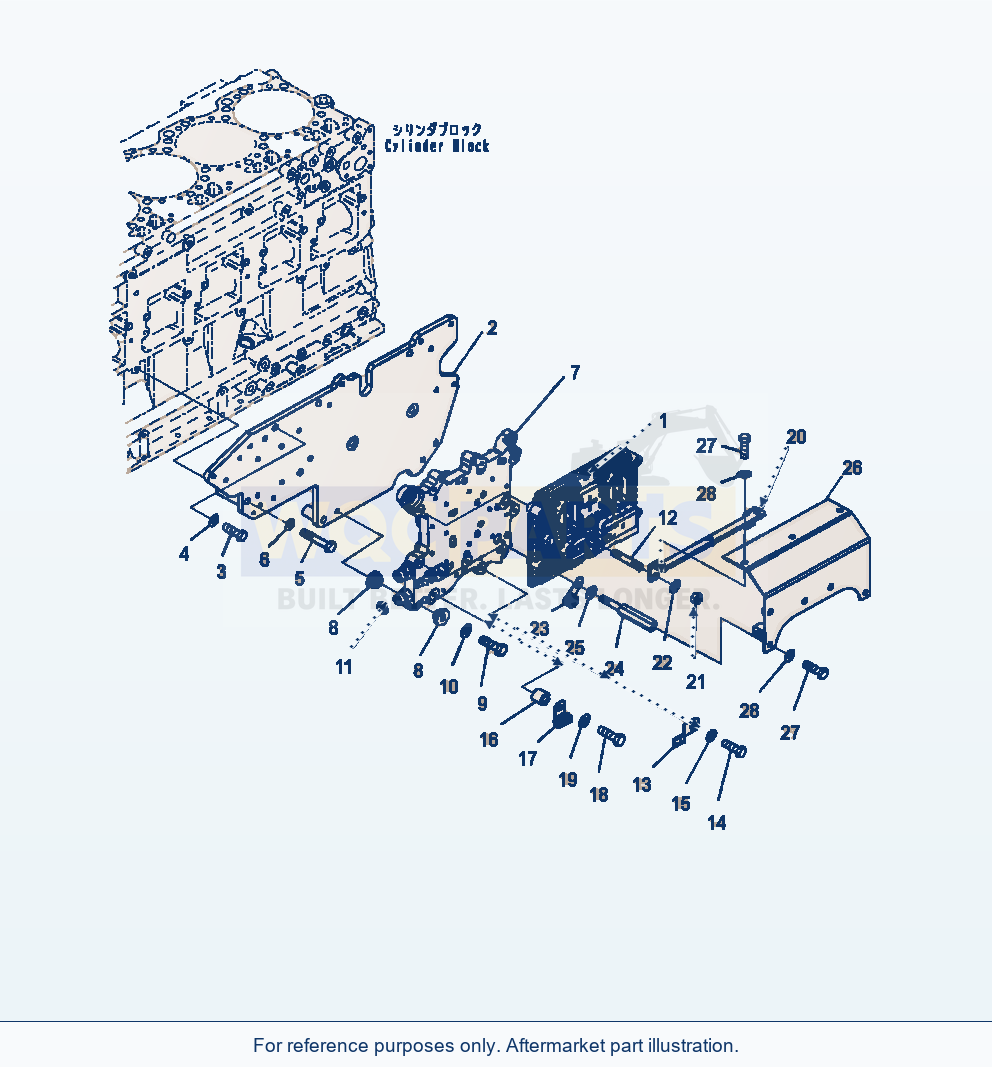

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 28 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | CONTROLLER ASSEMBLY | 1 | Request quote | |||
| 2 | BRACKET | 1 | Request quote | |||
| 3 | BOLT | 3 | Request quote | |||
| 4 | WASHER | 3 | View product ↗ | |||
| 5 | BOLT | 4 | View product ↗ | |||
| 6 | WASHER | 4 | View product ↗ | |||
| 7 | COOLER | 1 | Request quote | |||
| 8 | CUSHION | 8 | Request quote | |||
| 9 | BOLT | 4 | Request quote | |||
| 10 | WASHER | 4 | View product ↗ | |||
| 11 | O-RING | 2 | View product ↗ | |||
| 12 | STUD | 2 | Request quote | |||
| 13 | CLIP | 1 | Request quote | |||
| 14 | BOLT | 1 | View product ↗ | |||
| 15 | WASHER | 1 | View product ↗ | |||
| 16 | SPACER | 1 | Request quote | |||
| 17 | CLIP | 1 | Request quote | |||
| 18 | BOLT | 1 | Request quote | |||
| 19 | WASHER | 1 | View product ↗ | |||
| 20 | BRACKET | 1 | Request quote | |||
| 21 | NUT | 2 | View product ↗ | |||
| 22 | WASHER | 2 | View product ↗ | |||
| 23 | CLIP | 1 | Request quote | |||
| 24 | STUD | 2 | Request quote | |||
| 25 | WASHER | 2 | View product ↗ | |||
| 26 | COVER | 1 | Request quote | |||
| 27 | BOLT | 5 | Request quote | |||
| 28 | WASHER | 5 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
