Komatsu WA470-7 Wheel Loader Idle Gears Parts
Komatsu WA470-7 idle gears parts for machine serial A47001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Engine / Idle Gears.
Checking current purchase options...

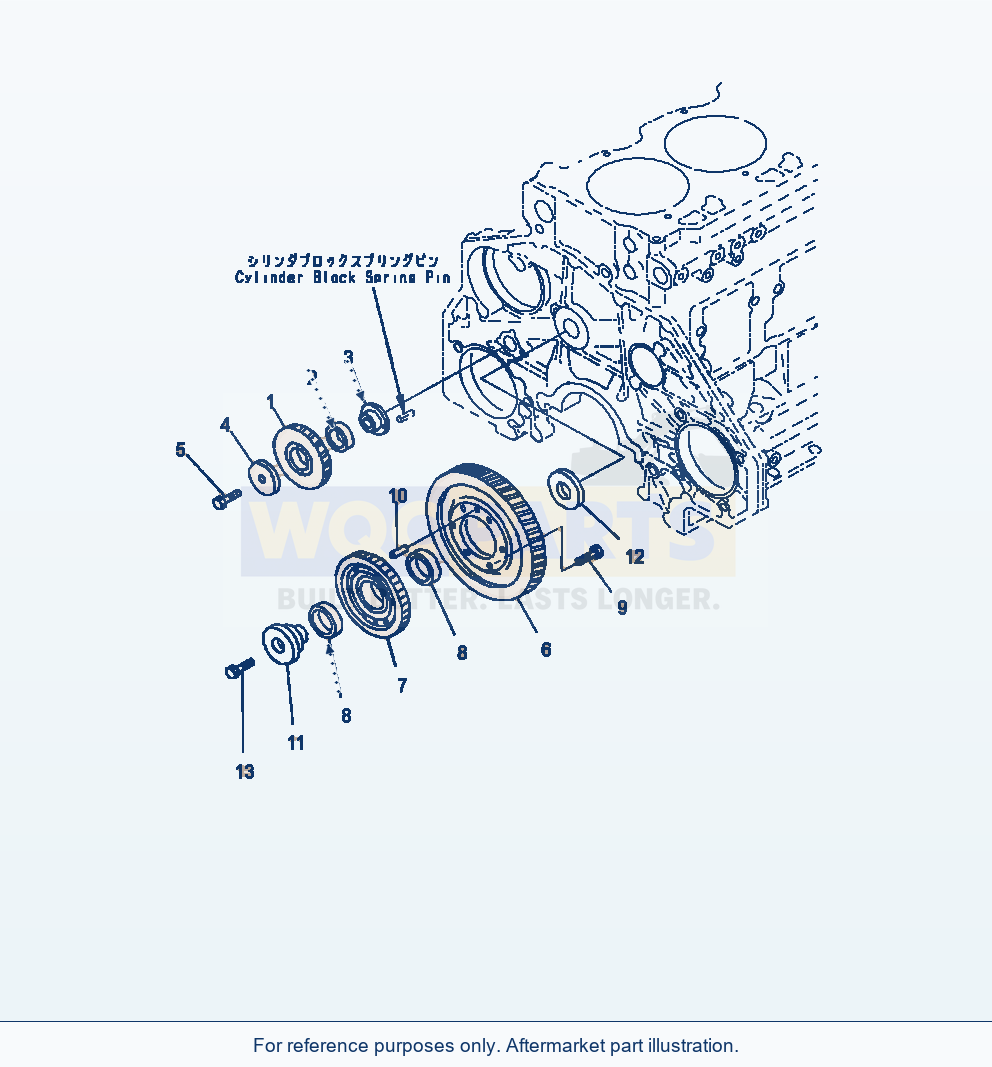

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 13 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | GEAR ASSEMBLY | 1 | Request quote | |||
| 2 | BUSHING | 1 | View product ↗ | |||
| 3 | SHAFT | 1 | Request quote | |||
| 4 | PLATE, THRUST | 1 | Request quote | |||
| 5 | BOLT | 1 | View product ↗ | |||
| 6 | GEAR | 1 | Request quote | |||
| 7 | GEAR ASSEMBLY | 1 | Request quote | |||
| 8 | BUSHING | 2 | View product ↗ | |||
| 9 | BOLT | 6 | Request quote | |||
| 10 | PIN, DOWEL | 1 | Request quote | |||
| 11 | SHAFT, IDLER GEAR | 1 | Request quote | |||
| 12 | PLATE, THRUST | 1 | Request quote | |||
| 13 | BOLT | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
GEAR
GEAR
Using Komatsu WA470-7 Wheel Loader Idle Gears Parts
Use the Komatsu WA470-7 Wheel Loader Idle Gears Parts listing to identify aftermarket replacement parts within the engine section. This wheel loader application is listed for machine serial A47001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 13 listed part occurrences, including gear assembly (reference 6150-31-6100), bushing (reference 6150-31-6120) and shaft (reference 6252-21-2510). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
