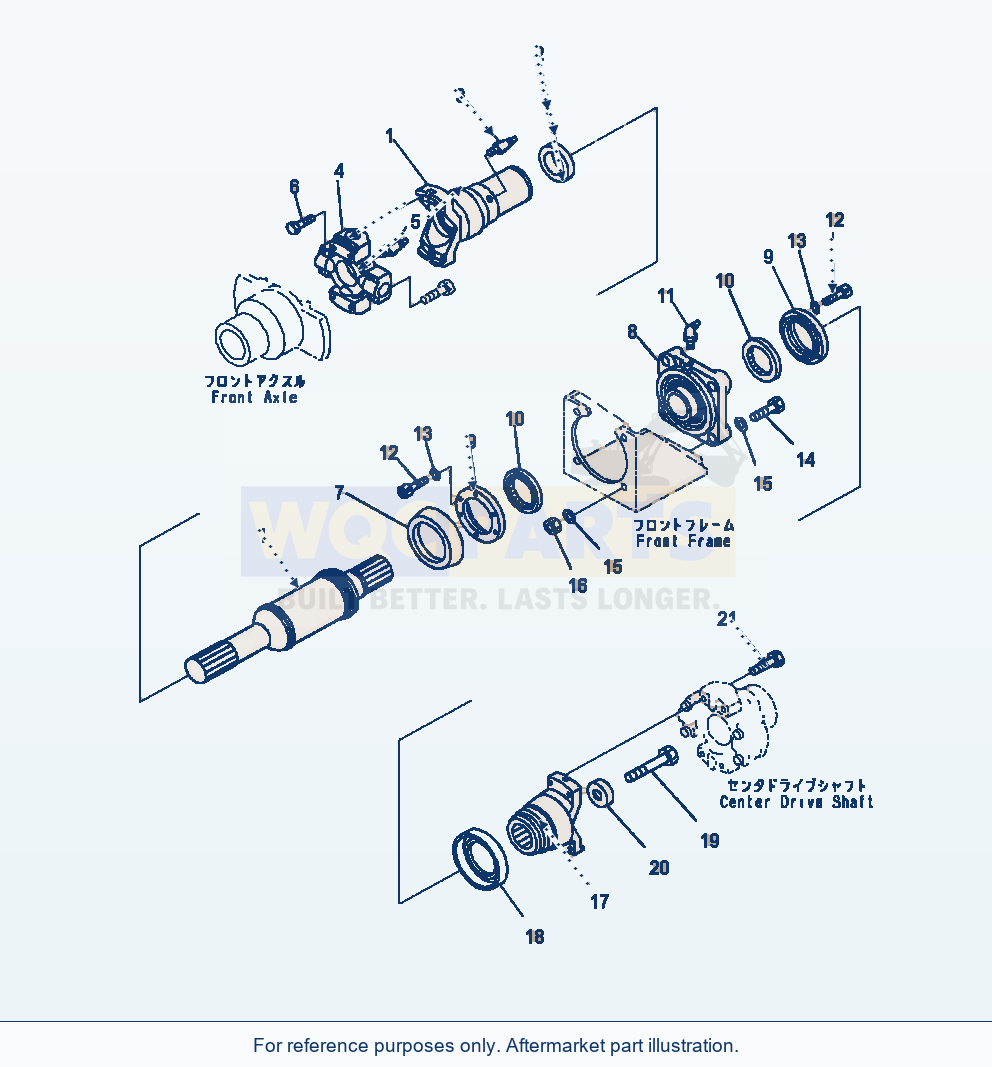

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 23 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | PROPELLER SHAFT | 1 | Request quote | |||
| 1 | PROPELLER SHAFT | 1 | Request quote | |||
| 1 | YOKE AND SHAFT | 1 | Request quote | |||
| 2 | SEAL | 1 | Request quote | |||
| 3 | FITTING | 1 | Request quote | |||
| 4 | SPIDER ASSEMBLY | 1 | View product ↗ | |||
| 5 | FITTING, GREASE | 1 | Request quote | |||
| 6 | BOLT | 4 | View product ↗ | |||
| 7 | DEFLECTOR | 1 | Request quote | |||
| 8 | BEARING | 1 | View product ↗ | |||
| 9 | COVER | 2 | Request quote | |||
| 10 | SEAL | 2 | View product ↗ | |||
| 11 | FITTING, GREASE | 1 | View product ↗ | |||
| 12 | BOLT, HEXAGON SOCKET HEAD | 12 | Request quote | |||
| 13 | WASHER | 12 | Request quote | |||
| 14 | BOLT | 4 | View product ↗ | |||
| 15 | WASHER | 8 | View product ↗ | |||
| 16 | NUT | 4 | Request quote | |||
| 18 | COUPLING ASSEMBLYC1 | 1 | Request quote | |||
| 18 | DEFLECTOR | 1 | Request quote | |||
| 19 | BOLT | 1 | Request quote | |||
| 20 | HOLDER | 1 | Request quote | |||
| 21 | BOLT | 4 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
