Komatsu WA500-1 Crankshaft Serial 10001-UP (OVERSEAS VERSION) Parts
Komatsu WA500-1 crankshaft serial 10001-up (overseas version) parts for machine serial 10001-UP (OVERSEAS VERSION). View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: S6D140-1R S/N 10001-UP / Cylinder Block / Crankshaft.
Checking current purchase options...

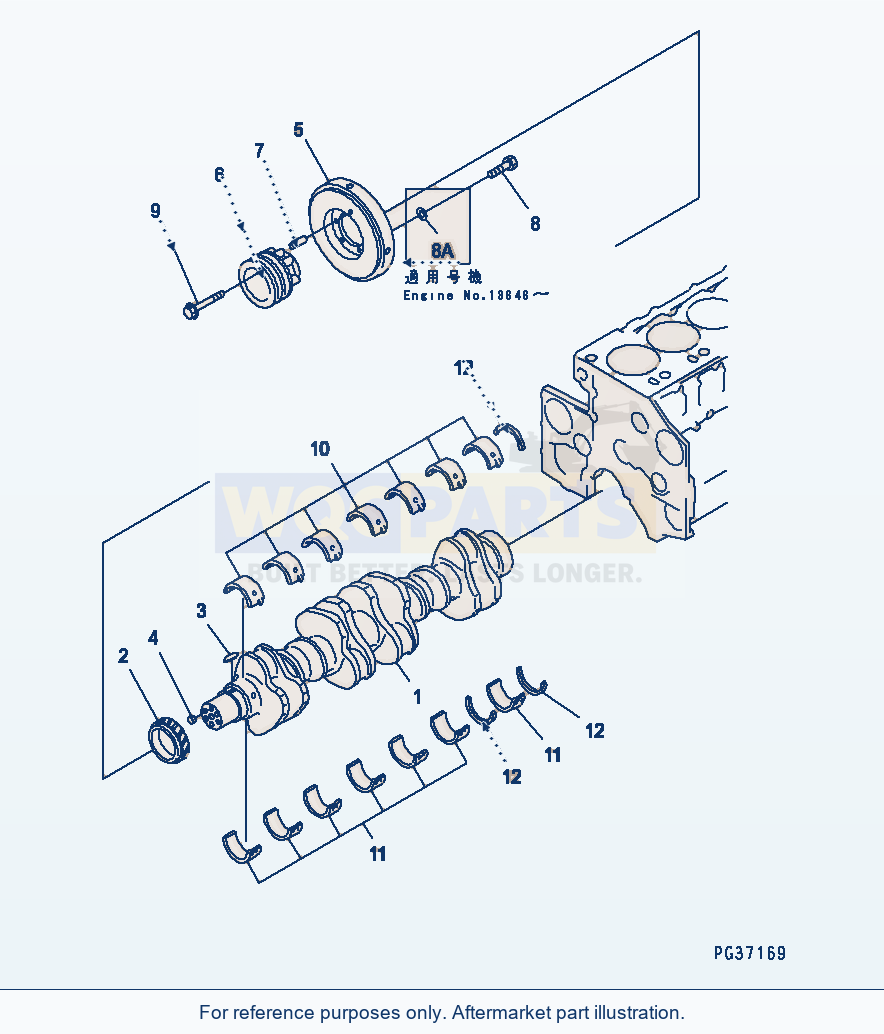

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 27 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | CRANKSHAFT ASS'YSN: 10001-UP | 1 | View product ↗ | |||
| 2 | GEARSN: 10001-UP | 1 | Request quote | |||
| 3 | KEYSN: 10001-UP | 1 | Request quote | |||
| 4 | PINSN: 10001-UP | 1 | Request quote | |||
| 5 | DAMPER ASS'YSN: 20519-UP | 1 | Request quote | |||
| 5 | DAMPER ASS'YSN: 16613-20518 | 1 | Request quote | |||
| 5 | DAMPER ASS'YSN: 10001-16612 | The part and the part specified in the line immediately above are interchangeable. | 1 | Request quote | |||
| 6 | PULLEY,NON HARDENINGSN: 10001-UP | 1 | Request quote | |||
| 6 | PULLEY, HARDENINGSN: 20519-UP | 1 | Request quote | |||
| 6 | PULLEY, HARDENINGSN: 10001-20518 | 1 | Request quote | |||
| 7 | PIN,DOWELSN: 10001-UP | 1 | View product ↗ | |||
| 8 | BOLTSN: 20519-UP | 6 | Request quote | |||
| 8 | BOLTSN: 10001-20518 | 6 | Request quote | |||
| 8A | WASHERSN: 13646-UP | 6 | View product ↗ | |||
| 9 | BOLTSN: 20519-UP | 6 | Request quote | |||
| 9 | BOLTSN: 10001-20518 | 6 | Request quote | |||
| 18 | METAL ASS'YSN: 10001-UP | 1 | View product ↗ | |||
| 19 | MAIN METAL ASS'YSN: 10001-UP | 7 | View product ↗ | |||
| 12 | THRUST METAL ASS'YSN: 10001-UP | 1 | View product ↗ | |||
| 10 | MAIN METAL ASS'YSN: 10001-UP | 7 | View product ↗ | |||
| 10 | MAIN METAL ASS'YSN: 10001-UP | 7 | View product ↗ | |||
| 10 | MAIN METAL ASS'YSN: 10001-UP | 7 | View product ↗ | |||
| 10 | MAIN METAL ASS'YSN: 10001-UP | 7 | View product ↗ | |||
| 12 | THRUST METAL ASS'YSN: 10001-UP | 1 | View product ↗ | |||
| 12 | THRUST METAL ASS'YSN: 10001-UP | 1 | View product ↗ | |||
| 12 | THRUST METAL ASS'YSN: 10001-UP | 1 | Request quote | |||
| 12 | THRUST METAL ASS'YSN: 10001-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 1 | Description: CRANKSHAFT | QTY: 1 | OPTIONS: SN: 10001-UP
STANDARD
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 10 | Description: METAL,UPPER | QTY: 1 | OPTIONS: SN: 10001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 11 | Description: METAL,LOWER | QTY: 1 | OPTIONS: SN: 10001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 12 | Description: METAL,THRUST | QTY: 3 | OPTIONS: SN: 10001-UP
UNDERSIZE 0.25MM
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 10 | Description: METAL,UPPER | QTY: 1 | OPTIONS: SN: 10001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 11 | Description: METAL,LOWER | QTY: 1 | OPTIONS: SN: 10001-UP
UNDERSIZE 0.50MM
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 10 | Description: METAL,UPPER | QTY: 1 | OPTIONS: SN: 10001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 11 | Description: METAL,LOWER | QTY: 1 | OPTIONS: SN: 10001-UP
UNDERSIZE 0.75MM
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 10 | Description: METAL,UPPER | QTY: 1 | OPTIONS: SN: 10001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 11 | Description: METAL,LOWER | QTY: 1 | OPTIONS: SN: 10001-UP
UNDERSIZE 1.00MM
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 10 | Description: METAL,UPPER | QTY: 1 | OPTIONS: SN: 10001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 11 | Description: METAL,LOWER | QTY: 1 | OPTIONS: SN: 10001-UP
OVERSIZE 0.25MM
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 12 | Description: METAL,THRUST | QTY: 3 | OPTIONS: SN: 10001-UP
OVERSIZE 0.50MM
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 12 | Description: METAL,THRUST | QTY: 3 | OPTIONS: SN: 10001-UP
OVERSIZE 0.75MM
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 12 | Description: METAL,THRUST | QTY: 3 | OPTIONS: SN: 10001-UP
OVERSIZE 1.00MM
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 12 | Description: METAL,THRUST | QTY: 3 | OPTIONS: SN: 10001-UP
Using Komatsu WA500-1 Crankshaft Serial 10001-UP (OVERSEAS VERSION) Parts
Use the Komatsu WA500-1 Crankshaft Serial 10001-UP (OVERSEAS VERSION) Parts listing to identify aftermarket replacement parts within the cylinder block section. This wheel loader application is listed for machine serial 10001-UP (OVERSEAS VERSION); the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 27 listed part occurrences, including crankshaft ass'y (reference 6211-31-1010), gear (reference 6210-31-1120) and key (reference 6150-31-1130). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
The source engine application is S6D140-1R (engine serial 10001-UP). Match that engine identification as well as the machine serial range; the general machine model is not a substitute for engine-specific applicability.
For cylinder-block and related engine components, compare the listed engine serial break and every row-specific option. Use the individual part reference rather than the diagram appearance to distinguish revisions.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
