Komatsu WA500-1 Wheel Loader Air Intake Manifold And Connection Parts
Komatsu WA500-1 air intake manifold and connection parts for machine serial 10001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: S6D140-1A S/N 10001-UP / Cylinder Head / Air Intake Manifold And Connection.
Checking current purchase options...

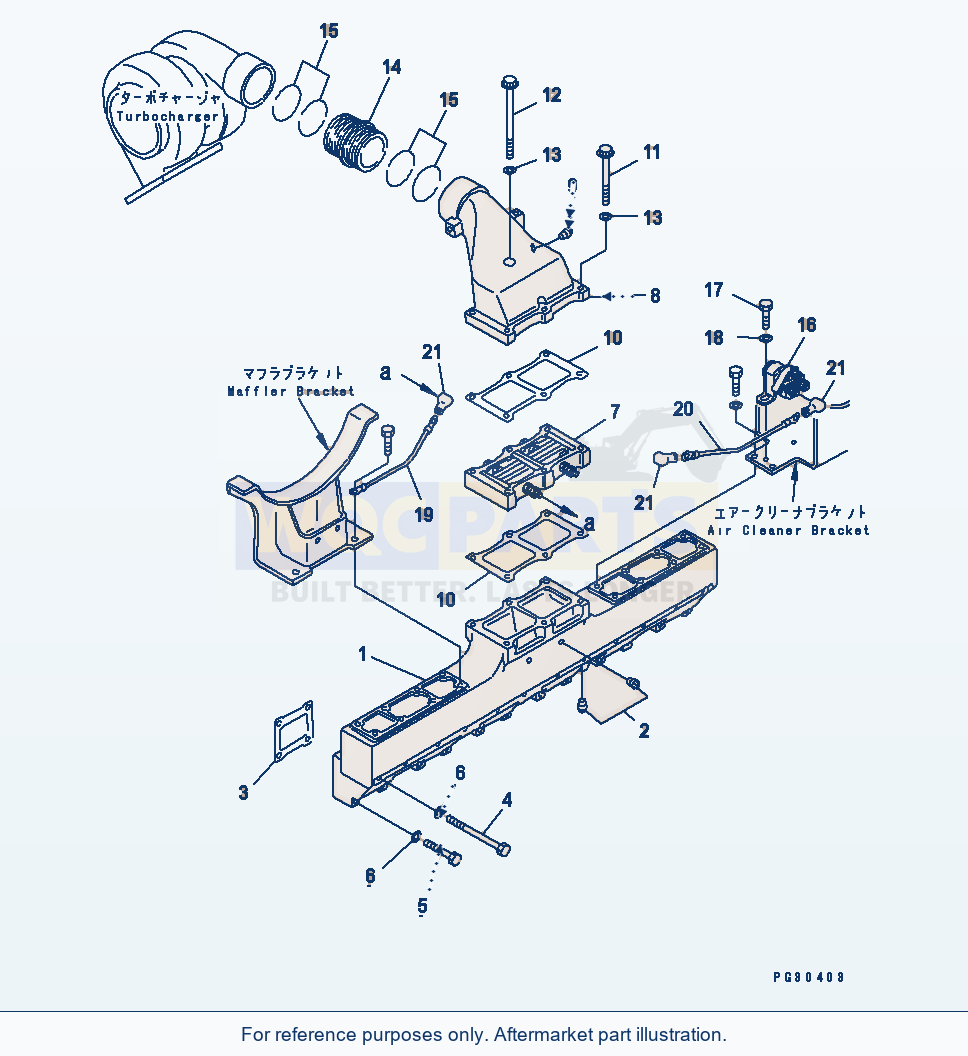

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 25 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | MANIFOLD,INTAKESN: 10001-UP | 1 | Request quote | |||
| 2 | PLUGSN: 10001-UP | 2 | View product ↗ | |||
| 3 | GASKET (K1)SN: 10001-UP | 6 | View product ↗ | |||
| 4 | BOLTSN: 10001-UP | 12 | Request quote | |||
| 5 | BOLTSN: 10001-UP | 12 | View product ↗ | |||
| 6 | WASHERSN: 10001-UP | 24 | View product ↗ | |||
| 7 | HEATER,RIBBONSN: 10001-UP | 1 | Request quote | |||
| 8 | CONNECTOR,AIRSN: 14179-UP | 1 | Request quote | |||
| 8 | CONNECTOR,AIRSN: 10001-14178 | The part specified in the DESCRIPTION column can be used instead of this part if it is used as a set. | 1 | Request quote | |||
| 9 | PLUGSN: 10001-UP | 1 | View product ↗ | |||
| 10 | GASKET (K1)SN: 10001-UP | 2 | View product ↗ | |||
| 11 | BOLTSN: 10001-UP | 5 | Request quote | |||
| 12 | BOLTSN: 11342-UP | 1 | Request quote | |||
| 12 | BOLTSN: 10001-11341 | The part specified in the line above can be used instead of this part | 1 | Request quote | |||
| 13 | WASHERSN: 10001-UP | 6 | View product ↗ | |||
| 14 | CONNECTOR,AIRSN: 10001-UP | 1 | Request quote | |||
| 15 | O-RING (K1)SN: 10001-UP | 4 | View product ↗ | |||
| 16 | SWITCH,HEATERSN: 10001-UP | 1 | Request quote | |||
| 17 | BOLTSN: 10001-UP | 2 | Request quote | |||
| 18 | WASHERSN: 10001-UP | 2 | View product ↗ | |||
| 19 | WIRE, 220MMSN: 10017-UP | 1 | Request quote | |||
| 19 | WIRE, 350MMSN: 10001-10016 | The part specified in the line above can be used instead of this part | 1 | Request quote | |||
| 20 | WIRE, 230MMSN: 10017-UP | 1 | Request quote | |||
| 20 | WIRE, 265MMSN: 10001-10016 | The part specified in the line above can be used instead of this part | 1 | Request quote | |||
| 21 | CAPSN: 10001-UP | 3 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
(6211-11-4321{01010-31045, }
6130-21-6760)
Using Komatsu WA500-1 Wheel Loader Air Intake Manifold And Connection Parts
Use the Komatsu WA500-1 Wheel Loader Air Intake Manifold And Connection Parts listing to identify aftermarket replacement parts within the cylinder head section. This wheel loader application is listed for machine serial 10001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 25 listed part occurrences, including manifold,intake (reference 6211-11-4110), plug (reference 07042-00108) and gasket (k1) (reference 6210-11-4810). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
The source engine application is S6D140-1A (engine serial 10001-UP). Match that engine identification as well as the machine serial range; the general machine model is not a substitute for engine-specific applicability.
For cylinder-head and related engine parts, follow the applicability attached to the selected assembly. Gaskets, fasteners and other components must be checked by their listed references rather than assumed to interchange between engine versions.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
