Komatsu WA500-1 Drive Shaft (Center) Serial 10001-UP Parts
Komatsu WA500-1 drive shaft (center) serial 10001-up parts for machine serial 10001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Drive Shaft, Differential And Wheels / Drive Shaft (Center).
Checking current purchase options...

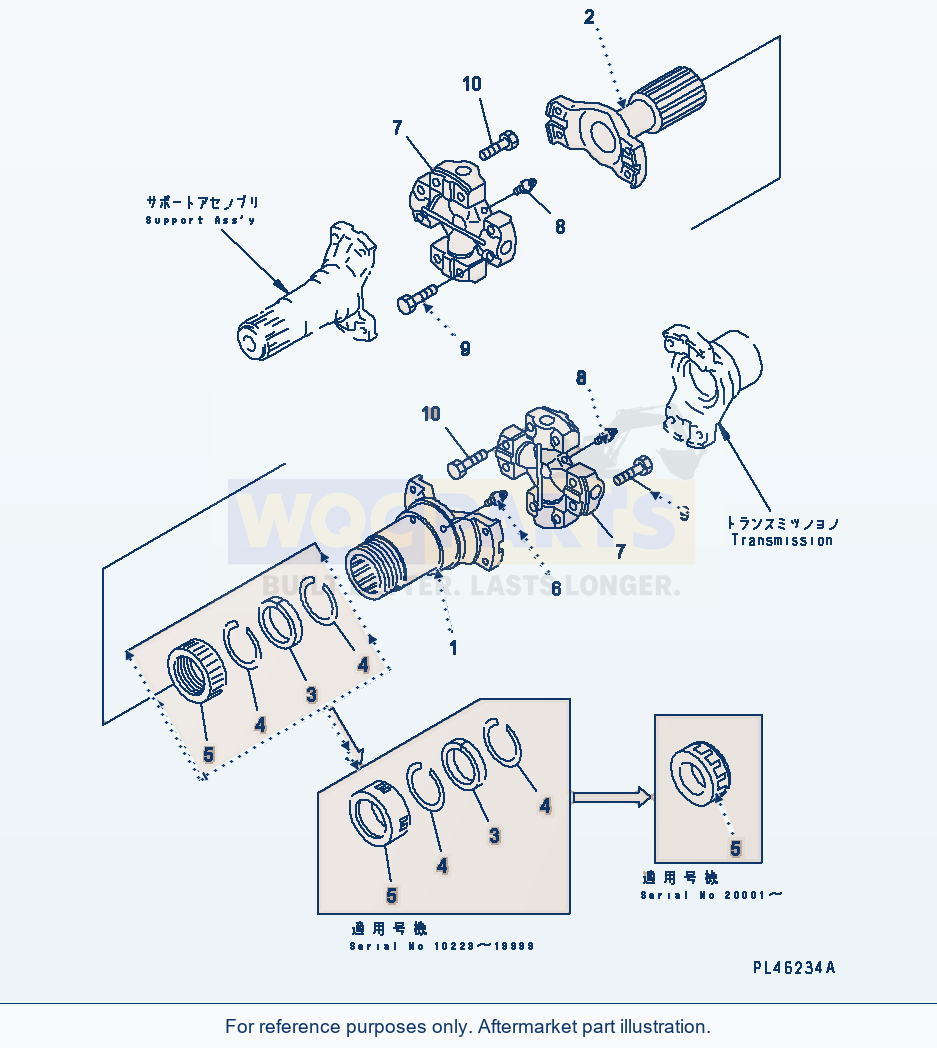

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 14 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | DRIVE SHAFT ASS'Y,CENTERSN: 20001-UP | 1 | Request quote | |||
| 1 | DRIVE SHAFT ASS'Y,CENTERSN: 10001-19999 | The part specified in the line above can be used instead of this part | 1 | Request quote | |||
| 1 | YOKE AND SHAFT A.SN: 20001-UP | 1 | Request quote | |||
| 1 | YOKE AND SHAFT A.SN: 10001-19999 | The part specified in the line above can be used instead of this part | 1 | Request quote | |||
| 3 | SEALSN: 10001-19999 | 1 | Request quote | |||
| 4 | RETAINERSN: 10001-19999 | 2 | Request quote | |||
| 5 | SEALSN: 20001-UP | 1 | Request quote | |||
| 5 | COVERSN: 10223-19999 | 1 | Request quote | |||
| 5 | COVERSN: 10001-10222 | 1 | Request quote | |||
| 6 | FITTING,GREASESN: 10001-UP | 1 | Request quote | |||
| 7 | SPIDER ASS'YSN: 10001-UP | 2 | Request quote | |||
| 8 | FITTING,GREASESN: 10001-UP | 2 | Request quote | |||
| 9 | BOLTSN: 10001-UP | 8 | View product ↗ | |||
| 10 | BOLTSN: 10001-UP | 8 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 1 | Description: YOKE | QTY: 1 | OPTIONS: SN: 20001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 1 | Description: YOKE | QTY: 1 | OPTIONS: SN: 10223-19999
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 1 | Description: YOKE | QTY: 1 | OPTIONS: SN: 10001-10222
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 2 | Description: SHAFT | QTY: 1 | OPTIONS: SN: 20001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 2 | Description: SHAFT | QTY: 1 | OPTIONS: SN: 10001-19999
Using Komatsu WA500-1 Drive Shaft (Center) Serial 10001-UP Parts
Use the Komatsu WA500-1 Drive Shaft (Center) Serial 10001-UP Parts listing to identify aftermarket replacement parts within the drive shaft, differential and wheels section. This wheel loader application is listed for machine serial 10001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 14 listed part occurrences, including drive shaft ass'y,center (reference 425-20-12111), drive shaft ass'y,center (reference 425-20-12110) and yoke and shaft a. (reference 425-20-12651). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For axle, driveline and brake-related parts, follow the assembly location and machine serial applicability. Keep front/rear and left/right distinctions, along with any equipment options recorded in the parts list.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
