Komatsu WA500-1 Wheel Loader Spring Cylinder Serial 10001-UP Parts
Komatsu WA500-1 spring cylinder serial 10001-up parts for machine serial 10001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Drive Shaft, Differential And Wheels / Spring Cylinder.
Checking current purchase options...

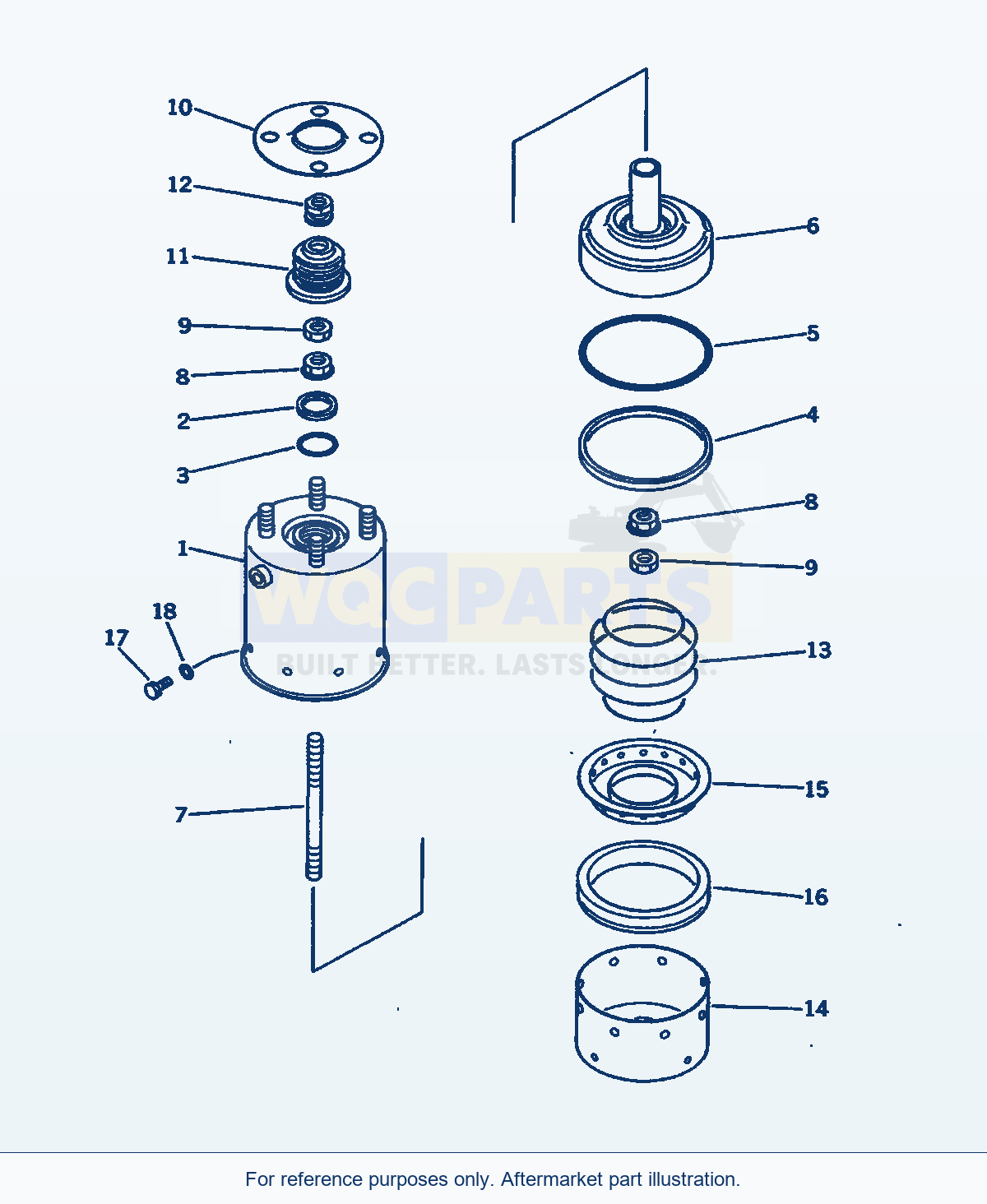

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 21 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | FRONT AXLE ASS'YSN: 20001-UP | 1 | Request quote | |||
| 1 | FRONT AXLE ASS'YSN: 10511-19999 | 1 | Request quote | |||
| 1 | FRONT AXLE ASS'YSN: 10277-10510 | The part specified in the line above can be used instead of this part | 1 | Request quote | |||
| 1 | FRONT AXLE ASS'YSN: 10001-10276 | The part specified in the line above can be used instead of this part | 1 | Request quote | |||
| 1 | PARKING BRAKE ASS'YSN: 10001-UP | 1 | Request quote | |||
| 1 | SPRING CYLINDER A.SN: 10001-UP | 1 | Request quote | |||
| 1 | CYLINDERSN: 10001-UP | 1 | Request quote | |||
| 2 | SERVICE KITSN: 10001-UP | 1 | View product ↗ | |||
| 6 | PISTONSN: 10001-UP | 1 | Request quote | |||
| 7 | RODSN: 10001-UP | 1 | Request quote | |||
| 8 | NUTSN: 10001-UP | 2 | Request quote | |||
| 9 | NUTSN: 10001-UP | 2 | Request quote | |||
| 10 | RETAINERSN: 10001-UP | 1 | Request quote | |||
| 11 | BOOTSN: 10001-UP | 1 | View product ↗ | |||
| 12 | NUTSN: 10001-UP | 1 | Request quote | |||
| 13 | SPRINGSN: 10001-UP | 1 | Request quote | |||
| 14 | COVERSN: 10001-UP | 1 | Request quote | |||
| 15 | HOLDERSN: 10001-UP | 1 | Request quote | |||
| 16 | FILTERSN: 10001-UP | 1 | Request quote | |||
| 17 | BOLTSN: 10001-UP | 8 | Request quote | |||
| 18 | WASHERSN: 10001-UP | 8 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.3101 TO 3147.
THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.3141 TO 3147.
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 2 | Description: RING | QTY: 1 | OPTIONS: SN: 10001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 3 | Description: O-RING | QTY: 1 | OPTIONS: SN: 10001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 4 | Description: RING | QTY: 1 | OPTIONS: SN: 10001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 5 | Description: O-RING | QTY: 1 | OPTIONS: SN: 10001-UP
Using Komatsu WA500-1 Wheel Loader Spring Cylinder Serial 10001-UP Parts
Use the Komatsu WA500-1 Wheel Loader Spring Cylinder Serial 10001-UP Parts listing to identify aftermarket replacement parts within the drive shaft, differential and wheels section. This wheel loader application is listed for machine serial 10001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 21 listed part occurrences, including front axle ass'y (reference 425-22-10007), front axle ass'y (reference 425-22-10003) and front axle ass'y (reference 425-22-10002). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For axle, driveline and brake-related parts, follow the assembly location and machine serial applicability. Keep front/rear and left/right distinctions, along with any equipment options recorded in the parts list.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
