Komatsu WA500-1 Starting Motor (7.5Kw)(#10001-10009) Parts
Komatsu WA500-1 starting motor (7.5kw)(#10001-10009) parts for machine serial 10001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: S6D140-1A S/N 10001-UP / Electrical System / Starting Motor (7.5Kw)(#10001-10009).
Checking current purchase options...

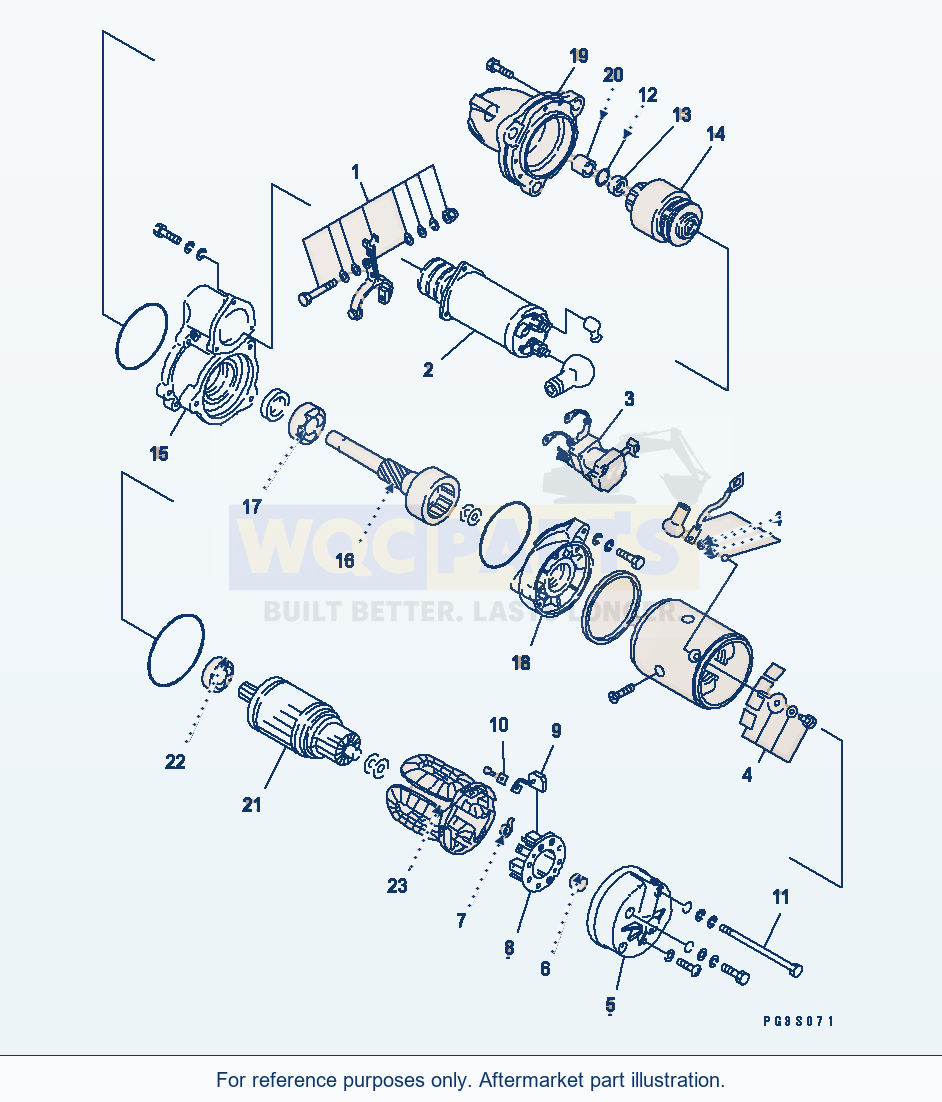

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 27 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | STARTING MOTOR ASS'Y,(7.5KW)SN: 10001-10009 | 1 | Request quote | |||
| 1 | SHIFT LEVER ASS'YSN: 10001-10009 | 1 | Request quote | |||
| 2 | MAGNETIC SWITCH A.SN: 10001-10009 | 1 | Request quote | |||
| 3 | SWITCH ASS'Y,SAFETY RELAYSN: 10001-10009 | 1 | Request quote | |||
| 4 | TERMINAL ASS'YSN: 10001-10009 | 1 | Request quote | |||
| 5 | REAR BRACKET ASS'YSN: 10001-10009 | 1 | Request quote | |||
| 5 | REAR BRACKET ASS'YSN: 10001-10009 | 1 | Request quote | |||
| 6 | METALSN: 10001-10009 | 1 | Request quote | |||
| 7 | SPRING,BRUSHSN: 10001-10009 | 4 | Request quote | |||
| 8 | BRUSH HOLDER ASS'YSN: 10001-10009 | 1 | Request quote | |||
| 9 | BRUSH ASS'YSN: 10001-10009 | 4 | Request quote | |||
| 10 | PLATESN: 10001-10009 | 4 | Request quote | |||
| 11 | BOLT,THROUGHSN: 10001-10009 | 2 | Request quote | |||
| 12 | RING,CLIPSN: 10001-10009 | 1 | Request quote | |||
| 13 | STOPPER,PINIONSN: 10001-10009 | 1 | Request quote | |||
| 14 | CLUTCH ASS'Y,OVER RUNNINGSN: 10001-10009 | 1 | Request quote | |||
| 15 | CENTER BRACKET A.SN: 10001-10009 | 1 | Request quote | |||
| 16 | SHAFT ASS'YSN: 10001-10009 | 1 | Request quote | |||
| 17 | BEARING,BALLSN: 10001-10009 | 1 | Request quote | |||
| 18 | BRACKET,CENTERSN: 10001-10009 | 1 | Request quote | |||
| 19 | FRONT BRACKET ASS'YSN: 10001-10009 | 1 | Request quote | |||
| 20 | METALSN: 10001-10009 | 1 | Request quote | |||
| 21 | ARMATURE ASS'YSN: 10001-10009 | 1 | Request quote | |||
| 22 | BEARING,BALL, FRONTSN: 10001-10009 | 1 | Request quote | |||
| 23 | FIELD COIL ASS'YSN: 10001-10009 | 1 | Request quote | |||
| 24 | WASHER ASS'Y,(NOT SHOWN)SN: 10001-10009 | 1 | Request quote | |||
| 25 | SEAL ASS'Y,(NOT SHOWN)SN: 10001-10009 | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
THE NIKKO DENKI PART NUMBER IS THAT KD IS REMOVED FROM KOMATSU PART NUMBER LISTED BELOW.
Using Komatsu WA500-1 Starting Motor (7.5Kw)(#10001-10009) Parts
Use the Komatsu WA500-1 Starting Motor (7.5Kw)(#10001-10009) Parts listing to identify aftermarket replacement parts within the electrical system section. This wheel loader application is listed for machine serial 10001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 27 listed part occurrences, including starting motor ass'y,(7.5kw) (reference 600-813-3680), shift lever ass'y (reference KD7-23320-0120) and magnetic switch a. (reference KD0-47100-3420). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
The source engine application is S6D140-1A (engine serial 10001-UP). Match that engine identification as well as the machine serial range; the general machine model is not a substitute for engine-specific applicability.
For electrical parts, compare the component reference and any voltage, connector or equipment-option notes shown in the listing. A similar description or shape alone is not a compatibility check.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
