Komatsu WA500-1 Marks And Plates (With Cab) (Chinese)(#20001-) Parts
Komatsu WA500-1 marks and plates (with cab) (chinese)(#20001-) parts for machine serial 10001-UP (OVERSEAS VERSION). View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Mark Plate, Tool And Kit / Marks And Plates (With Cab) (Chinese)(#20001-).
Checking current purchase options...

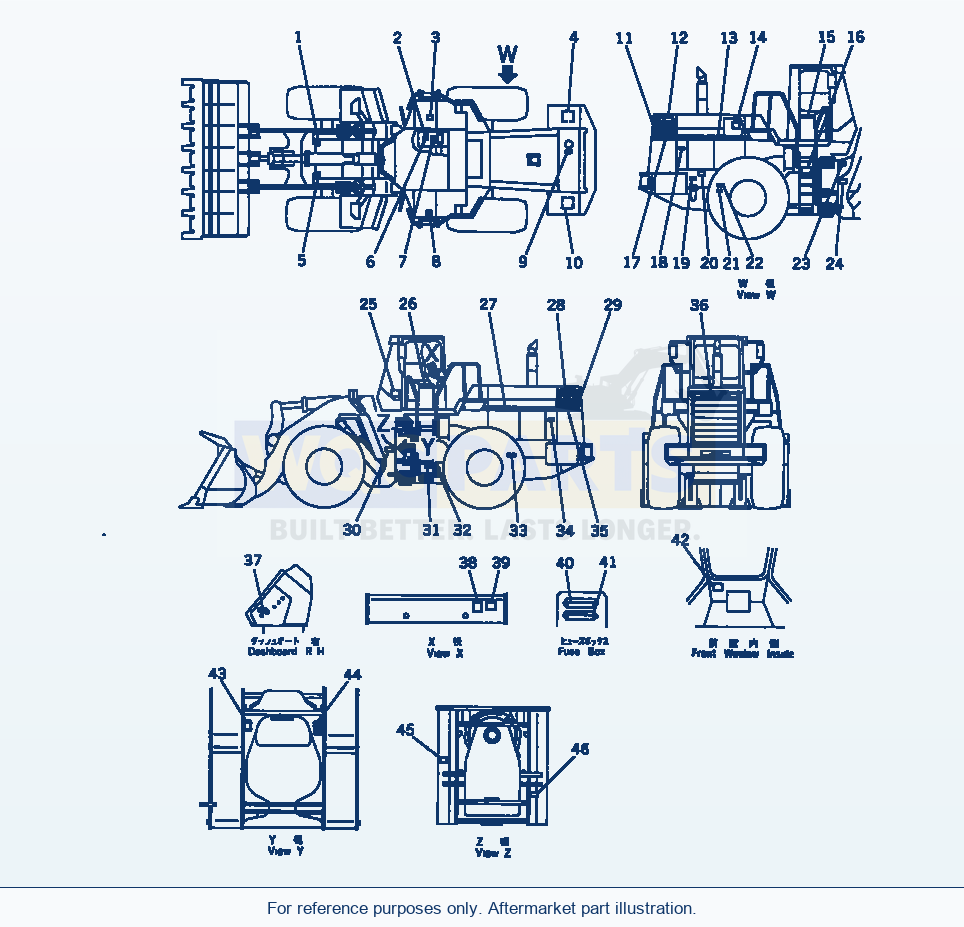

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 53 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | PLATE, OPERATING,LIFT HERESN: 20001-UP | 1 | Request quote | |||
| 2 | PLATE, OPERATING,LOADER CONTROL LOCKSN: 20001-UP | 1 | Request quote | |||
| 3 | PLATE, SAFETY,HYDRAULIC TANKSN: 20001-UP | 1 | Request quote | |||
| 4 | PLATE, CAUTION,BATTERYSN: 20001-UP | 1 | Request quote | |||
| 5 | PLATE, OPERATING,LIFT HERESN: 20001-UP | 1 | Request quote | |||
| 6 | PLATE, OPERATING,LOADER CONTROL LEVERSN: 20001-UP | 1 | Request quote | |||
| 7 | PLATE, OPERATINGSN: 20378-UP | 1 | Request quote | |||
| 7 | PLATE, OPERATING,RELAYSN: 20001-20377 | 1 | Request quote | |||
| 8 | PLATE, OPERATING,BRAKE OILSN: 20001-UP | 1 | Request quote | |||
| 9 | PLATE, SAFETY,RADIATOR CAPSN: 20001-UP | 1 | Request quote | |||
| 10 | PLATE, CAUTION,BATTERYSN: 20001-UP | 1 | Request quote | |||
| 11 | PLATE, MARKSN: 20378-UP | 1 | Request quote | |||
| 11 | PLATE, MARK,WA500SN: 20001-20377 | 1 | Request quote | |||
| 12 | PLATE, MARK,SYMBOLSN: 20001-20377 | 1 | Request quote | |||
| 13 | STRIPESN: 20001-UP | 1 | Request quote | |||
| 14 | PLATE, INSTRUCTION,AIR CLEANERSN: 20001-UP | 1 | Request quote | |||
| 15 | PLATE, MARKSN: 20378-UP | 1 | Request quote | |||
| 15 | PLATE, MARK,KOMATSUSN: 20001-20377 | 1 | Request quote | |||
| 16 | CHART, OILSN: 20001-UP | 1 | Request quote | |||
| 17 | STRIPESN: 20001-UP | 1 | Request quote | |||
| 18 | PLATE, CAUTION,FANSN: 20001-UP | 1 | Request quote | |||
| 19 | PLATE, CAUTION,FUELSN: 20001-UP | 1 | Request quote | |||
| 20 | PLATE, OPERATING,REMOTE GREASE, REARSN: 20001-UP | 1 | Request quote | |||
| 21 | PLATE, OPERATING,ENGINE OIL DRAINSN: 20001-UP | 1 | Request quote | |||
| 22 | PLATE, OPERATING,LIFT HERESN: 20001-UP | 1 | Request quote | |||
| 23 | PLATE, NAME,(LIMITED SUPPLY)SN: 20001-UP | 1 | Request quote | |||
| 23 | SCREWSN: 20001-UP | 4 | Request quote | |||
| 24 | PLATE, CAUTION,KEEP OUTSN: 20001-UP | 1 | Request quote | |||
| 25 | PLATE, OPERATING,MONITOR PANELSN: 20001-UP | 1 | Request quote | |||
| 26 | PLATE, MARKSN: 20378-UP | 1 | Request quote | |||
| 26 | PLATE, MARK,KOMATSUSN: 20001-20377 | 1 | Request quote | |||
| 27 | STRIPESN: 20001-UP | 1 | Request quote | |||
| 28 | PLATE, MARK,SYMBOLSN: 20001-20377 | 1 | Request quote | |||
| 29 | PLATE, MARKSN: 20378-UP | 1 | Request quote | |||
| 29 | PLATE, MARK,WA500SN: 20001-20377 | 1 | Request quote | |||
| 30 | PLATE, CAUTION,KEEP OUTSN: 20001-UP | 1 | Request quote | |||
| 31 | PLATE, SAFETY,AIR RESERVOIR DRAINSN: 20001-UP | 1 | Request quote | |||
| 32 | PLATE, CAUTION,FRAME LOCKSN: 20001-UP | 1 | Request quote | |||
| 33 | PLATE, OPERATING,LIFT HERESN: 20001-UP | 1 | Request quote | |||
| 34 | PLATE, CAUTION,FANSN: 20001-UP | 1 | Request quote | |||
| 35 | STRIPESN: 20001-UP | 1 | Request quote | |||
| 36 | PLATE, MARKSN: 20378-UP | 1 | Request quote | |||
| 36 | PLATE, NAME,KOMATSUSN: 20001-20377 | 1 | Request quote | |||
| 37 | PLATE, OPERATING,MAIN SWITCHSN: 20001-UP | 1 | Request quote | |||
| 38 | PLATE, SAFETY,STARTING AND AFTER OPERATINGSN: 20001-UP | 1 | Request quote | |||
| 39 | PLATE, CAUTION,STARTING AND INSPECTIONSN: 20001-UP | 1 | Request quote | |||
| 40 | PLATE, OPERATING,BREAKERSN: 20001-UP | 1 | Request quote | |||
| 41 | PLATE, OPERATING,BREAKERSN: 20001-UP | 1 | Request quote | |||
| 42 | PLATE, CAUTION,TORQUE CONVERTOR OIL TEMP.SN: 20001-UP | 1 | Request quote | |||
| 43 | PLATE, OPERATING,REMOTE GREASE, FRONT, L.H.SN: 20001-UP | 1 | Request quote | |||
| 44 | PLATE, OPERATING,REMOTE GREASE, FRONT, R.H.SN: 20001-UP | 1 | Request quote | |||
| 45 | PLATE, CAUTION,TRANSMISSION OIL LEVELSN: 20001-UP | 1 | Request quote | |||
| 46 | PLATE, SAFETY,AIR RESERVOIR DRAINSN: 20001-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA500-1 Marks And Plates (With Cab) (Chinese)(#20001-) Parts
Use the Komatsu WA500-1 Marks And Plates (With Cab) (Chinese)(#20001-) Parts listing to identify aftermarket replacement parts within the mark plate, tool and kit section. This wheel loader application is listed for machine serial 10001-UP (OVERSEAS VERSION); the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 53 listed part occurrences, including plate, operating,lift here (reference 419-V04-1270), plate, operating,loader control lock (reference 09685-00003) and plate, safety,hydraulic tank (reference 09653-09000). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
