Komatsu WA500-1 Wheel Loader Lamp And Fuse Parts
Komatsu WA500-1 lamp and fuse parts for machine serial 10001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Parts Books / Lamp And Fuse.
Checking current purchase options...

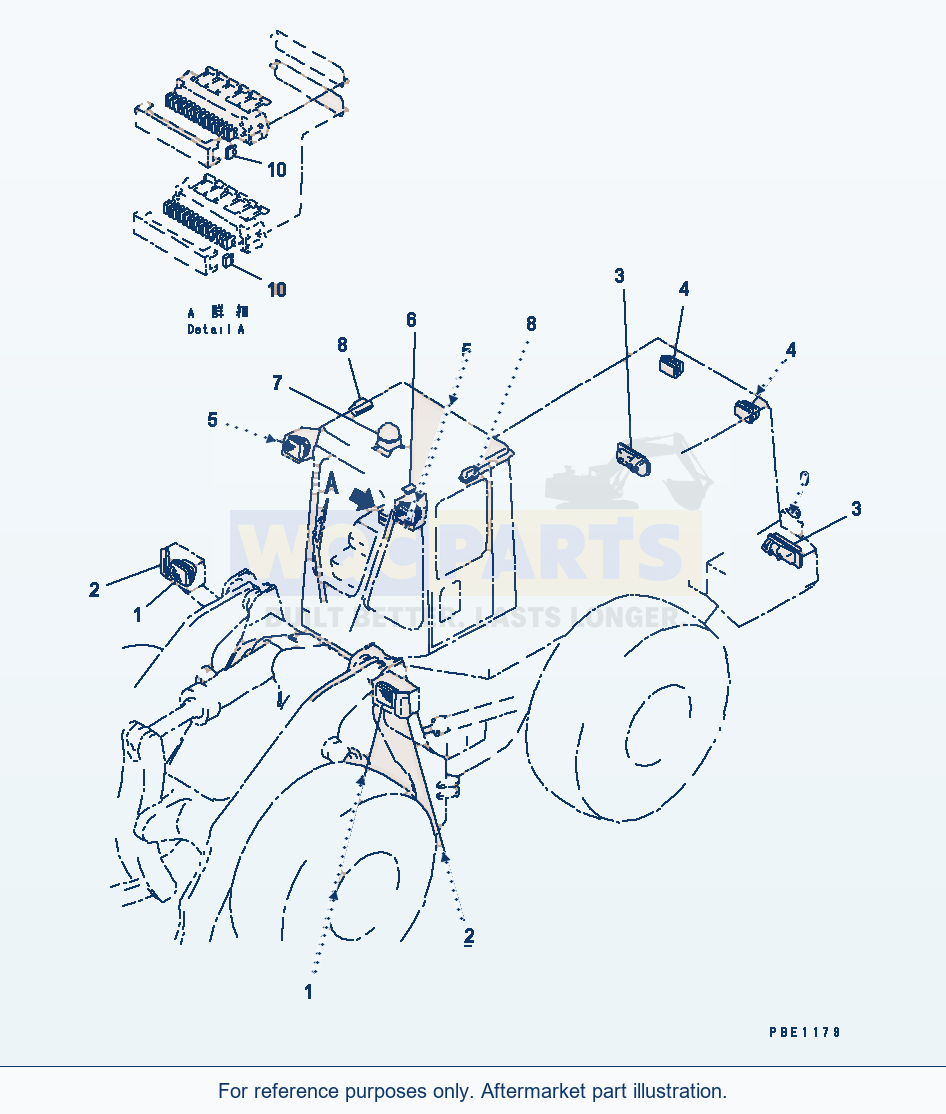

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 30 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | LAMP ASS'Y,HEADSN: 20001-UP | 2 | Request quote | |||
| 1 | BULB, 85/65WSN: 20001-UP | 1 | Request quote | |||
| 2 | LAMP ASS'Y,L.H.SN: 20001-UP | 1 | Request quote | |||
| 2 | LAMP ASS'Y,R.H.SN: 20001-UP | 1 | Request quote | |||
| 2 | BULB, 10/4WSN: 20001-UP | 1 | Request quote | |||
| 2 | BULB, 25WSN: 20001-UP | 2 | View product ↗ | |||
| 3 | COMBINATION LAMP A.,REAR, L.H.SN: 20001-UP | 1 | Request quote | |||
| 3 | COMBINATION LAMP A.,REAR, R.H.SN: 20001-UP | 1 | Request quote | |||
| 3 | BULB, 25/10WSN: 20001-UP | 1 | View product ↗ | |||
| 3 | BULB, 25WSN: 20001-UP | 2 | View product ↗ | |||
| 3 | BULB, 3WSN: 20001-UP | 1 | Request quote | |||
| 4 | WORK LAMP ASS'Y,REARSN: 20001-UP | 2 | Request quote | |||
| 4 | BULB, 24VSN: 20001-UP | 1 | Request quote | |||
| 5 | LAMP ASS'Y,WORKSN: 20001-UP | 2 | Request quote | |||
| 5 | BULB, 24VSN: 20001-UP | 2 | Request quote | |||
| 6 | LAMP,ROOMSN: 20001-UP | 1 | Request quote | |||
| 6 | BULB, 10WSN: 20001-UP | 1 | Request quote | |||
| 6 | LAMP,ROOM (HEAVY DUTY SPEC.)SN: 20001-UP | 1 | Request quote | |||
| 7 | LAMP ASS'Y,BEACON (WITH CAB)SN: 20001-UP | 1 | Request quote | |||
| 7 | BULB, 50WSN: 20001-UP | 1 | Request quote | |||
| 8 | LAMP ASS'Y,SIDE (HEAVY DUTY SPEC.)SN: 20001-UP | 2 | Request quote | |||
| 8 | BULB, 24VSN: 20001-UP | 1 | Request quote | |||
| 9 | LAMP ASS'Y,LICENSESN: 20001-UP | 1 | Request quote | |||
| 9 | BULB, 12WSN: 20001-UP | 1 | View product ↗ | |||
| 10 | FUSE, 5ASN: 20001-UP | 2 | Request quote | |||
| 10 | FUSE, 10ASN: 20001-UP | 23 | View product ↗ | |||
| 10 | FUSE, 20ASN: 20001-UP | 7 | View product ↗ | |||
| 10 | FUSE, 5A,(HEAVY DUTY SPEC.)SN: 20001-UP | 2 | Request quote | |||
| 10 | FUSE, 10A,(HEAVY DUTY SPEC.)SN: 20001-UP | 24 | View product ↗ | |||
| 10 | FUSE, 20ASN: 20001-UP | 7 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA500-1 Wheel Loader Lamp And Fuse Parts
Use the Komatsu WA500-1 Wheel Loader Lamp And Fuse Parts listing to identify aftermarket replacement parts within the parts books section. This wheel loader application is listed for machine serial 10001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 30 listed part occurrences, including lamp ass'y,head (reference 421-06-13102), bulb, 85/65w (reference 421-06-13110) and lamp ass'y,l.h. (reference 421-06-13301). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
