Komatsu WA500-1 Wheel Loader 2Nd Clutch Serial 10001-UP Parts
Komatsu WA500-1 2nd clutch serial 10001-up parts for machine serial 10001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Transmission / 2Nd Clutch.
Checking current purchase options...

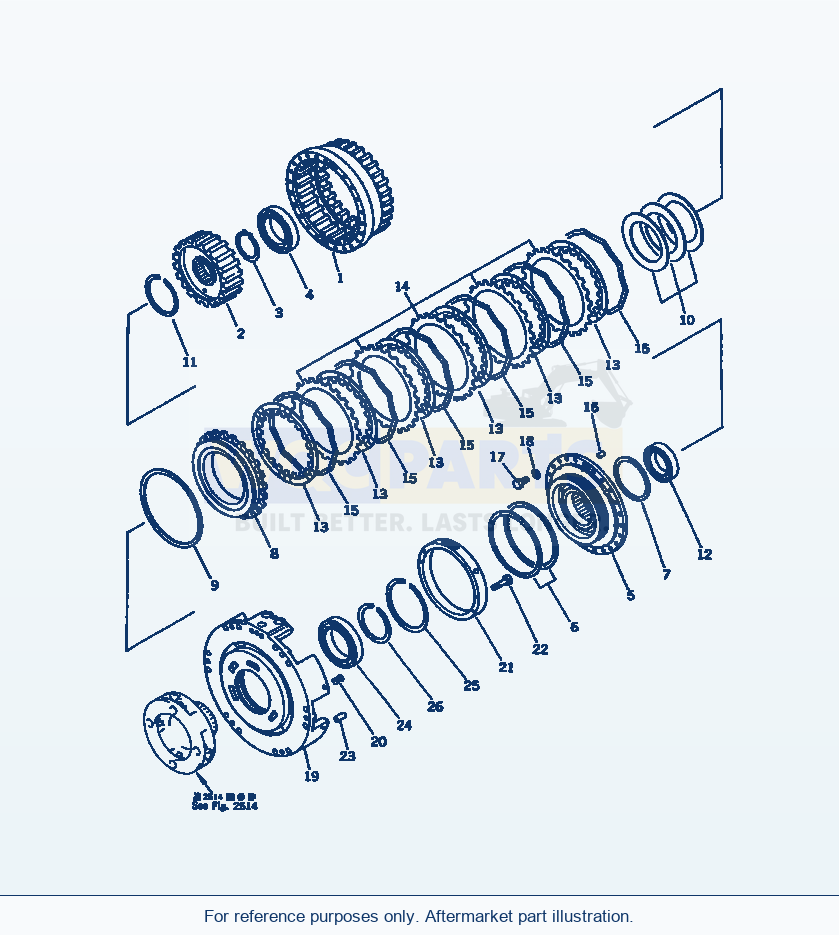

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 31 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | TORQFLOW ASS'YSN: 10001-(1744) | 1 | Request quote | |||
| 1 | TRANSMISSION ASS'YSN: 20001-UP | 1 | Request quote | |||
| 1 | TRANSMISSION ASS'YSN: (2987)-19999 | 1 | Request quote | |||
| 1 | TRANSMISSION ASS'YSN: 10001-(2986) | 1 | Request quote | |||
| 1 | GEAR,RINGSN: 10001-UP | 1 | Request quote | |||
| 2 | HUBSN: 10001-UP | 1 | Request quote | |||
| 3 | RING,SNAPSN: 10001-UP | 1 | View product ↗ | |||
| 4 | BEARINGSN: 10001-UP | 1 | View product ↗ | |||
| 5 | HOUSING,2NDSN: 10001-UP | 1 | Request quote | |||
| 6 | RING,SEALSN: 10001-UP | 2 | View product ↗ | |||
| 7 | RING,SEAL (K2)SN: 10001-UP | 1 | View product ↗ | |||
| 8 | PISTON,2NDSN: 10001-UP | 1 | Request quote | |||
| 9 | RING,SEAL (K2)SN: 10001-UP | 1 | View product ↗ | |||
| 10 | SPRINGSN: 10001-UP | 3 | Request quote | |||
| 11 | RING,SNAPSN: 10001-UP | 1 | View product ↗ | |||
| 12 | BEARINGSN: 10001-UP | 1 | View product ↗ | |||
| 13 | DISCSN: 10001-UP | 6 | View product ↗ | |||
| 14 | PLATESN: 10001-UP | 5 | Request quote | |||
| 15 | SPRINGSN: 10001-UP | 6 | Request quote | |||
| 16 | PIN,DOWELSN: 10001-UP | 2 | View product ↗ | |||
| 17 | BOLTSN: (5941)-UP | 22 | Request quote | |||
| 17 | BOLTSN: 10001-(5940) | 22 | Request quote | |||
| 18 | WASHERSN: 10001-UP | 22 | View product ↗ | |||
| 19 | HOUSINGSN: 10001-UP | 1 | Request quote | |||
| 20 | SLEEVESN: 10001-UP | 17 | View product ↗ | |||
| 21 | COLLARSN: 10001-UP | 1 | Request quote | |||
| 22 | BOLTSN: 10001-UP | 2 | Request quote | |||
| 23 | PIN,DOWELSN: 10001-UP | 2 | View product ↗ | |||
| 24 | BEARINGSN: 10001-UP | 1 | View product ↗ | |||
| 25 | RING,SNAPSN: 10001-UP | 1 | Request quote | |||
| 26 | RING,SNAPSN: 10001-UP | 1 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
SERIAL NO. IN ( ) INDICATES TORQUE CONVERTER SERIAL NO.
THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2301 TO 2524.
SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO.
THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2501 TO 2524.
Using Komatsu WA500-1 Wheel Loader 2Nd Clutch Serial 10001-UP Parts
Use the Komatsu WA500-1 Wheel Loader 2Nd Clutch Serial 10001-UP Parts listing to identify aftermarket replacement parts within the transmission section. This wheel loader application is listed for machine serial 10001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 31 listed part occurrences, including torqflow ass'y (reference 425-15-01000), transmission ass'y (reference 425-15-00011) and transmission ass'y (reference 425-15-00020). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
When selecting transmission or torque-converter parts, compare the assembly description, machine serial break and any configuration notes. Similar-looking diagrams can cover different internal parts and should not be treated as interchangeable.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
