Komatsu WA500-1LC Wheel Loader Electrical System - Floor Line Parts
Komatsu WA500-1LC electrical system - floor line parts for machine serial A60001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Electrical System / Electrical System - Floor Line.
Checking current purchase options...

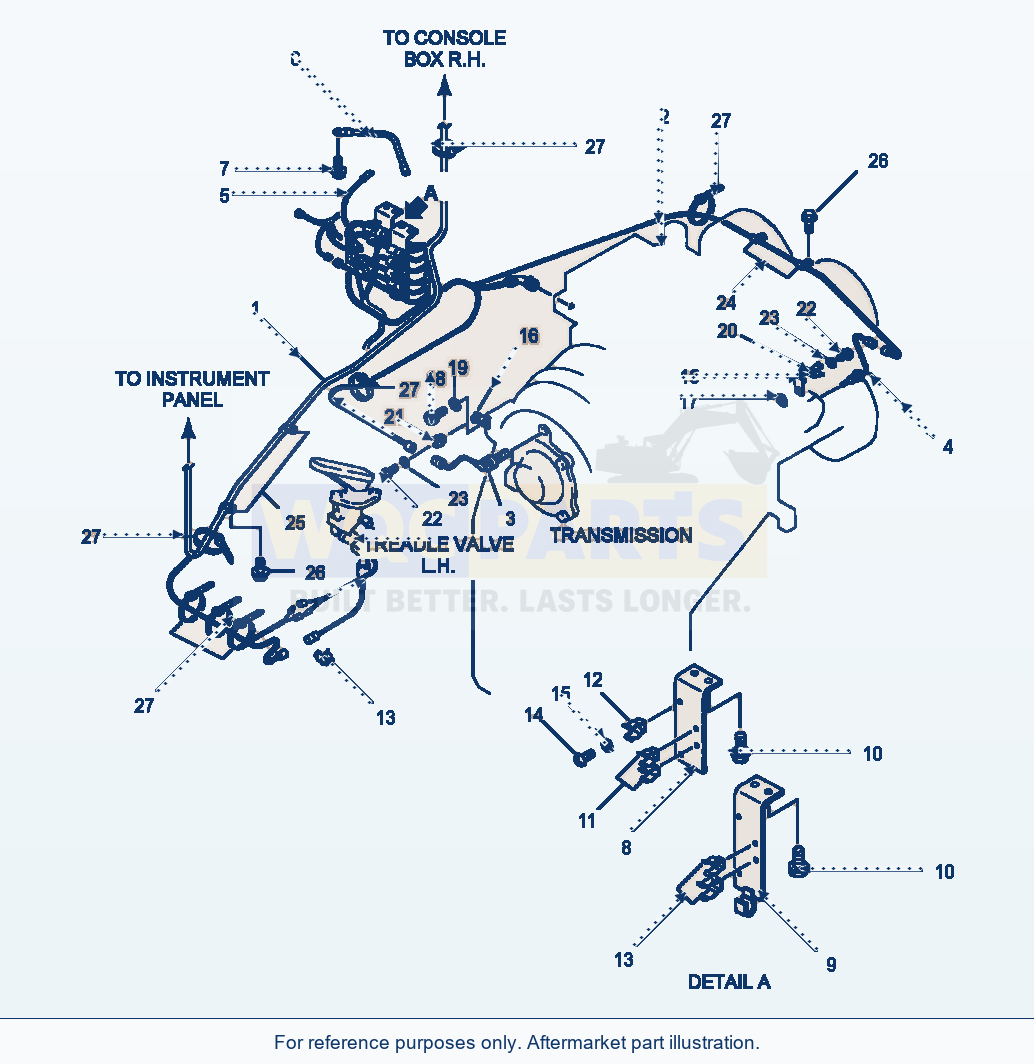

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 29 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | HARNESS - FLOOR LINESN: A60001-UP-UP | 1 | Request quote | |||
| 2 | HARNESS - TO OIL TEMPERATURE SENSORSN: A60001-UP-UP | 1 | Request quote | |||
| 2 | DIODESN: A60001-UP-UP | 7 | View product ↗ | |||
| 3 | SENSOR - SPEEDSN: A60001-UP-UP | 1 | View product ↗ | |||
| 4 | SENSOR - OIL TEMPERATURESN: A60001-UP-UP | 1 | View product ↗ | |||
| 5 | WIRE ASSEMBLYSN: A60001-UP-UP | 1 | Request quote | |||
| 6 | WIRE - GROUNDSN: A60001-UP-UP | 1 | Request quote | |||
| 7 | BOLT - GROUND WIRESN: A60001-UP-UP | 2 | Request quote | |||
| 8 | BRACKET - WITHOUT E.C.S.S.SN: A60001-UP-UP | 1 | Request quote | |||
| 8 | BRACKET - WITH E.C.S.S.SN: A60001-UP-UP | 1 | Request quote | |||
| 9 | BRACKETSN: A60001-UP-UP | 1 | Request quote | |||
| 10 | BOLT - BRACKET MOUNTINGSN: A60001-UP-UP | 4 | Request quote | |||
| 11 | CLIPSN: A60001-UP-UP | 2 | Request quote | |||
| 12 | CLIPSN: A60001-UP-UP | 1 | Request quote | |||
| 13 | CLIPSN: A60001-UP-UP | 3 | Request quote | |||
| 14 | SCREW - CLIP MOUNTINGSN: A60001-UP-UP | 6 | Request quote | |||
| 15 | WASHERSN: A60001-UP-UP | 6 | View product ↗ | |||
| 16 | BRACKETSN: A60001-UP-UP | 2 | Request quote | |||
| 17 | WASHERSN: A60001-UP-UP | 1 | View product ↗ | |||
| 18 | BOLTSN: A60001-UP-UP | 1 | View product ↗ | |||
| 19 | WASHERSN: A60001-UP-UP | 1 | View product ↗ | |||
| 20 | CLIPSN: A60001-UP-UP | 1 | Request quote | |||
| 21 | CLIPSN: A60001-UP-UP | 1 | Request quote | |||
| 22 | SCREWSN: A60001-UP-UP | 2 | Request quote | |||
| 23 | WASHERSN: A60001-UP-UP | 2 | View product ↗ | |||
| 24 | CLIPSN: A60001-UP-UP | 2 | Request quote | |||
| 25 | CLIPSN: A60001-UP-UP | 2 | Request quote | |||
| 26 | BOLTSN: A60001-UP-UP | 4 | Request quote | |||
| 27 | STRAP, TIESN: A60001-UP-UP | 10 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
OR
Using Komatsu WA500-1LC Wheel Loader Electrical System - Floor Line Parts
Use the Komatsu WA500-1LC Wheel Loader Electrical System - Floor Line Parts listing to identify aftermarket replacement parts within the electrical system section. This wheel loader application is listed for machine serial A60001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 29 listed part occurrences, including harness - floor line (reference 425-06-A2850), harness - to oil temperature sensor (reference 425-06-12270) and diode (reference 421-06-11970). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For electrical parts, compare the component reference and any voltage, connector or equipment-option notes shown in the listing. A similar description or shape alone is not a compatibility check.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
