Komatsu WA500-1LC Electrical System - Front Lamp Mounting Parts
Komatsu WA500-1LC electrical system - front lamp mounting parts for machine serial A60001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Electrical System / Electrical System - Front Lamp Mounting.
Checking current purchase options...

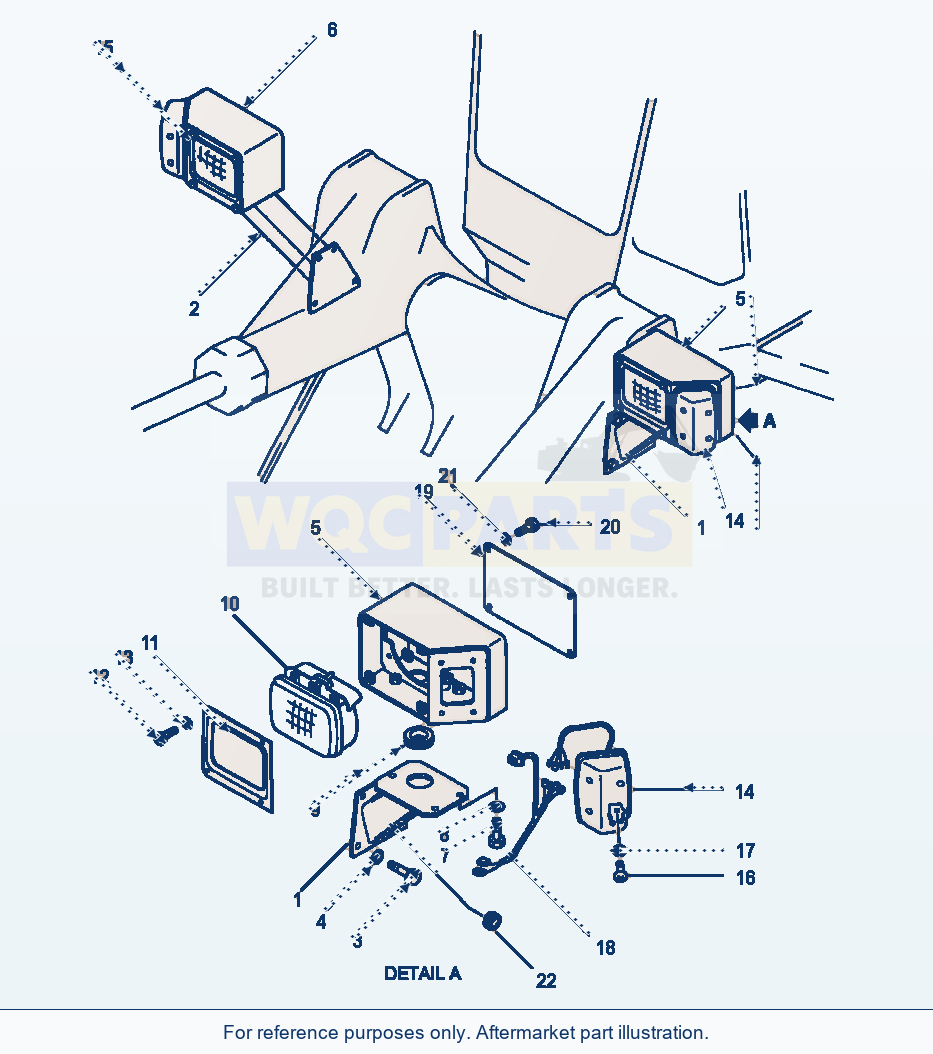

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 19 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | SUPPORT, L.H. - FRONT LIGHTSSN: A60001-UP-UP | 1 | Request quote | |||
| 2 | SUPPORT, R.H. - FRONT LIGHTSSN: A60001-UP-UP | 1 | Request quote | |||
| 3 | BOLT - SUPPORT MOUNTINGSN: A60001-UP-UP | 8 | Request quote | |||
| 4 | WASHERSN: A60001-UP-UP | 8 | View product ↗ | |||
| 5 | BRACKET, L.H. - FRONT LIGHTSSN: A60001-UP-UP | 1 | Request quote | |||
| 6 | BRACKET, R.H. - FRONT LIGHTSSN: A60001-UP-UP | 1 | Request quote | |||
| 7 | BOLT - BRACKET MOUNTINGSN: A60001-UP-UP | 6 | View product ↗ | |||
| 8 | WASHERSN: A60001-UP-UP | 6 | View product ↗ | |||
| 9 | GROMMETSN: A60001-UP-UP | 2 | Request quote | |||
| 11 | COVER, FRONT - DRIVING LIGHTSN: A60001-UP-UP | 2 | Request quote | |||
| 12 | BOLT - FRONT COVER MOUNTINGSN: A60001-UP-UP | 8 | View product ↗ | |||
| 13 | WASHERSN: A60001-UP-UP | 8 | View product ↗ | |||
| 16 | SCREW - TURN SIGNAL AND PARKINGLIGHT MOUNTINGSN: A60001-UP-UP | 8 | Request quote | |||
| 17 | WASHER, LOCKSN: A60001-UP-UP | 8 | View product ↗ | |||
| 18 | HARNESS - FRONT LAMPSSN: A60001-UP-UP | 2 | Request quote | |||
| 19 | COVER, REAR - FRONT DRIVING LIGHTSN: A60001-UP-UP | 2 | Request quote | |||
| 20 | BOLT - REAR COVER MOUNTINGSN: A60001-UP-UP | 8 | View product ↗ | |||
| 21 | WASHERSN: A60001-UP-UP | 8 | View product ↗ | |||
| 22 | GROMMETSN: A60001-UP-UP | 2 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
LIGHT - FRONT DRIVING(SEE FIG. E0301-01A0)
LIGHT, L.H. - TURN SIGNAL AND PARKING (SEE FIG. E0302-01A0)
LIGHT, R.H. - TURN SIGNAL AND PARKING (SEE FIG. E0303-01A0)
Using Komatsu WA500-1LC Electrical System - Front Lamp Mounting Parts
Use the Komatsu WA500-1LC Electrical System - Front Lamp Mounting Parts listing to identify aftermarket replacement parts within the electrical system section. This wheel loader application is listed for machine serial A60001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 19 listed part occurrences, including support, l.h. - front lights (reference 425-06-13112), support, r.h. - front lights (reference 425-06-13122) and bracket, l.h. - front lights (reference 419-06-13221). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For electrical parts, compare the component reference and any voltage, connector or equipment-option notes shown in the listing. A similar description or shape alone is not a compatibility check.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
