Komatsu WA500-1LC Wheel Loader Air Cleaner Parts
Komatsu WA500-1LC air cleaner parts for machine serial A60001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Engine Related Parts / Air Cleaner.
Checking current purchase options...

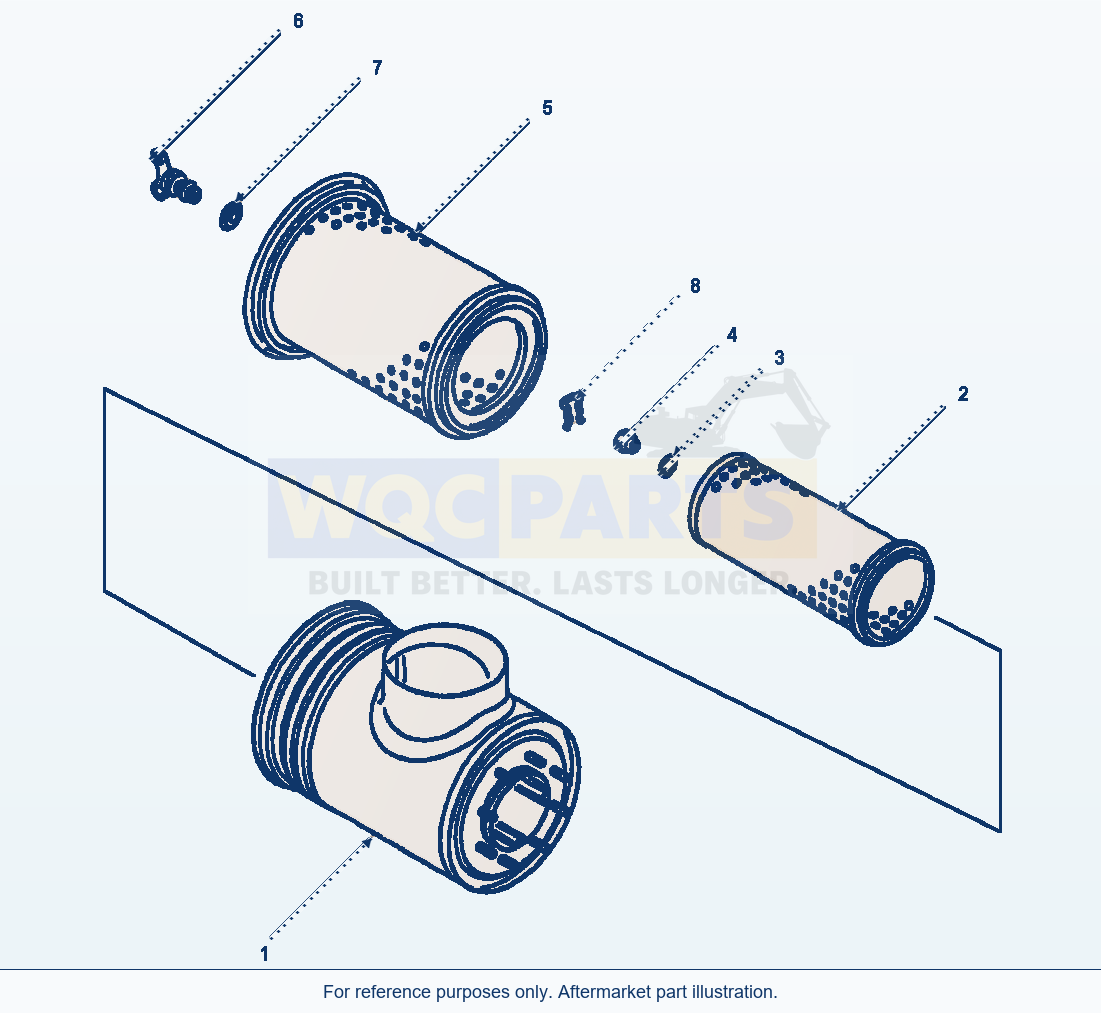

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 13 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | CLEANER ASSEMBLY, AIR - WITHOUT WEATHER CAPSN: A60001-UP-UP | 1 | Request quote | |||
| 4 | CLEANER ASSEMBLY, AIR - WITH WEATHERCAPSN: A60001-UP-UP | 1 | Request quote | |||
| 1 | BODY, AIR CLEANER - WITHOUT WEATHER CAPSN: A60001-UP-UP | 1 | Request quote | |||
| 1 | BODY, AIR CLEANER - WITH WEATHER CAPSN: A60001-UP-UP | 1 | Request quote | |||
| 10 | ELEMENT ASSEMBLY, AIR CLEANERSN: A60001-UP-UP | 1 | View product ↗ | |||
| 2 | ELEMENT, INNERSN: A60001-UP-UP | 1 | View product ↗ | |||
| 3 | WASHER, SEALSN: A60001-UP-UP | 1 | View product ↗ | |||
| 4 | NUTSN: A60001-UP-UP | 1 | Request quote | |||
| 14 | ELEMENT ASSEMBLY, OUTERSN: A60001-UP-UP | 1 | View product ↗ | |||
| 5 | ELEMENT, OUTERSN: A60001-UP-UP | 1 | Request quote | |||
| 6 | NUT, WINGSN: A60001-UP-UP | 1 | View product ↗ | |||
| 7 | GASKETSN: A60001-UP-UP | 1 | View product ↗ | |||
| 8 | CLIPSN: A60001-UP-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
OR
OR
Using Komatsu WA500-1LC Wheel Loader Air Cleaner Parts
Use the Komatsu WA500-1LC Wheel Loader Air Cleaner Parts listing to identify aftermarket replacement parts within the engine related parts section. This wheel loader application is listed for machine serial A60001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 13 listed part occurrences, including cleaner assembly, air - without weather cap (reference 6211-81-5210), cleaner assembly, air - with weathercap (reference 6127-82-7106) and body, air cleaner - without weather cap (reference 6211-81-5220). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
