Komatsu WA500-1LC Wheel Loader Front Frame Parts
Komatsu WA500-1LC front frame parts for machine serial A60001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Main/Revolving Frame And Related Parts / Front Frame.
Checking current purchase options...

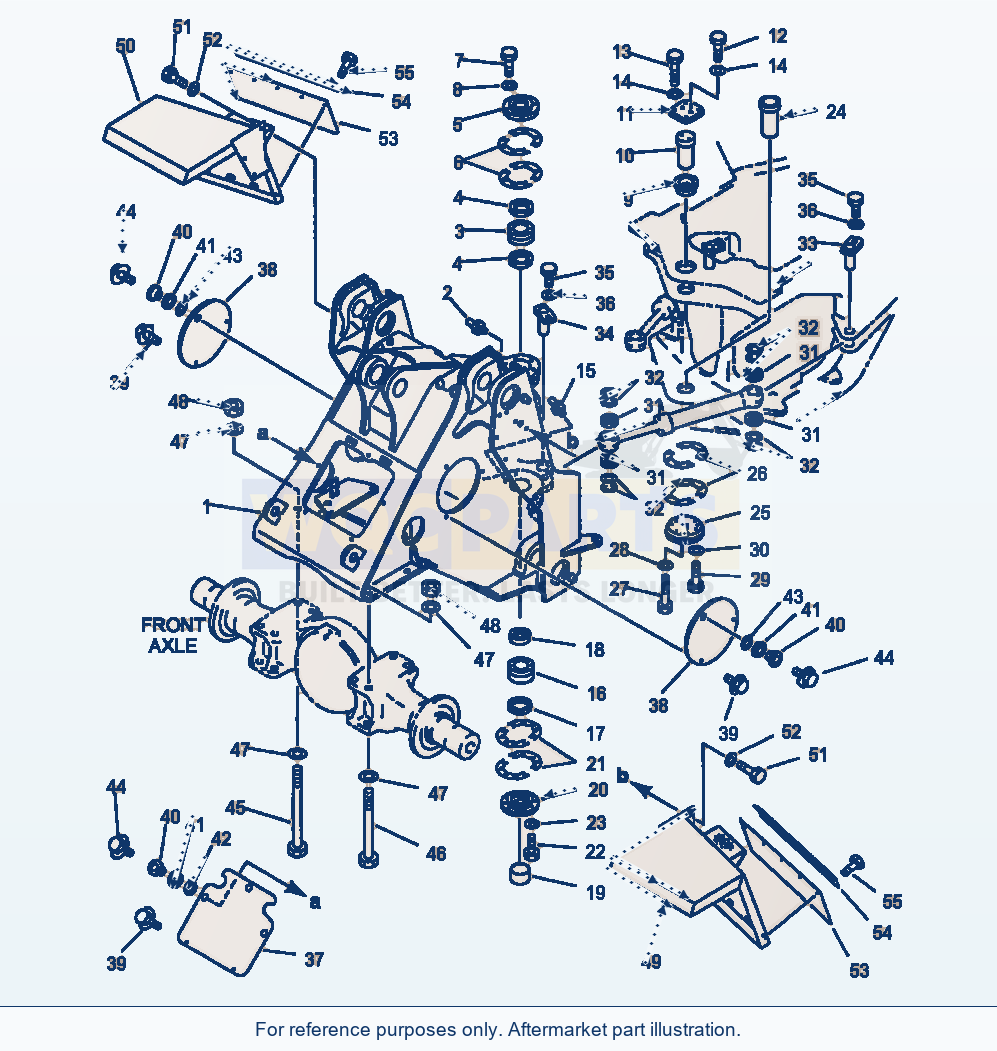

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 61 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | FRAME, FRONTSN: A60001-UP-UPF1 | 1 | Request quote | |||
| 1 | FRAME, FRONTSN: A60001-UP-UPF2 | 1 | Request quote | |||
| 1 | FRAME, FRONT - REWORKSN: A60001-UP-UPF3 | 1 | Request quote | |||
| 2 | FITTING, GREASE - UPPER HINGE PINSN: A60001-UP-UP | 1 | View product ↗ | |||
| 3 | BEARINGSN: A60001-UP-UP | 1 | Request quote | |||
| 4 | SEAL, DUSTSN: A60001-UP-UP | 2 | View product ↗ | |||
| 5 | RETAINER, CENTER HINGE - UPPERSN: A60001-UP-UP | 1 | Request quote | |||
| 6 | SHIM - 0.004 IN. (0.10 MM)SN: A60001-UP-UP | 8 | Request quote | |||
| 14 | SHIM - 0.020 IN. (0.50 MM)SN: A60001-UP-UP | 8 | Request quote | |||
| 7 | BOLT - UPPER CENTER HINGE RETAINERSN: A60001-UP-UP | 6 | View product ↗ | |||
| 8 | WASHERSN: A60001-UP-UP | 6 | View product ↗ | |||
| 9 | BUSHINGSN: A60001-UP-UP | 1 | View product ↗ | |||
| 10 | PIN, CENTER HINGE - UPPERSN: A60001-UP-UP | 1 | View product ↗ | |||
| 11 | PLATESN: A60001-UP-UP | 1 | Request quote | |||
| 12 | BOLTSN: A60001-UP-UP | 2 | View product ↗ | |||
| 13 | BOLTSN: A60001-UP-UP | 4 | View product ↗ | |||
| 14 | WASHERSN: A60001-UP-UP | 6 | View product ↗ | |||
| 15 | FITTING, GREASE - LOWER HINGE PINSN: A60001-UP-UP | 1 | View product ↗ | |||
| 16 | BEARINGSN: A60001-UP-UP | 1 | Request quote | |||
| 17 | SEALSN: A60001-UP-UP | 2 | View product ↗ | |||
| 18 | BUSHINGSN: A60001-UP-UP | 1 | View product ↗ | |||
| 19 | BUSHINGSN: A60001-UP-UP | 1 | View product ↗ | |||
| 20 | RETAINER, CENTER HINGE - LOWERSN: A60001-UP-UP | 1 | Request quote | |||
| 21 | SHIM - 0.004 IN. (0.10 MM)SN: A60001-UP-UP | 8 | Request quote | |||
| 30 | SHIM - 0.020 IN. (0.50 MM)SN: A60001-UP-UP | 8 | Request quote | |||
| 22 | BOLT - LOWER CENTER HINGE RETAINERSN: A60001-UP-UP | 10 | View product ↗ | |||
| 23 | WASHERSN: A60001-UP-UP | 10 | View product ↗ | |||
| 24 | PIN, CENTER HINGE - LOWERSN: A60001-UP-UP | 1 | View product ↗ | |||
| 25 | RETAINERSN: A60001-UP-UP | 1 | Request quote | |||
| 26 | SHIM - 0.004 IN. (0.10 MM)SN: A60001-UP-UP | 10 | View product ↗ | |||
| 36 | SHIM - 0.020 IN. (0.50 MM)SN: A60001-UP-UP | 16 | Request quote | |||
| 27 | BOLTSN: A60001-UP-UP | 4 | Request quote | |||
| 28 | WASHERSN: A60001-UP-UP | 4 | View product ↗ | |||
| 29 | BOLTSN: A60001-UP-UP | 6 | View product ↗ | |||
| 30 | WASHERSN: A60001-UP-UP | 6 | View product ↗ | |||
| 31 | SEAL, DUSTSN: A60001-UP-UP | 8 | View product ↗ | |||
| 32 | SHIM - 0.039 IN. (1.00 MM)SN: A60001-UP-UP | 16 | View product ↗ | |||
| 33 | PIN - STEERING CYLINDER MOUNTINGSN: A60001-UP-UP | 2 | View product ↗ | |||
| 34 | PIN - STEERING CYLINDER MOUNTINGSN: A60001-UP-UP | 2 | View product ↗ | |||
| 35 | BOLTSN: A60001-UP-UP | 4 | Request quote | |||
| 36 | WASHERSN: A60001-UP-UP | 4 | View product ↗ | |||
| 37 | COVER - FRONT ACCESSSN: A60001-UP-UPF2 | 1 | Request quote | |||
| 37 | COVER - FRONT ACCESSSN: A60001-UP-UPF1 | 1 | Request quote | |||
| 38 | COVER - SIDE ACCESSSN: A60001-UP-UP | 2 | Request quote | |||
| 39 | BOLT - ACCESS COVER MOUNTINGSN: A60001-UP-UP | 6 | View product ↗ | |||
| 40 | SPACERSN: A60001-UP-UP | 5 | Request quote | |||
| 41 | CUSHIONSN: A60001-UP-UP | 5 | Request quote | |||
| 42 | WASHERSN: A60001-UP-UP | 3 | Request quote | |||
| 43 | WASHERSN: A60001-UP-UP | 2 | View product ↗ | |||
| 44 | BOLT - ACCESS COVER MOUNTINGSN: A60001-UP-UP | 5 | View product ↗ | |||
| 45 | BOLT - FRONT AXLE MOUNTINGSN: A60001-UP-UP | 4 | View product ↗ | |||
| 46 | BOLT - FRONT AXLE MOUNTINGSN: A60001-UP-UP | 4 | View product ↗ | |||
| 47 | WASHER - FRONT AXLE MOUNTINGSN: A60001-UP-UP | 16 | View product ↗ | |||
| 48 | NUT - FRONT AXLE MOUNTINGSN: A60001-UP-UP | 8 | View product ↗ | |||
| 49 | FENDER - L.H. FRONTSN: A60001-UP-UP | 1 | Request quote | |||
| 50 | FENDER - R.H. FRONTSN: A60001-UP-UP | 1 | Request quote | |||
| 51 | BOLT - FENDER MOUNTINGSN: A60001-UP-UP | 6 | Request quote | |||
| 52 | WASHERSN: A60001-UP-UP | 6 | View product ↗ | |||
| 53 | RUBBER - FLAPSN: A60001-UP-UP | 2 | Request quote | |||
| 54 | PLATESN: A60001-UP-UP | 2 | Request quote | |||
| 55 | BOLT - RUBBER FLAP MOUNTINGSN: A60001-UP-UP | 10 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
OR
OR
OR
F1 - FOR MACHINES EQUIPPED WITH TWO-SPOOL EQUIPMENT CONTROL VALVE.
F2 - FOR MACHINES EQUIPPED WITH THREE-SPOOL EQUIPMENT CONTROL VALVE.
F3 - FOR MACHINES EQUIPPED WITH E.C.S.S.
Using Komatsu WA500-1LC Wheel Loader Front Frame Parts
Use the Komatsu WA500-1LC Wheel Loader Front Frame Parts listing to identify aftermarket replacement parts within the main/revolving frame and related parts section. This wheel loader application is listed for machine serial A60001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 61 listed part occurrences, including frame, front (reference 425-46-11103), frame, front (reference 425-877-1261) and frame, front - rework (reference 425-S99-1150). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
