Operator'S Compartment And Control System

Komatsu WA500-1LC Wheel Loader Work Equipment Control Levers Parts

Komatsu WA500-1LC work equipment control levers parts for machine serial A60001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.

Catalog configuration: Operator'S Compartment And Control System / Work Equipment Control Levers.

WA500-1LCMachine serial A60001-UP69 part occurrences

Checking current purchase options...

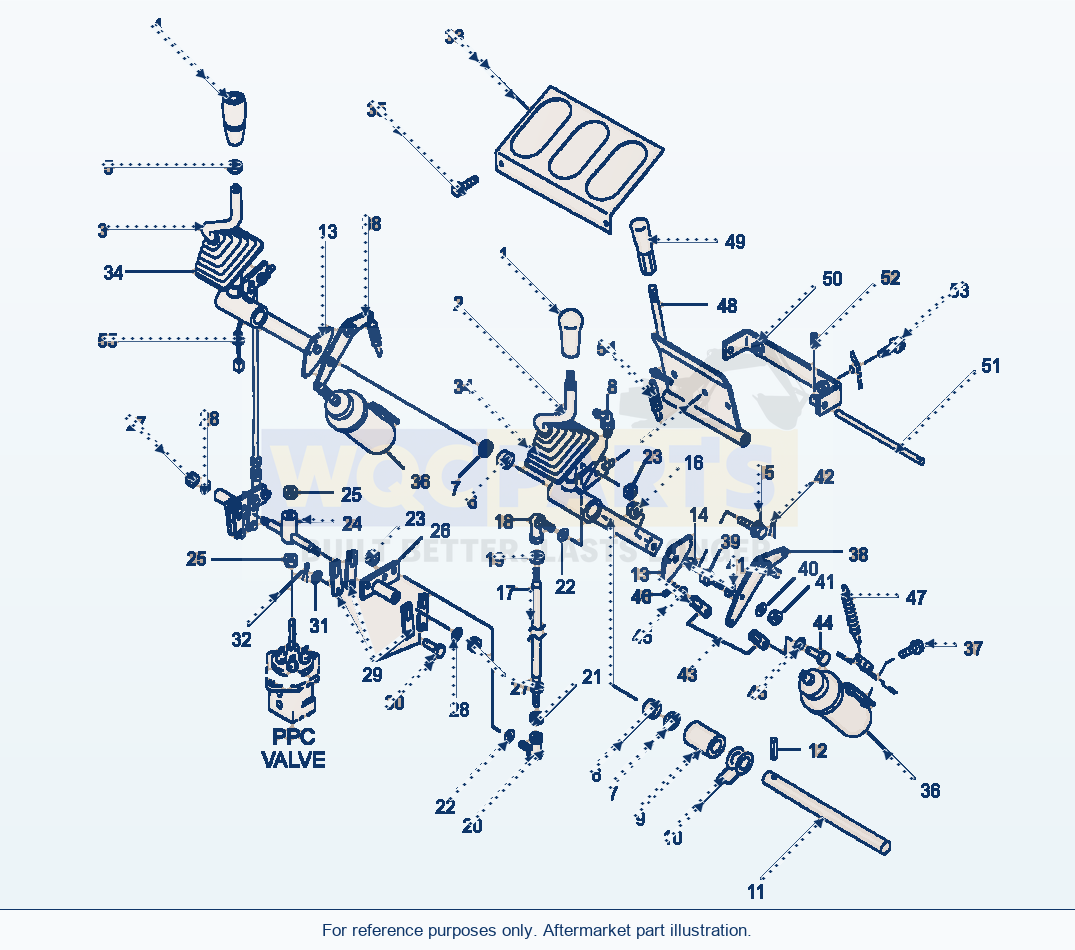

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.

Assembly parts

Showing all 69 part occurrences

Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.

Line	Description	Qty	Purchase options
1	KNOB - BUCKET LEVERSN: A60001-UP-UP	1	View product ↗
2	LEVER - BUCKETSN: A60001-UP-UP	1	Request quote
2	LEVER ASSEMBLY - LIFTSN: A60001-UP-UPF1	1	Request quote
3	LEVER - LIFTSN: A60001-UP-UPF1	1	Request quote
8	LEVER ASSEMBLY - LIFTSN: A60001-UP-UPF2	1	Request quote
3	LEVER - LIFTSN: A60001-UP-UPF2	1	Request quote
5	NUTSN: A60001-UP-UPF2	1	Request quote
6	BEARINGSN: A60001-UP-UP	4	View product ↗
7	SEAL - BEARINGSN: A60001-UP-UP	4	View product ↗
8	FITTING, GREASESN: A60001-UP-UP	3	View product ↗
9	SPACERSN: A60001-UP-UP	1	Request quote
10	SHIM - 0.039 IN. (1.0 MM)SN: A60001-UP-UP	5	Request quote
11	SHAFTSN: A60001-UP-UP	1	Request quote
12	PIN, SPRINGSN: A60001-UP-UP	1	Request quote
13	PLATE - DUMP CONTROLSN: A60001-UP-UP	1	Request quote
13	PLATE - LIFT CONTROLSN: A60001-UP-UP	1	Request quote
14	PIN, DOWELSN: A60001-UP-UP	4	View product ↗
15	BOLTSN: A60001-UP-UP	2	Request quote
16	NUTSN: A60001-UP-UP	2	Request quote
17	RODSN: A60001-UP-UP	2	Request quote
18	JOINT, ROD - L.H. THREADSN: A60001-UP-UP	2	Request quote
19	NUT - L.H. THREADSN: A60001-UP-UP	2	Request quote
20	JOINT - RODSN: A60001-UP-UP	2	Request quote
21	NUTSN: A60001-UP-UP	2	Request quote
22	WASHERSN: A60001-UP-UP	4	View product ↗
23	NUTSN: A60001-UP-UP	4	View product ↗
24	TRUNNIONSN: A60001-UP-UP	1	Request quote
25	NUTSN: A60001-UP-UP	2	Request quote
26	LEVER ASSEMBLY - R.H.SN: A60001-UP-UP	1	Request quote
37	PLATE - R.H.SN: A60001-UP-UP	1	Request quote
38	BUSHINGSN: A60001-UP-UP	2	Request quote
26	LEVER ASSEMBLY - L.H.SN: A60001-UP-UP	1	Request quote
40	PLATE - L.H.SN: A60001-UP-UP	1	Request quote
41	BUSHINGSN: A60001-UP-UP	2	Request quote
27	NUTSN: A60001-UP-UP	2	Request quote
28	WASHERSN: A60001-UP-UP	2	View product ↗
29	PLATESN: A60001-UP-UP	8	Request quote
30	PINSN: A60001-UP-UP	8	Request quote
31	WASHERSN: A60001-UP-UP	8	View product ↗
32	PIN, COTTERSN: A60001-UP-UP	8	Request quote
33	PLATESN: A60001-UP-UP	1	Request quote
34	BOOTSN: A60001-UP-UP	2	View product ↗
35	BOLTSN: A60001-UP-UP	2	Request quote
36	SOLENOID - WORK EQUIPMENT LEVERSSN: A60001-UP-UP	2	Request quote
52	BOOTSN: A60001-UP-UP	2	Request quote
53	GREASESN: A60001-UP-UP	2	Request quote
37	BOLT - FLANGEDSN: A60001-UP-UP	8	Request quote
38	LEVER ASSEMBLYSN: A60001-UP-UP	2	Request quote
56	LEVERSN: A60001-UP-UP	1	Request quote
57	BUSHINGSN: A60001-UP-UP	4	Request quote
39	BEARINGSN: A60001-UP-UP	2	Request quote
40	WASHERSN: A60001-UP-UP	4	View product ↗
41	NUTSN: A60001-UP-UP	2	Request quote
42	PIN, COTTERSN: A60001-UP-UP	2	Request quote
43	PLATESN: A60001-UP-UP	4	Request quote
44	PINSN: A60001-UP-UP	4	Request quote
45	WASHERSN: A60001-UP-UP	8	View product ↗
46	PINSN: A60001-UP-UP	4	Request quote
47	SPRINGSN: A60001-UP-UP	2	Request quote
48	LEVER ASSEMBLYSN: A60001-UP-UP	1	Request quote
68	LEVERSN: A60001-UP-UP	1	Request quote
69	BUSHINGSN: A60001-UP-UP	2	Request quote
49	KNOBSN: A60001-UP-UP	1	Request quote
50	BRACKETSN: A60001-UP-UP	1	Request quote
51	SHAFTSN: A60001-UP-UP	1	Request quote
52	PIN, SPRINGSN: A60001-UP-UP	1	Request quote
53	BOLTSN: A60001-UP-UP	2	View product ↗
54	SPRINGSN: A60001-UP-UP	1	Request quote
55	GROMMETSN: A60001-UP-UP	1	Request quote

Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.

Assembly notes

HANDLE ASSEMBLY - LIFT LEVER (SEE FIG. H0123-01A0)

HANDLE ASSEMBLY - LIFT LEVER (SEE FIG. H0124-01A0)

F1 - FOR MACHINES WITHOUT E.C.S.S.

F2 - FOR MACHINES WITH E.C.S.S.
