Komatsu WA500-1LE Electrical System Console Box, R.H. Parts
Komatsu WA500-1LE electrical system console box, r.h. parts for machine serial A61001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Engine Related Parts & Electrical System / Electrical System Console Box, R.H..
Checking current purchase options...

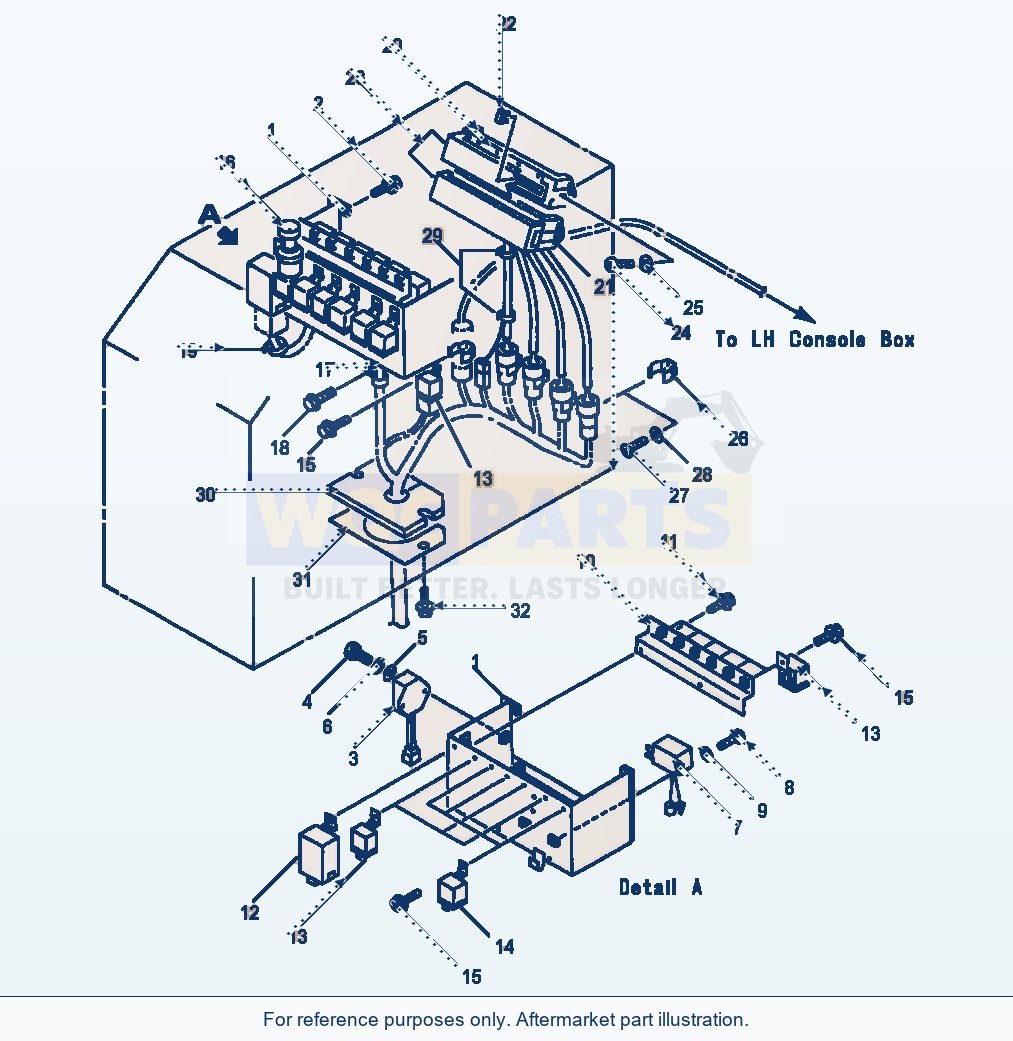

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 36 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | BOX, RELAY AND FLASHER | 1 | Request quote | |||
| 2 | BOLT, MOUNT BOX | 4 | Request quote | |||
| 3 | TIMER | 1 | Request quote | |||
| 4 | BOLT, MOUNT TIMER | 2 | View product ↗ | |||
| 5 | WASHER | 2 | View product ↗ | |||
| 6 | WASHER, LOCK | 2 | Request quote | |||
| 7 | BUZZER | 1 | Request quote | |||
| 8 | SCREW, MOUNT BUZZER | 2 | Request quote | |||
| 9 | WASHER | 2 | Request quote | |||
| 10 | PLATE, MOUNT RELAYS | 1 | Request quote | |||
| 11 | BOLT, MOUNT PLATE | 2 | Request quote | |||
| 12 | FLASHER | 1 | Request quote | |||
| 13 | RELAY | 10 | Request quote | |||
| 13 | BRACKET | 1 | Request quote | |||
| 14 | RELAY | 3 | View product ↗ | |||
| 15 | BRACKET | 1 | Request quote | |||
| 15 | BOLT, MOUNT RELAYS AND FLASHER | 14 | Request quote | |||
| 16 | LIGHTER, CIGAR | 1 | Request quote | |||
| 17 | CLIP | 1 | Request quote | |||
| 18 | BOLT, MOUNT CLIP | 1 | Request quote | |||
| 19 | STRAP, TIE | 5 | View product ↗ | |||
| 20 | BOX, FUSE | 1 | Request quote | |||
| 21 | BOX, FUSE | 1 | Request quote | |||
| 22 | FUSE, 5A | 2 | Request quote | |||
| 24 | FUSE, 10A | 23 | View product ↗ | |||
| 25 | FUSE, 20A | 7 | View product ↗ | |||
| 23 | COVER, FUSE BOX | 2 | Request quote | |||
| 24 | SCREW, MOUNT FUSE BOX | 4 | Request quote | |||
| 25 | WASHER | 4 | Request quote | |||
| 26 | CLIP | 5 | Request quote | |||
| 27 | SCREW, MOUNT CLIP | 5 | Request quote | |||
| 28 | WASHER | 5 | View product ↗ | |||
| 29 | STRAP, TIE | 2 | View product ↗ | |||
| 30 | SHEET | 1 | Request quote | |||
| 31 | PLATE | 1 | Request quote | |||
| 32 | BOLT, MOUNT PLATE | 2 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA500-1LE Electrical System Console Box, R.H. Parts
Use the Komatsu WA500-1LE Electrical System Console Box, R.H. Parts listing to identify aftermarket replacement parts within the engine related parts & electrical system section. This wheel loader application is listed for machine serial A61001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 36 listed part occurrences, including box, relay and flasher (reference 424-06-11732), timer (reference 423-06-11212) and buzzer (reference 207-06-31160). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For electrical parts, compare the component reference and any voltage, connector or equipment-option notes shown in the listing. A similar description or shape alone is not a compatibility check.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
