Komatsu WA500-1LE Wheel Loader Rear Work Light Parts
Komatsu WA500-1LE rear work light parts for machine serial A61001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Engine Related Parts & Electrical System / Rear Work Light.
Checking current purchase options...

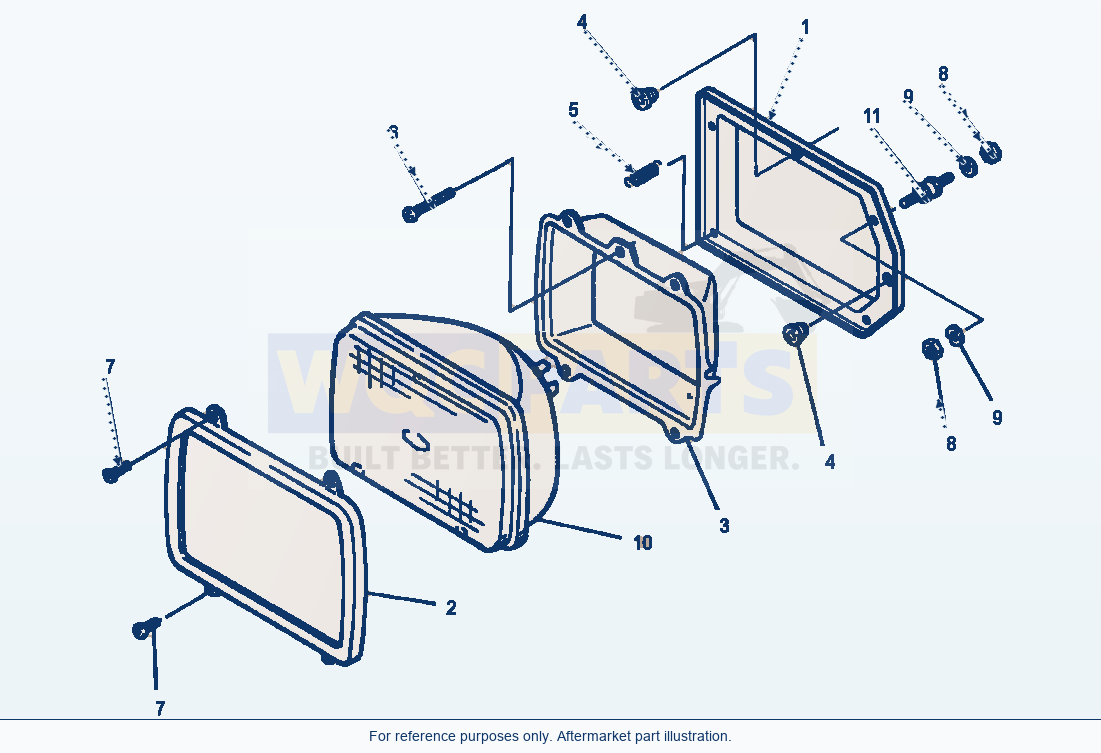

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 12 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | LIGHT, REAR WORK | 2 | Request quote | |||
| 1 | HOUSING | 1 | Request quote | |||
| 2 | RING, RETAINING | 1 | Request quote | |||
| 3 | RING, MOUNTING | 1 | Request quote | |||
| 4 | GROMMET | 2 | Request quote | |||
| 5 | SPRING | 1 | Request quote | |||
| 6 | SCREW, ADJUSTING | 2 | Request quote | |||
| 7 | SCREW, MOUNTING | 4 | Request quote | |||
| 8 | NUT, MOUNTING | 8 | Request quote | |||
| 9 | WASHER, MOUNTING | 8 | Request quote | |||
| 10 | BULB - 70W | 1 | Request quote | |||
| 11 | CUSHION | 4 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA500-1LE Wheel Loader Rear Work Light Parts
Use the Komatsu WA500-1LE Wheel Loader Rear Work Light Parts listing to identify aftermarket replacement parts within the engine related parts & electrical system section. This wheel loader application is listed for machine serial A61001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 12 listed part occurrences, including light, rear work (reference 421-06-13202), housing (reference NSS) and ring, retaining (reference NSS). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For electrical parts, compare the component reference and any voltage, connector or equipment-option notes shown in the listing. A similar description or shape alone is not a compatibility check.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
