Komatsu WA500-1LE Wheel Loader Front Frame Parts
Komatsu WA500-1LE front frame parts for machine serial A61001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Frame / Front Frame.
Checking current purchase options...

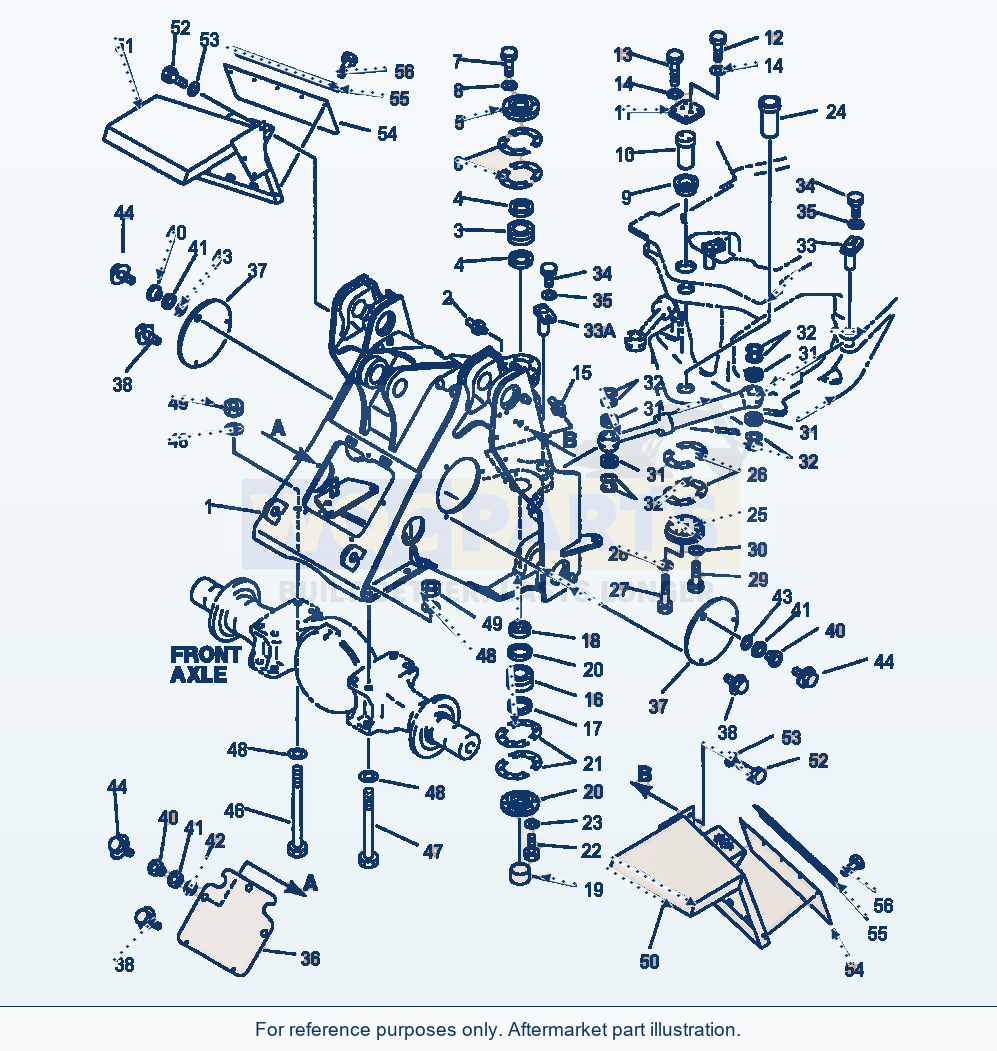

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 60 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | FRAME, FRONTF1 | 1 | Request quote | |||
| 1 | FRAME, FRONTF2 | 1 | Request quote | |||
| 2 | FITTING, GREASE (UPPER HINGE PIN) | 1 | View product ↗ | |||
| 3 | BEARING | 1 | Request quote | |||
| 4 | SEAL, DUST | 2 | View product ↗ | |||
| 5 | RETAINER, CENTER HINGE (UPPER) | 1 | Request quote | |||
| 6 | SHIM, 0.1MM | 8 | Request quote | |||
| 7 | SHIM, 0.5MM | 8 | Request quote | |||
| 7 | BOLT, CENTER HINGE RETAINER (UPPER) | 6 | View product ↗ | |||
| 8 | WASHER | 6 | View product ↗ | |||
| 9 | BUSHING | 1 | View product ↗ | |||
| 10 | PIN, CENTER HINGE (UPPER) | 1 | View product ↗ | |||
| 11 | PLATE | 1 | Request quote | |||
| 12 | BOLT | 2 | View product ↗ | |||
| 13 | BOLT | 4 | View product ↗ | |||
| 14 | WASHER | 6 | View product ↗ | |||
| 15 | FITTING, GREASE (LOWER HINGE PIN) | 1 | View product ↗ | |||
| 16 | BEARING | 1 | Request quote | |||
| 17 | SEAL | 2 | View product ↗ | |||
| 18 | BUSHING | 1 | View product ↗ | |||
| 19 | BUSHING | 1 | View product ↗ | |||
| 20 | RETAINER, CENTER HINGE (LOWER) | 1 | Request quote | |||
| 21 | SHIM, 0.1MM | 8 | Request quote | |||
| 23 | SHIM, 0.5MM | 8 | Request quote | |||
| 22 | BOLT, CENTER HINGE RETAINER (LOWER) | 10 | View product ↗ | |||
| 23 | WASHER | 10 | View product ↗ | |||
| 24 | PIN, CENTER HINGE (LOWER) | 1 | View product ↗ | |||
| 25 | RETAINER | 1 | Request quote | |||
| 26 | SHIM, 0.1MM | 10 | View product ↗ | |||
| 29 | SHIM, 0.5MM | 16 | Request quote | |||
| 27 | BOLT | 4 | Request quote | |||
| 28 | WASHER | 4 | View product ↗ | |||
| 29 | BOLT | 6 | View product ↗ | |||
| 30 | WASHER | 6 | View product ↗ | |||
| 31 | SEAL, DUST | 8 | View product ↗ | |||
| 32 | SHIM, 1.0MM | 16 | View product ↗ | |||
| 33 | PIN, MOUNT STEERING CYLINDERS | 2 | View product ↗ | |||
| 33A | PIN, MOUNT STEERING CYLINDERS | 2 | View product ↗ | |||
| 34 | BOLT | 4 | Request quote | |||
| 35 | WASHER | 4 | View product ↗ | |||
| 36 | COVER, FRONT ACCESS | 1 | Request quote | |||
| 41 | COVER, FRONT ACCESSF1 | 1 | Request quote | |||
| 37 | COVER, SIDE ACCESS | 2 | Request quote | |||
| 38 | BOLT, MOUNT ACCESS COVERS | 6 | View product ↗ | |||
| 40 | SPACER | 5 | Request quote | |||
| 41 | CUSHION | 5 | Request quote | |||
| 42 | WASHER | 3 | Request quote | |||
| 43 | WASHER | 2 | View product ↗ | |||
| 44 | BOLT, MOUNT ACCESS COVERS | 5 | View product ↗ | |||
| 46 | BOLT, FRONT AXLE MOUNTING | 4 | View product ↗ | |||
| 47 | BOLT, FRONT AXLE MOUNTING | 4 | View product ↗ | |||
| 48 | WASHER, FRONT AXLE MOUNTING | 16 | View product ↗ | |||
| 49 | NUT, FRONT AXLE MOUNTING | 8 | View product ↗ | |||
| 50 | FENDER, LH FRONT | 1 | Request quote | |||
| 51 | FENDER, RH FRONT | 1 | Request quote | |||
| 52 | BOLT, MOUNT FENDERS | 6 | Request quote | |||
| 53 | WASHER | 6 | View product ↗ | |||
| 54 | RUBBER, FLAP | 2 | Request quote | |||
| 55 | PLATE | 2 | Request quote | |||
| 56 | BOLT, MOUNT RUBBER FLAP | 10 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
NOT USED
NOT USED
F1 - FOR MACHINES EQUIPPED WITH 2-SPOOL EQUIPMENT
CONTROL VALVE
F2 - FOR MACHINES EQUIPPED WITH 3-SPOOL EQUIPMENT
CONTROL VALVE
Using Komatsu WA500-1LE Wheel Loader Front Frame Parts
Use the Komatsu WA500-1LE Wheel Loader Front Frame Parts listing to identify aftermarket replacement parts within the frame section. This wheel loader application is listed for machine serial A61001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 60 listed part occurrences, including frame, front (reference 425-46-11103), frame, front (reference 425-877-1261) and fitting, grease (upper hinge pin) (reference 07020-00000). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
