Komatsu WA500-1LE Wheel Loader Rear Frame Parts
Komatsu WA500-1LE rear frame parts for machine serial A61001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Frame / Rear Frame.
Checking current purchase options...

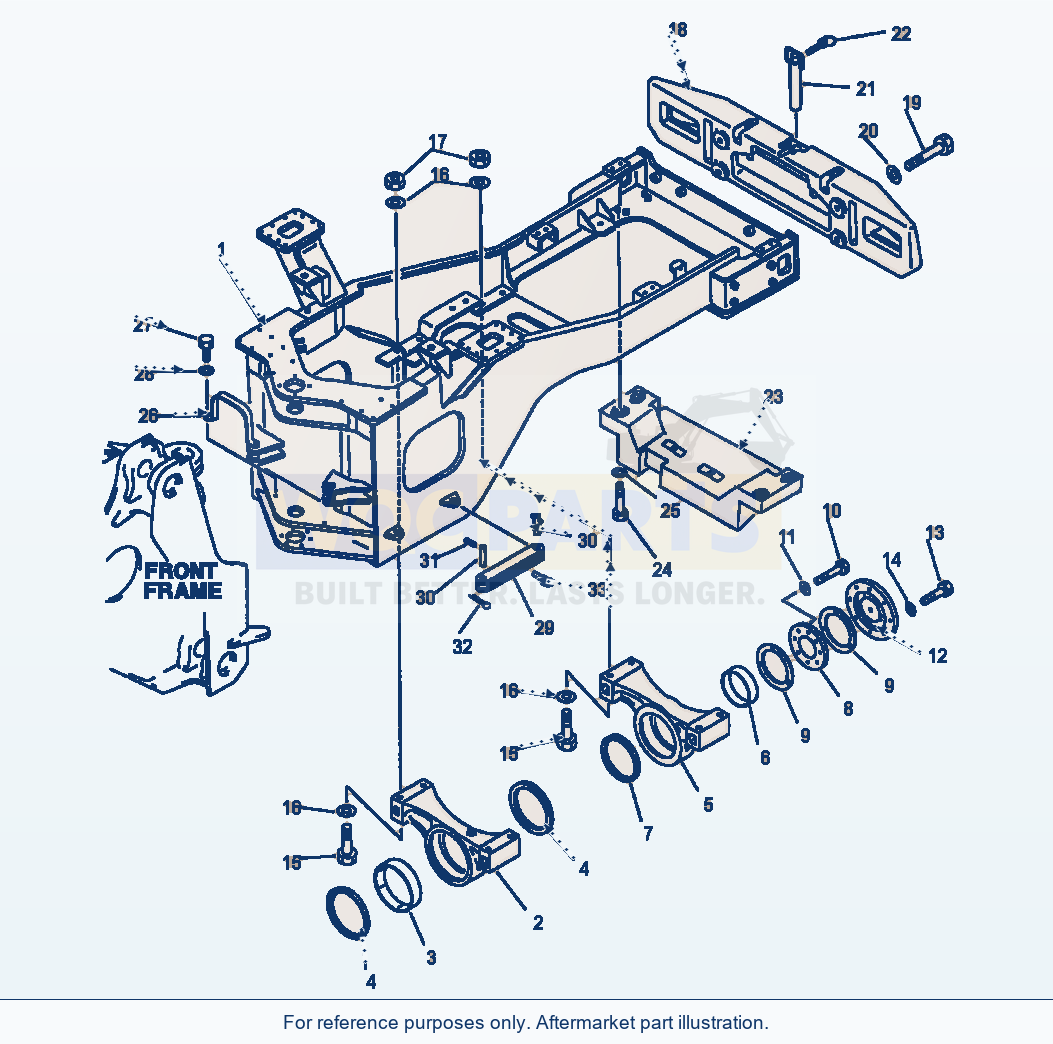

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 37 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | FRAME, REAR (FOR MACHINES W/O FOLLOWING OPTIONS:) | 1 | Request quote | |||
| 1 | FRAME, REAR (FOR MACHINES W/GROUND DRIVEN STEERNG) | 1 | Request quote | |||
| 2 | FRAME, REAR (FOR MACHINES W/LOGGING COUNTERWEIGHT) | 1 | Request quote | |||
| 3 | FRAME, REAR (FOR MACHINES W/ UNDERGUARD) | 1 | Request quote | |||
| 2 | SUPPORT, FRONT - REAR AXLE MOUNTING | 1 | Request quote | |||
| 3 | BUSHING | 1 | View product ↗ | |||
| 4 | PACKING | 2 | View product ↗ | |||
| 5 | SUPPORT, REAR - REAR AXLE MOUNTING | 1 | Request quote | |||
| 6 | BUSHING | 1 | View product ↗ | |||
| 7 | PACKING | 1 | View product ↗ | |||
| 8 | PLATE, THRUST | 1 | Request quote | |||
| 9 | WASHER, THRUST | 2 | View product ↗ | |||
| 10 | BOLT, MOUNT THRUST PLATE | 8 | View product ↗ | |||
| 11 | WASHER | 8 | View product ↗ | |||
| 12 | COVER | 1 | Request quote | |||
| 13 | BOLT, MOUNT COVER | 8 | View product ↗ | |||
| 14 | WASHER | 8 | View product ↗ | |||
| 15 | BOLT, MOUNT AXLE SUPPORTS | 8 | View product ↗ | |||
| 16 | WASHER | 16 | View product ↗ | |||
| 17 | NUT | 8 | View product ↗ | |||
| 18 | COUNTERWEIGHT | 1 | Request quote | |||
| 19 | BOLT, MOUNT COUNTERWEIGHT | 4 | Request quote | |||
| 20 | WASHER | 4 | View product ↗ | |||
| 21 | PIN, TOW | 1 | Request quote | |||
| 22 | PIN, LYNCH | 1 | Request quote | |||
| 23 | COVER | 1 | Request quote | |||
| 24 | BOLT, MOUNT COVER | 4 | View product ↗ | |||
| 25 | WASHER | 4 | View product ↗ | |||
| 26 | BRACKET (FOR MACHINES W/O GROUND DRIVEN STEERING) | 1 | Request quote | |||
| 29 | BRACKET (FOR MACHINES W/ GROUND DRIVEN STEERING) | 1 | Request quote | |||
| 27 | BOLT, MOUNT BRACKET | 2 | Request quote | |||
| 28 | WASHER | 2 | View product ↗ | |||
| 29 | BAR, FRAME LOCK | 1 | Request quote | |||
| 30 | PIN | 2 | Request quote | |||
| 31 | PIN, SPRING | 1 | Request quote | |||
| 32 | PIN, COTTER | 1 | Request quote | |||
| 33 | PIN, LYNCH | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA500-1LE Wheel Loader Rear Frame Parts
Use the Komatsu WA500-1LE Wheel Loader Rear Frame Parts listing to identify aftermarket replacement parts within the frame section. This wheel loader application is listed for machine serial A61001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 37 listed part occurrences, including frame, rear (for machines w/o following options:) (reference 425-46-12102), frame, rear (for machines w/ground driven steerng) (reference 425-875-1710) and frame, rear (for machines w/logging counterweight) (reference 425-974-A210). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
