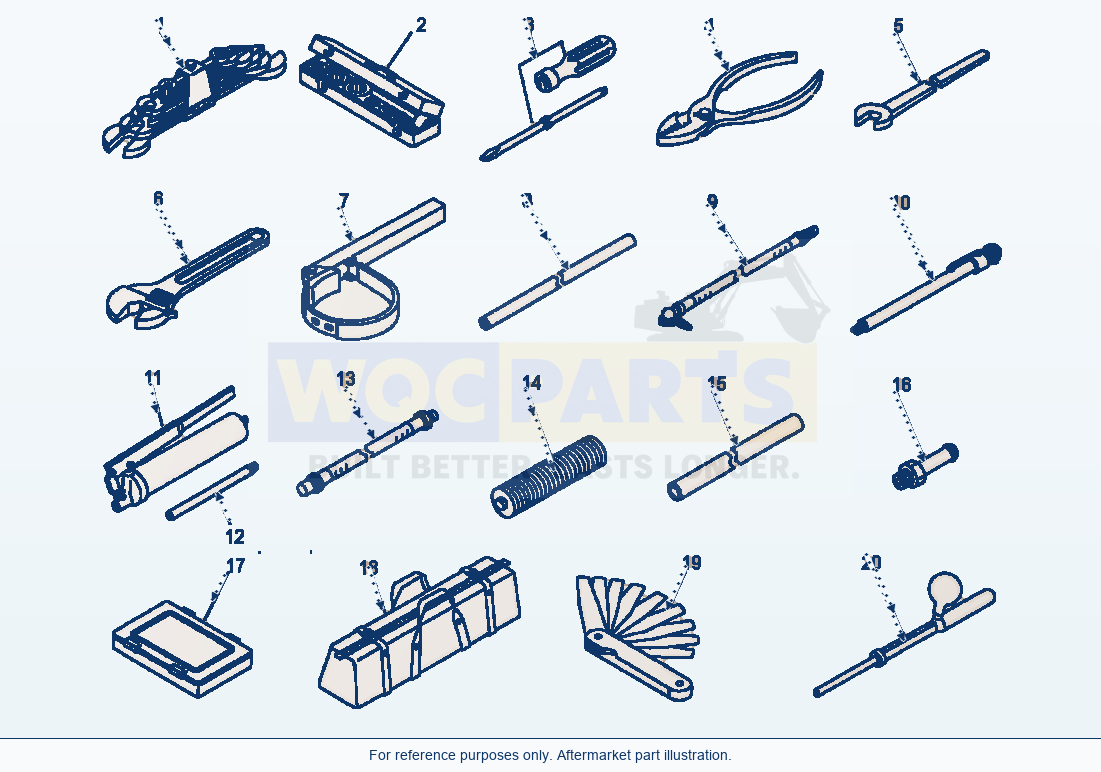

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 21 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | WRENCH SET, OPEN END | 1 | Request quote | |||
| 2 | WRENCH SET, SOCKET | 1 | Request quote | |||
| 3 | SCREW DRIVER | 1 | Request quote | |||
| 4 | PLIERS | 1 | Request quote | |||
| 5 | WRENCH, BOX END | 1 | Request quote | |||
| 6 | WRENCH, ADJUSTABLE | 1 | Request quote | |||
| 7 | WRENCH, OIL FILTER | 1 | Request quote | |||
| 8 | BAR, BREAKER | 1 | Request quote | |||
| 9 | HOSE, TIRE INFLATION | 1 | Request quote | |||
| 10 | GAUGE, TIRE PRESSURE | 1 | Request quote | |||
| 10 | PUMP ASSEMBLY, GREASE | 1 | Request quote | |||
| 11 | PUMP, GREASE | 1 | Request quote | |||
| 12 | NOZZLE, GREASE PUMP (NON-FLEXIBLE TYPE) | 1 | Request quote | |||
| 13 | NOZZLE, GREASE PUMP (FLEXIBLE TYPE) | 1 | Request quote | |||
| 14 | CARTRIDGE, GREASE | 1 | Request quote | |||
| 15 | TUBE | 1 | Request quote | |||
| 16 | NIPPLE | 1 | Request quote | |||
| 17 | BOX, BILL | 1 | Request quote | |||
| 18 | BAG, TOOL | 1 | Request quote | |||
| 19 | GAUGE, THICKNESS | 1 | Request quote | |||
| 20 | HYDROMETER | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
