Komatsu WA500-1LE Wheel Loader Transmission 2Nd Clutch Parts
Komatsu WA500-1LE transmission 2nd clutch parts for machine serial A61001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Torque Converter And Transmission / Transmission 2Nd Clutch.
Checking current purchase options...

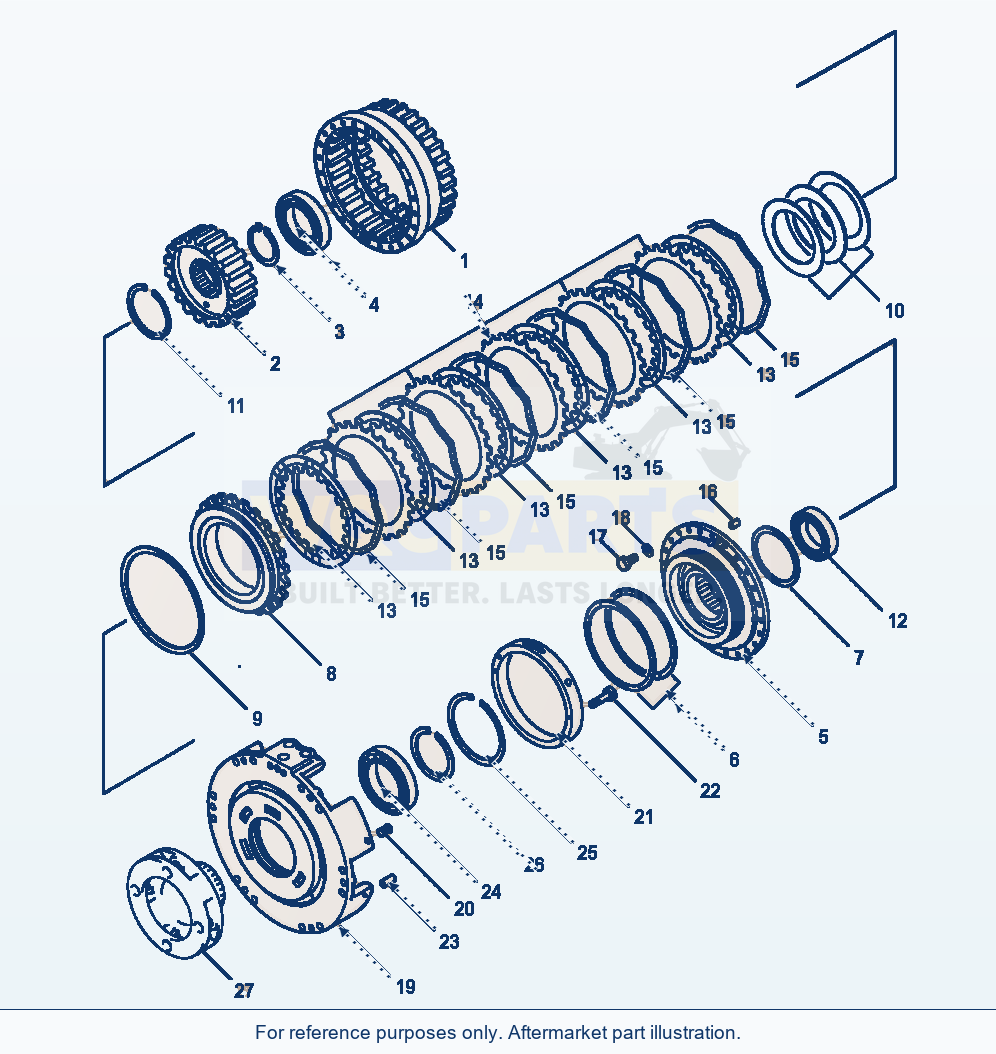

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 26 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | GEAR, RING - 2ND CLUTCH | 1 | Request quote | |||
| 2 | HUB | 1 | Request quote | |||
| 3 | RING, RETAINING | 1 | View product ↗ | |||
| 4 | BEARING | 1 | View product ↗ | |||
| 5 | HOUSING, 2ND CLUTCH | 1 | Request quote | |||
| 6 | RING, SEAL | 2 | View product ↗ | |||
| 7 | RING, SEAL - 2ND CLUTCH HOUSINGF1 | 1 | View product ↗ | |||
| 8 | PISTON, 2ND CLUTCH | 1 | Request quote | |||
| 9 | RING, SEAL - 2ND CLUTCH PISTONF1 | 1 | View product ↗ | |||
| 10 | SPRING | 3 | Request quote | |||
| 11 | RING, RETAINING | 1 | View product ↗ | |||
| 12 | BEARING | 1 | View product ↗ | |||
| 13 | DISC, 2ND CLUTCH | 6 | View product ↗ | |||
| 14 | PLATE, 2ND CLUTCH | 5 | Request quote | |||
| 15 | SPRING, 2ND CLUTCH DISC | 6 | Request quote | |||
| 16 | PIN, DOWEL | 2 | View product ↗ | |||
| 17 | BOLT | 22 | Request quote | |||
| 18 | WASHER | 22 | View product ↗ | |||
| 19 | HOUSING, 2ND CLUTCH | 1 | Request quote | |||
| 20 | SLEEVE | 17 | View product ↗ | |||
| 21 | COLLAR | 1 | Request quote | |||
| 22 | BOLT | 2 | Request quote | |||
| 23 | PIN, DOWEL | 2 | View product ↗ | |||
| 24 | BEARING | 1 | View product ↗ | |||
| 25 | RING, RETAINING | 1 | Request quote | |||
| 26 | RING, RETAINING | 1 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
TRANSMISSION ASSEMBLY (SEE PG 02-014)
CARRIER, 3RD CLUTCH (SEE PG 02-030)
SERVICE KIT, TRANSMISSION (SEE PG 02-054)
F1 - INCLUDED IN SERVICE KIT 425-15-05201.
Using Komatsu WA500-1LE Wheel Loader Transmission 2Nd Clutch Parts
Use the Komatsu WA500-1LE Wheel Loader Transmission 2Nd Clutch Parts listing to identify aftermarket replacement parts within the torque converter and transmission section. This wheel loader application is listed for machine serial A61001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 26 listed part occurrences, including gear, ring - 2nd clutch (reference 425-15-12630), hub (reference 425-15-12270) and ring, retaining (reference 04064-08530). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
When selecting transmission or torque-converter parts, compare the assembly description, machine serial break and any configuration notes. Similar-looking diagrams can cover different internal parts and should not be treated as interchangeable.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
