Komatsu WA500-1LE Wheel Loader Transmission 3Rd Clutch Parts
Komatsu WA500-1LE transmission 3rd clutch parts for machine serial A61001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Torque Converter And Transmission / Transmission 3Rd Clutch.
Checking current purchase options...

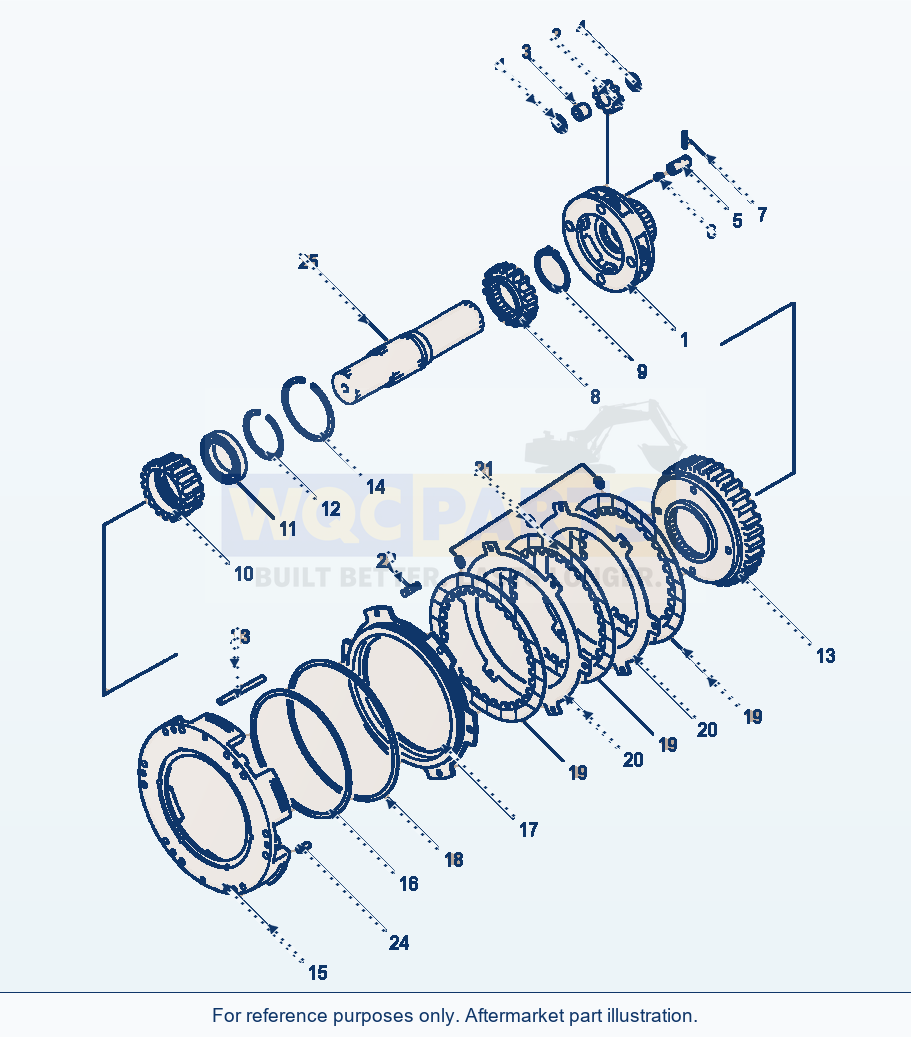

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 25 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | CARRIER | 1 | Request quote | |||
| 2 | GEAR | 4 | Request quote | |||
| 3 | BEARING | 4 | Request quote | |||
| 4 | WASHER, THRUST | 8 | View product ↗ | |||
| 5 | SHAFT ASSEMBLY, 3RD CLUTCH | 4 | Request quote | |||
| 5 | SHAFT | 1 | Request quote | |||
| 6 | PLUG | 1 | View product ↗ | |||
| 7 | PIN | 4 | Request quote | |||
| 8 | GEAR | 1 | Request quote | |||
| 9 | RING, RETAINING | 1 | View product ↗ | |||
| 10 | GEAR | 1 | Request quote | |||
| 11 | BEARING | 1 | View product ↗ | |||
| 12 | RING, RETAINING | 1 | Request quote | |||
| 13 | GEAR, RING - 3RD CLUTCH | 1 | Request quote | |||
| 14 | RING, RETAINING | 1 | View product ↗ | |||
| 15 | HOUSING, 3RD CLUTCH | 1 | Request quote | |||
| 16 | RING, SEAL - 3RD CLUTCH HOUSINGF1 | 1 | View product ↗ | |||
| 17 | PISTON, 3RD CLUTCH | 1 | Request quote | |||
| 18 | RING, SEAL - 3RD CLUTCH PISTONF1 | 1 | View product ↗ | |||
| 19 | DISC, 3RD CLUTCH | 3 | View product ↗ | |||
| 20 | PLATE, 3RD CLUTCH | 2 | View product ↗ | |||
| 21 | SPRING, 3RD CLUTCH DISC | 18 | View product ↗ | |||
| 22 | SPRING | 12 | Request quote | |||
| 23 | PIN | 6 | Request quote | |||
| 24 | PIN, DOWEL | 2 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
TRANSMISSION ASSEMBLY (SEE PG 02-014)
SHAFT ASSEMBLY, 1ST CLUTCH (SEE PG 02-032)
SERVICE KIT, TRANSMISSION (SEE PG 02-054)
F1 - INCLUDED IN SERVICE KIT 425-15-05201.
Using Komatsu WA500-1LE Wheel Loader Transmission 3Rd Clutch Parts
Use the Komatsu WA500-1LE Wheel Loader Transmission 3Rd Clutch Parts listing to identify aftermarket replacement parts within the torque converter and transmission section. This wheel loader application is listed for machine serial A61001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 25 listed part occurrences, including carrier (reference 425-15-12330), gear (reference 425-15-12430) and bearing (reference 425-15-19420). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
When selecting transmission or torque-converter parts, compare the assembly description, machine serial break and any configuration notes. Similar-looking diagrams can cover different internal parts and should not be treated as interchangeable.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
