Komatsu WA500-3 Wheel Loader Lamp And Fuse Parts
Komatsu WA500-3 lamp and fuse parts for machine serial 50001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Service Kits / Lamp And Fuse.
Checking current purchase options...

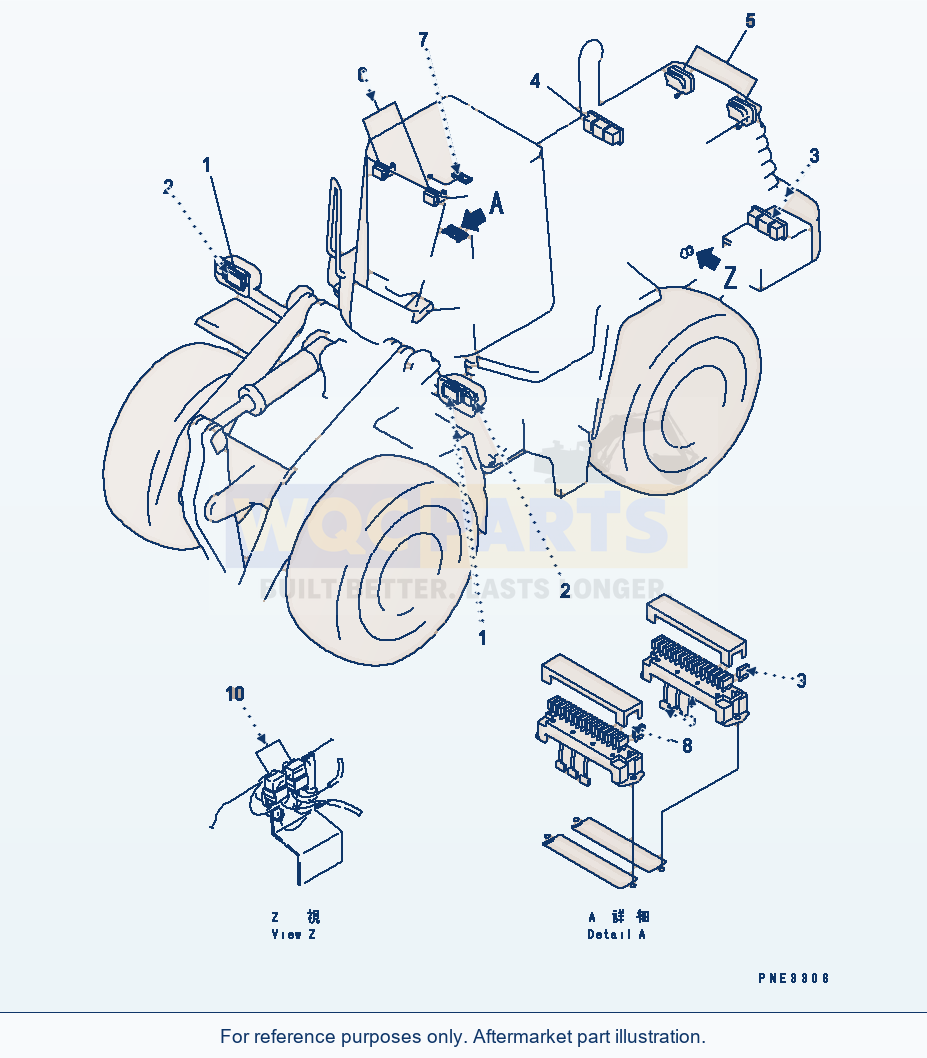

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 25 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | HEAD LAMP ASS'YSN: 50001-UP | 2 | Request quote | |||
| 1 | BULB, 75/70WSN: 50001-UP | 1 | Request quote | |||
| 2 | LAMP ASS'Y,COMBINATIONSN: 50001-UP | 2 | Request quote | |||
| 2 | BULB, 5WSN: 50001-UP | 1 | Request quote | |||
| 2 | BULB, 25WSN: 50001-UP | 1 | View product ↗ | |||
| 3 | LAMP ASS'Y,COMBINATION, L.H.SN: 50001-UP | 1 | View product ↗ | |||
| 3 | BULB, 25/10WSN: 50001-UP | 1 | View product ↗ | |||
| 3 | BULB, 25WSN: 50001-UP | 2 | View product ↗ | |||
| 4 | LAMP ASS'Y,COMBINATION, R.H.SN: 50001-UP | 1 | View product ↗ | |||
| 4 | BULB, 25/10WSN: 50001-UP | 1 | View product ↗ | |||
| 4 | BULB, 25WSN: 50001-UP | 2 | View product ↗ | |||
| 5 | LAMP ASS'YSN: 50001-UP | 2 | Request quote | |||
| 5 | BULB, 70WSN: 50001-UP | 1 | Request quote | |||
| 6 | LAMP ASS'Y,WORKSN: 50001-UP | 2 | Request quote | |||
| 6 | BULB, 70WSN: 50001-UP | 2 | Request quote | |||
| 7 | LAMP ASS'Y,ROOMSN: 50001-UP | 1 | Request quote | |||
| 7 | BULB, 10WSN: 50001-UP | 2 | Request quote | |||
| 8 | FUSE, 10ASN: 50001-UP | 12 | View product ↗ | |||
| 8 | FUSE, 20ASN: 50001-UP | 3 | View product ↗ | |||
| 9 | FUSE, 10ASN: 50001-UP | 9 | View product ↗ | |||
| 9 | FUSE, 20ASN: 50001-UP | 4 | View product ↗ | |||
| 9 | FUSE, 30ASN: 50001-UP | 1 | Request quote | |||
| 10 | FUSE, 80A,SLOW BLOWSN: 50001-UP | 1 | Request quote | |||
| 10 | FUSE, 30A,SLOW BLOWSN: 50001-UP | 1 | Request quote | |||
| 10 | FUSE, 120A,SLOW BLOWSN: 50001-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA500-3 Wheel Loader Lamp And Fuse Parts
Use the Komatsu WA500-3 Wheel Loader Lamp And Fuse Parts listing to identify aftermarket replacement parts within the service kits section. This wheel loader application is listed for machine serial 50001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 25 listed part occurrences, including head lamp ass'y (reference 424-06-23210), bulb, 75/70w (reference 424-06-23230) and lamp ass'y,combination (reference 41G-06-13201). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
