Komatsu WA500-3 Wheel Loader Wheel And Tubeless Tire Parts
Komatsu WA500-3 wheel and tubeless tire parts for machine serial 50001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Suspension, Wheels and Tires / Wheel And Tubeless Tire.
Checking current purchase options...

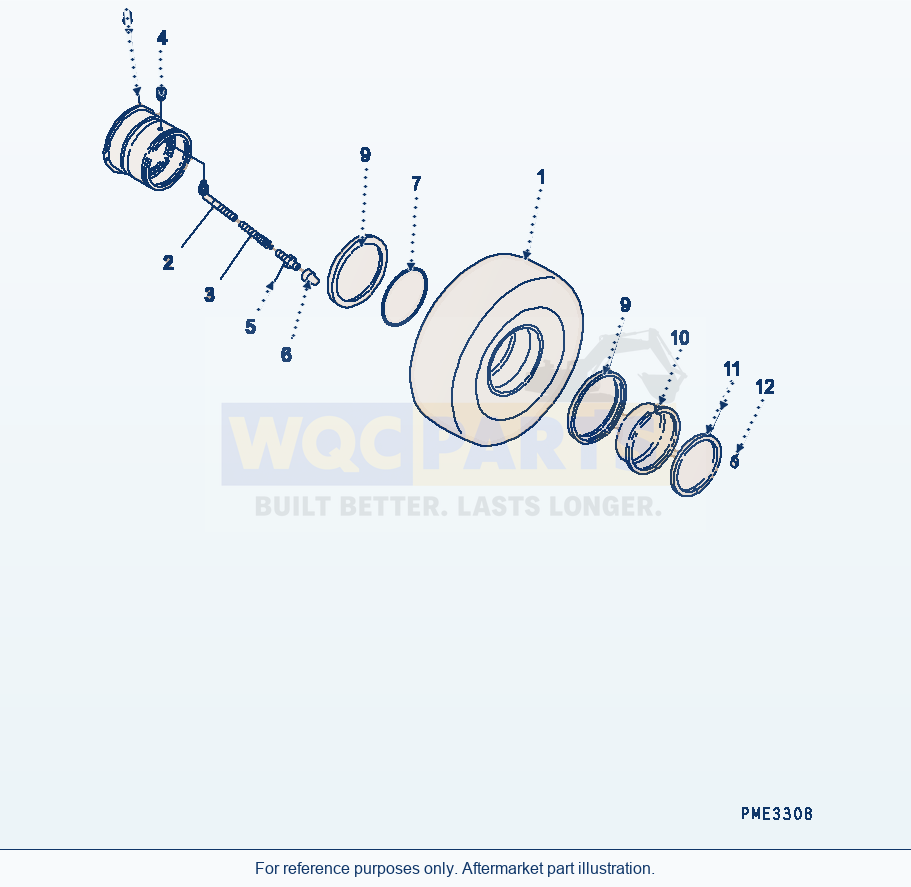

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 122 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | TIRESN: 50001-UP | 4 | Request quote | |||
| 2 | STEM,VALVESN: 50001-UP | 4 | Request quote | |||
| 3 | CORE,VALVESN: 50001-UP | 4 | Request quote | |||
| 4 | SEAT,VALVESN: 50001-UP | 4 | Request quote | |||
| 5 | ADAPTERSN: 50001-UP | 4 | Request quote | |||
| 6 | CAPSN: 50001-UP | 4 | Request quote | |||
| 1 | TIRESN: 50001-UP | 4 | Request quote | |||
| 2 | STEM,VALVESN: 50001-UP | 4 | Request quote | |||
| 3 | CORE,VALVESN: 50001-UP | 4 | Request quote | |||
| 4 | SEAT,VALVESN: 50001-UP | 4 | Request quote | |||
| 5 | ADAPTERSN: 50001-UP | 4 | Request quote | |||
| 6 | CAPSN: 50001-UP | 4 | Request quote | |||
| 1 | TIRESN: 50001-UP | 4 | Request quote | |||
| 2 | STEM,VALVESN: 50001-UP | 4 | Request quote | |||
| 3 | CORE,VALVESN: 50001-UP | 4 | Request quote | |||
| 4 | SEAT,VALVESN: 50001-UP | 4 | Request quote | |||
| 5 | ADAPTERSN: 50001-UP | 4 | Request quote | |||
| 6 | CAPSN: 50001-UP | 4 | Request quote | |||
| 1 | TIRESN: 50001-UP | 4 | Request quote | |||
| 2 | VALVESN: 50001-UP | 4 | Request quote | |||
| 2 | STEM,VALVESN: 50001-UP | 1 | Request quote | |||
| 3 | CORE,VALVESN: 50001-UP | 1 | Request quote | |||
| 4 | SEATSN: 50001-UP | 1 | Request quote | |||
| 5 | ADAPTERSN: 50001-UP | 1 | Request quote | |||
| 6 | CAPSN: 50001-UP | 1 | Request quote | |||
| 1 | TIRESN: 50001-UP | 4 | Request quote | |||
| 2 | VALVESN: 50001-UP | 4 | Request quote | |||
| 2 | STEM,VALVESN: 50001-UP | 1 | Request quote | |||
| 3 | CORE,VALVESN: 50001-UP | 1 | Request quote | |||
| 4 | SEATSN: 50001-UP | 1 | Request quote | |||
| 5 | ADAPTERSN: 50001-UP | 1 | Request quote | |||
| 6 | CAPSN: 50001-UP | 1 | Request quote | |||
| 1 | TIRESN: 50001-UP | 4 | Request quote | |||
| 2 | VALVESN: 50001-UP | 4 | Request quote | |||
| 2 | STEM,VALVESN: 50001-UP | 1 | Request quote | |||
| 3 | CORE,VALVESN: 50001-UP | 1 | Request quote | |||
| 4 | SEATSN: 50001-UP | 1 | Request quote | |||
| 5 | ADAPTERSN: 50001-UP | 1 | Request quote | |||
| 6 | CAPSN: 50001-UP | 1 | Request quote | |||
| 1 | TIRESN: 50001-UP | 4 | Request quote | |||
| 2 | VALVESN: 50001-UP | 4 | Request quote | |||
| 2 | STEM,VALVESN: 50001-UP | 1 | Request quote | |||
| 3 | CORE,VALVESN: 50001-UP | 1 | Request quote | |||
| 4 | SEATSN: 50001-UP | 1 | Request quote | |||
| 5 | ADAPTERSN: 50001-UP | 1 | Request quote | |||
| 6 | CAPSN: 50001-UP | 1 | Request quote | |||
| 1 | TIRESN: 50001-UP | 4 | Request quote | |||
| 2 | VALVESN: 50001-UP | 4 | Request quote | |||
| 2 | STEM,VALVESN: 50001-UP | 1 | Request quote | |||
| 3 | CORE,VALVESN: 50001-UP | 1 | Request quote | |||
| 4 | SEATSN: 50001-UP | 1 | Request quote | |||
| 5 | ADAPTERSN: 50001-UP | 1 | Request quote | |||
| 6 | CAPSN: 50001-UP | 1 | Request quote | |||
| 1 | TIRESN: 50001-UP | 4 | Request quote | |||
| 2 | VALVESN: 50001-UP | 4 | Request quote | |||
| 2 | STEM,VALVESN: 50001-UP | 1 | Request quote | |||
| 3 | CORE,VALVESN: 50001-UP | 1 | Request quote | |||
| 4 | SEATSN: 50001-UP | 1 | Request quote | |||
| 5 | ADAPTERSN: 50001-UP | 1 | Request quote | |||
| 6 | CAPSN: 50001-UP | 1 | Request quote | |||
| 1 | TIRESN: 50001-UP | 4 | Request quote | |||
| 2 | VALVESN: 50001-UP | 4 | Request quote | |||
| 2 | STEM,VALVESN: 50001-UP | 1 | Request quote | |||
| 3 | CORE,VALVESN: 50001-UP | 1 | Request quote | |||
| 4 | SEATSN: 50001-UP | 1 | Request quote | |||
| 5 | ADAPTERSN: 50001-UP | 1 | Request quote | |||
| 6 | CAPSN: 50001-UP | 1 | Request quote | |||
| 1 | TIRESN: 50001-UP | 4 | Request quote | |||
| 2 | VALVESN: 50001-UP | 4 | Request quote | |||
| 2 | STEM,VALVESN: 50001-UP | 1 | Request quote | |||
| 3 | CORE,VALVESN: 50001-UP | 1 | Request quote | |||
| 4 | SEATSN: 50001-UP | 1 | Request quote | |||
| 5 | ADAPTERSN: 50001-UP | 1 | Request quote | |||
| 6 | CAPSN: 50001-UP | 1 | Request quote | |||
| 1 | TIRESN: 50001-UP | 4 | Request quote | |||
| 2 | VALVESN: 50001-UP | 4 | Request quote | |||
| 2 | STEM,VALVESN: 50001-UP | 1 | Request quote | |||
| 3 | CORE,VALVESN: 50001-UP | 1 | Request quote | |||
| 4 | SEATSN: 50001-UP | 1 | Request quote | |||
| 5 | ADAPTERSN: 50001-UP | 1 | Request quote | |||
| 6 | CAPSN: 50001-UP | 1 | Request quote | |||
| 1 | TIRESN: 50001-UP | 4 | Request quote | |||
| 2 | VALVESN: 50001-UP | 4 | Request quote | |||
| 2 | STEM,VALVESN: 50001-UP | 1 | Request quote | |||
| 3 | CORE,VALVESN: 50001-UP | 1 | Request quote | |||
| 4 | SEATSN: 50001-UP | 1 | Request quote | |||
| 5 | ADAPTERSN: 50001-UP | 1 | Request quote | |||
| 6 | CAPSN: 50001-UP | 1 | Request quote | |||
| 1 | TIRESN: 50001-UP | 4 | Request quote | |||
| 2 | VALVESN: 50001-UP | 4 | Request quote | |||
| 2 | STEM,VALVESN: 50001-UP | 1 | Request quote | |||
| 3 | CORE,VALVESN: 50001-UP | 1 | Request quote | |||
| 4 | SEATSN: 50001-UP | 1 | Request quote | |||
| 5 | ADAPTERSN: 50001-UP | 1 | Request quote | |||
| 6 | CAPSN: 50001-UP | 1 | Request quote | |||
| 1 | TIRESN: 50001-UP | 4 | Request quote | |||
| 2 | VALVESN: 50001-UP | 4 | Request quote | |||
| 2 | STEM,VALVESN: 50001-UP | 1 | Request quote | |||
| 3 | CORE,VALVESN: 50001-UP | 1 | Request quote | |||
| 4 | SEATSN: 50001-UP | 1 | Request quote | |||
| 5 | ADAPTERSN: 50001-UP | 1 | Request quote | |||
| 6 | CAPSN: 50001-UP | 1 | Request quote | |||
| 1 | TIRESN: 50001-UP | 4 | Request quote | |||
| 2 | VALVESN: 50001-UP | 4 | Request quote | |||
| 2 | STEM,VALVESN: 50001-UP | 1 | Request quote | |||
| 3 | CORE,VALVESN: 50001-UP | 1 | Request quote | |||
| 4 | SEATSN: 50001-UP | 1 | Request quote | |||
| 5 | ADAPTERSN: 50001-UP | 1 | Request quote | |||
| 6 | CAPSN: 50001-UP | 1 | Request quote | |||
| 7 | O-RINGSN: 50001-UP | 4 | Request quote | |||
| 8 | RIM ASS'YSN: 50001-UP | 4 | Request quote | |||
| 8 | BASE,RIMSN: 50001-UP | 1 | Request quote | |||
| 9 | RING,SIDESN: 50001-UP | 2 | Request quote | |||
| 10 | BANDSN: 50001-UP | 1 | Request quote | |||
| 11 | RING,LOCKSN: 50001-UP | 1 | Request quote | |||
| 12 | DRIVERSN: 50001-UP | 1 | Request quote | |||
| 8 | RIM ASS'YSN: 50001-UP | 4 | Request quote | |||
| 8 | BASE,RIMSN: 50001-UP | 1 | Request quote | |||
| 9 | RING,SIDESN: 50001-UP | 2 | Request quote | |||
| 10 | BANDSN: 50001-UP | 1 | Request quote | |||
| 11 | RING,LOCKSN: 50001-UP | 1 | Request quote | |||
| 12 | DRIVERSN: 50001-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
TIRE
26.5-25-20PR-L3
BRIDGESTONE
TOYO
YOKOHAMA
SIDE STEEL BREAKER
26.5-25-20PR-L3
BRIDGESTONE
TOYO
26.5-25-20PR-L4
BRIDGESTONE
YOKOHAMA
TOYO
26.5-25-24PR-L3
BRIDGESTONE
26.5-25-20PR-L5
BRIDGESTONE
TOYO
29.5-25-22PR-L3
BRIDGESTONE
TOYO
YOKOHAMA
STEEL BREAKER TIRE
29.5-25-22PR-L3
BRIDGESTONE
29.5-25-22PR-L5
BRIDGESTONE
WHEEL
FOR 26.5-25
FOR 29.5-25
Using Komatsu WA500-3 Wheel Loader Wheel And Tubeless Tire Parts
Use the Komatsu WA500-3 Wheel Loader Wheel And Tubeless Tire Parts listing to identify aftermarket replacement parts within the suspension, wheels and tires section. This wheel loader application is listed for machine serial 50001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 122 listed part occurrences, including tire (reference 425-30-11120), stem,valve (reference 09280-10130) and core,valve (reference 09281-00041). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
