Komatsu WA500-3L Air Conditioner Air Conditioner Kit Parts
Komatsu WA500-3L air conditioner air conditioner kit parts for machine serial A70001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Cab / Controls / Air Conditioner Air Conditioner Kit.
Checking current purchase options...

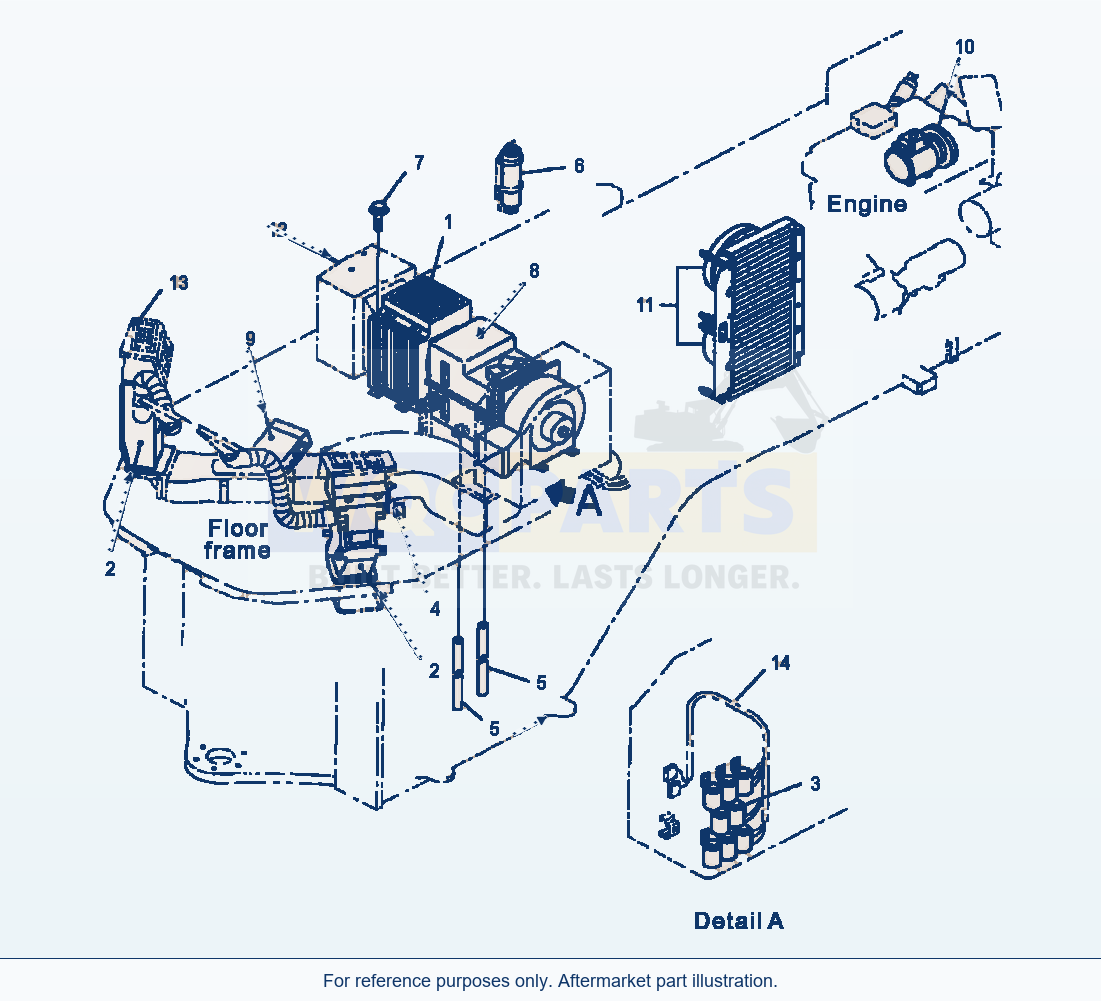

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 8 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | KIT, ND A/CSN: A70001 --UP | 1 | Request quote | |||
| 1 | KIT, SUB A/CSN: A70001 --UP | 1 | Request quote | |||
| 3 | RELAYSN: A70001 --UP | 8 | Request quote | |||
| 4 | CAPSN: A70001 --UP | 2 | Request quote | |||
| 5 | HOSE, DRAINSN: A70001 --UP | 2 | Request quote | |||
| 6 | RECEIVER TANKSN: A70001 --UP | 1 | View product ↗ | |||
| 7 | BOLTSN: A70001 --UP | 2 | Request quote | |||
| 9 | CONTROLLER, AIR CONDITIONERSN: A70001 --UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
DAMPER ASSEMBLY (SEE FIG. K0710-03A0 )
DUCT ASSEMBLY, AIR (SEE FIG. K0710-04A0 )
AIR CONDITIONER UNIT (SEE FIG. K0710-05A0 )
COMPRESSOR ASSEMBLY, A-TYPE (SEE FIG. K0710-06A0 )
CONDENSER ASSEMBLY (SEE FIG. K0710-07A0 )
FILTER BOX ASSEMBLY (SEE FIG. K0710-02A0 )
GRILLE (SEE FIG. K0712-01A0 )
HARNESS (SEE FIG. K0711-02A0 )
Using Komatsu WA500-3L Air Conditioner Air Conditioner Kit Parts
Use the Komatsu WA500-3L Air Conditioner Air Conditioner Kit Parts listing to identify aftermarket replacement parts within the cab / controls section. This wheel loader application is listed for machine serial A70001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 8 listed part occurrences, including kit, nd a/c (reference 425-07-21201), kit, sub a/c (reference 425-07-21132) and relay (reference 425-07-21160). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For operator-compartment and control parts, compare the cab arrangement and equipment options identified on the assembly page. Retain any handedness and connection details when selecting a part or requesting assistance.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
