Komatsu WA500-3L Transmission Assembly Control Valve Assembly Parts
Komatsu WA500-3L transmission assembly control valve assembly parts for machine serial A70001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Power Train and Final Drives / Transmission Assembly Control Valve Assembly.
Checking current purchase options...

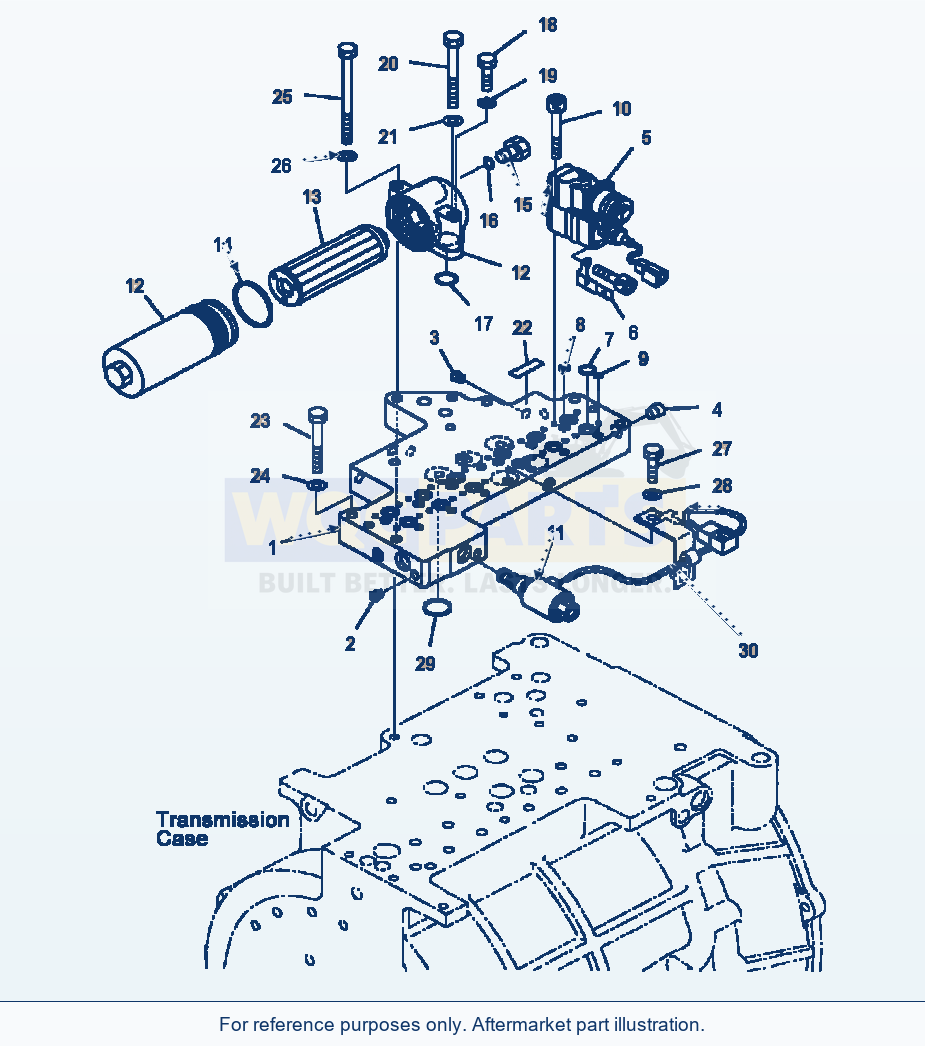

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 31 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | VALVE ASSEMBLY, TRANSMISSION CONTROLSN: A70001 --UP | 1 | Request quote | |||
| 1 | SEATSN: A70001 --UP | 1 | Request quote | |||
| 2 | PLUGSN: A70001 --UP | 2 | View product ↗ | |||
| 3 | PLUGSN: A70001 --UP | 7 | View product ↗ | |||
| 4 | PLUGSN: A70001 --UP | 2 | View product ↗ | |||
| 6 | EMCV ASSEMBLYSN: A70001 --UP | 6 | Request quote | |||
| 5 | EMCV GROUPSN: A70001 --UP | 1 | Request quote | |||
| 6 | BRACKETSN: A70001 --UP | 1 | Request quote | |||
| 7 | O-RINGSN: A70001 --UPF1 | 12 | Request quote | |||
| 8 | O-RINGSN: A70001 --UPF1 | 6 | View product ↗ | |||
| 9 | O-RINGSN: A70001 --UPF1 | 6 | View product ↗ | |||
| 10 | BOLTSN: A70001 --UP | 24 | Request quote | |||
| 11 | VALVE, SOLENOIDSN: A70001 --UP | 1 | View product ↗ | |||
| 12 | FILTER ASSEMBLYSN: A70001 --UP | 1 | Request quote | |||
| 13 | ELEMENT ASSEMBLYSN: A70001 --UP | 1 | Request quote | |||
| 14 | O-RINGSN: A70001 --UPF1 | 1 | View product ↗ | |||
| 15 | PLUGSN: A70001 --UP | 1 | Request quote | |||
| 16 | O-RINGSN: A70001 --UP | 1 | View product ↗ | |||
| 17 | O-RINGSN: A70001 --UPF1 | 2 | View product ↗ | |||
| 18 | BOLTSN: A70001 --UP | 1 | Request quote | |||
| 19 | WASHERSN: A70001 --UP | 1 | View product ↗ | |||
| 20 | BOLTSN: A70001 --UP | 1 | Request quote | |||
| 21 | WASHERSN: A70001 --UP | 1 | View product ↗ | |||
| 22 | PLATE, NAMESN: A70001 --UP | 1 | Request quote | |||
| 23 | BOLTSN: A70001 --UP | 7 | Request quote | |||
| 24 | WASHERSN: A70001 --UP | 7 | View product ↗ | |||
| 25 | BOLTSN: A70001 --UP | 1 | Request quote | |||
| 26 | WASHERSN: A70001 --UP | 1 | View product ↗ | |||
| 27 | BOLTSN: A70001 --UP | 1 | Request quote | |||
| 28 | WASHERSN: A70001 --UP | 1 | View product ↗ | |||
| 29 | O-RINGSN: A70001 --UPF2 | 5 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
TRANSMISSION ASSEMBLY (SEE FIG. F4320-51A0 )
BRACKET (SEE FIG. F4320-63A0 )
F2 - INCLUDED IN SERVICE KIT 425-15-05412.
F2 - INCLUDED IN SERVICE KIT 425-15-05412.
Using Komatsu WA500-3L Transmission Assembly Control Valve Assembly Parts
Use the Komatsu WA500-3L Transmission Assembly Control Valve Assembly Parts listing to identify aftermarket replacement parts within the power train and final drives section. This wheel loader application is listed for machine serial A70001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 31 listed part occurrences, including valve assembly, transmission control (reference 425-15-25001), seat (reference 425-15-25130) and plug (reference 07043-00108). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
